"RingBuffer" (Data Structure)

"RingBuffer"

represents a ring buffer where the elements are general expressions.

Details

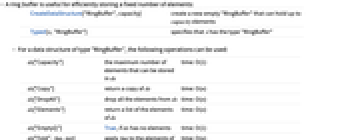

  • A ring buffer is useful for efficiently storing a fixed number of elements:
  • CreateDataStructure["RingBuffer",capacity]create a new empty "RingBuffer" that can hold up to capacity elements
    Typed[x,"RingBuffer"]specifies that x has the type "RingBuffer"
  • For a data structure of type "RingBuffer", the following operations can be used:
  • ds["Capacity"]the maximum number of elements that can be stored in dstime: O(1)
    ds["Copy"]return a copy of dstime: O(n)
    ds["DropAll"]drop all the elements from dstime: O(n)
    ds["Elements"]return a list of the elements of dstime: O(n)
    ds["EmptyQ"]True, if ds has no elementstime: O(1)
    		ds["Fold",fun]apply fun to the elements of ds, accumulating a resulttime: O(n)
    ds["Fold",fun,init]apply fun to the elements of ds, starting with init, accumulating a resulttime: O(n)
    ds["Length"]the number of elements stored in dstime: O(1)
    ds["PeekBack"]the last element in dstime: O(1)
    ds["PeekFront"]the first element in dstime: O(1)
    ds["PopBack"]remove the last element from dstime: O(1)
    ds["PopFront"]remove the first element from dstime: O(1)
    ds["PushBack",x]add x to the end of ds, dropping the first element if ds is fulltime: O(1)
    ds["PushFront",x]add x to the start of ds, dropping the last element if ds is fulltime: O(1)
    ds["Visualization"]return a visualization of dstime: O(n)
  • The following functions are also supported:
  • dsi===dsjyield True if dsi is equal to dsj
    FullForm[ds]print the full form of ds
    Information[ds]give information about ds
    InputForm[ds]print a version of ds suitable for input to the Wolfram Language
    Normal[ds]convert ds to a normal expression

Examples

open all close all

Basic Examples  (3)

A new "RingBuffer" can be created with CreateDataStructure:

Wolfram Language code: ds = CreateDataStructure["RingBuffer", 8]

Return the length:

Wolfram Language code: ds["Length"]

The maximum number of elements that can be stored:

Wolfram Language code: ds["Capacity"]

Push an element to the back:

Wolfram Language code: ds["PushBack", f[1]]

The elements stored:

Wolfram Language code: ds["Elements"]

Normal returns the elements and the size:

Wolfram Language code: Normal[ds]

Fill up a ring buffer:

Wolfram Language code: ds = CreateDataStructure["RingBuffer", 8]; Do[ds["PushBack", i], {i, 8}]; ds["Elements"]

When another element is pushed to the end, the first element is dropped:

Wolfram Language code: ds["PushBack", 9]; Normal[ds]

Sum all the elements:

Wolfram Language code: ds["Fold", Plus, 0]

A visualization of the data structure can be generated:

Wolfram Language code: ds = CreateDataStructure["RingBuffer", 20]; Do[ds["PushBack", i], {i, 15}];ds["Visualization"]

Scope  (1)

Information  (1)

A new "RingBuffer" can be created with CreateDataStructure:

Wolfram Language code: ds = CreateDataStructure["RingBuffer", 8]

Information about the data structure ds:

Wolfram Language code: Information[ds]

Neat Examples  (2)

Animation  (1)

Wolfram Language code: ds = CreateDataStructure["RingBuffer", 8]; Do[ds["PushFront", i], {i, 8}]; list = Table[ res = HighlightGraph[CycleGraph[8, DirectedEdges -> True, VertexLabels -> Thread[Rule[Range[8], ds["Elements"]]]], {Style[1, Blue], Style[8, Red]}]; ds["PushFront", i]; res, {i, 9, 32}]; ListAnimate[list]

EvaluationMonitor  (1)

An evaluation monitor that shows the most recent events:

Wolfram Language code: Dynamic[Framed[Pane[StringRiffle[ds["Elements"], " "]], ImageSize -> Scaled[0.5]], UpdateInterval -> 0.1, Initialization :> (ds = CreateDataStructure["RingBuffer", 10])]
Wolfram Language code: NDSolve[{y'[x] == y[x]Cos[x + y[x]], y[0] == 1}, y, {x, 0, 30}, EvaluationMonitor :> ds["PushBack", x]]
