Put Graphics in a Grid

Create graphics

Here is an array of Graphics and text objects:

Wolfram Language code:

{
	{Graphics[Circle[]], Style["Hello", FontSize -> 48]},
	{RandomImage[], Plot[Sin[x], {x, 0, 11}]}
	}

Use GraphicsGrid to format an array of graphics as a grid:

Wolfram Language code:

GraphicsGrid[{
	{Graphics[Circle[]], Style["Hello", FontSize -> 48]},
	{RandomImage[], Plot[Sin[x], {x, 0, 11}]}
	}]

Add a frame and dividers to a grid:

Use SpanFromLeft and SpanFromAbove to make grid elements that span multiple columns or rows:

SpanFromLeft and SpanFromAbove can be repeated to span multiple columns or rows.

Use SpanFromBoth to make grid elements that simultaneously span multiple rows and columns:

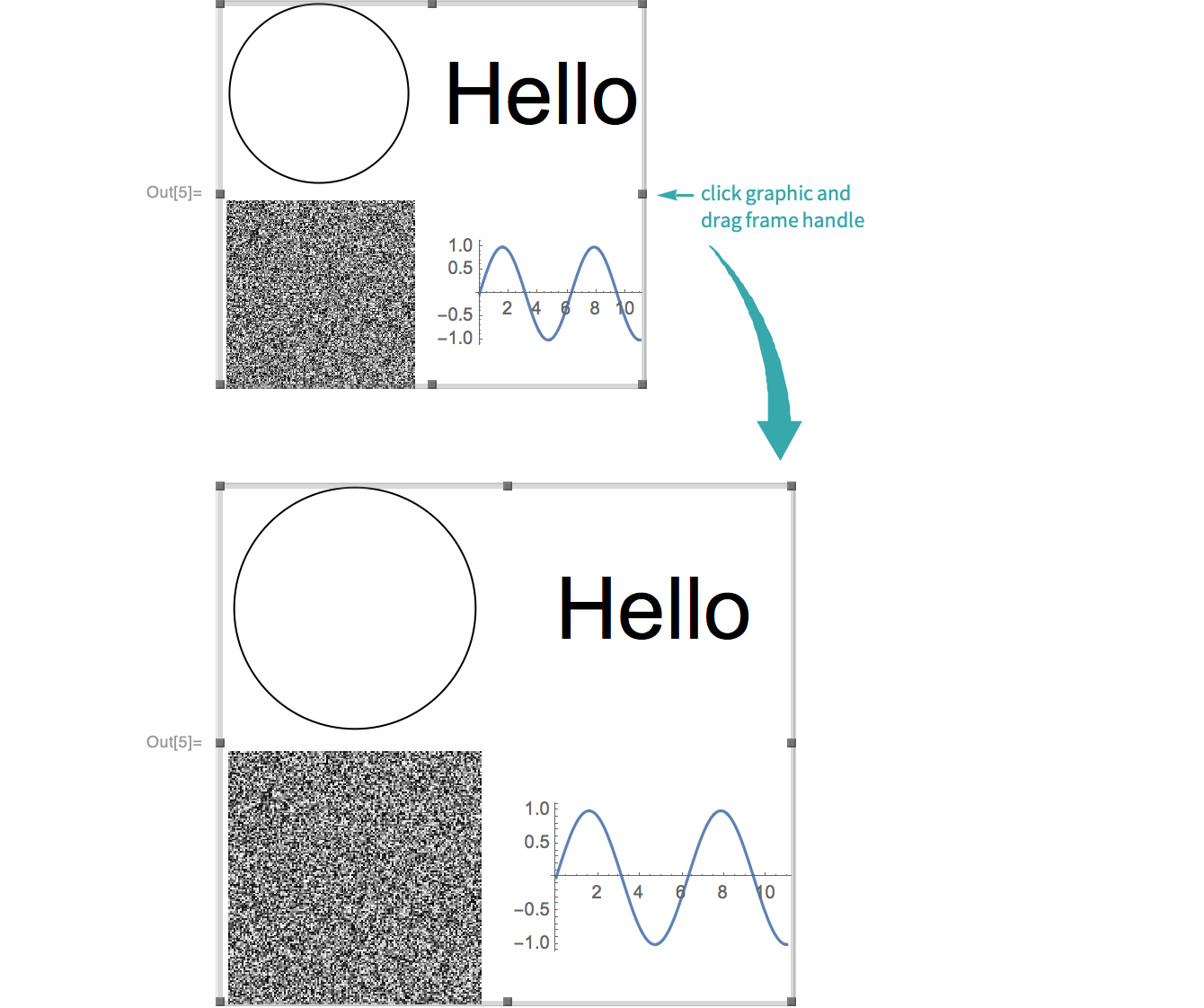

A GraphicsGrid can be resized as a whole:

You can also use Grid to put items in a grid, but the result is a typeset structure rather than Graphics and cannot be resized as a whole.
