ElementMeshRegionProduct

ElementMeshRegionProduct[mesh1,mesh2]

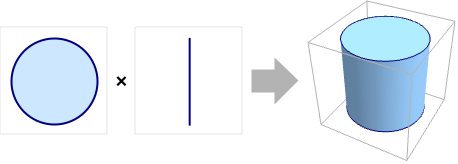

represents the Cartesian product of the ElementMesh mesh1 and mesh2.

Details and Options

  • ElementMeshRegionProduct is also known as outer product region or region extrusion.
  • ElementMeshRegionProduct[mesh1,mesh2] represents the region .
  • The embedding dimension of the product region is the sum of embedding dimensions, and the geometric dimension is the sum of geometric dimensions.
  • The highest product dimension supported is 3.
  • ElementMeshRegionProduct has the same options as ToElementMesh, with the following additions and changes:
  • "RegionMarkerFunction" Nonespecify region markers

Examples

open all close all

Basic Examples  (2)

Load the package:

Wolfram Language code: Needs["NDSolve`FEM`"]

Create an ElementMesh:

Wolfram Language code: mesh = ToElementMesh[Line[{{0}, {1}}]]

Compute the ElementMesh region product:

Wolfram Language code: productMesh = ElementMeshRegionProduct[mesh, mesh]

Visualize the region product mesh:

Wolfram Language code: productMesh["Wireframe"]

Create three ElementMesh instances:

Wolfram Language code: meshX = ToElementMesh[Line[{{0}, {2}}]]; meshY = ToElementMesh[Line[{{0}, {1}}]]; meshZ = ToElementMesh[Line[{{0}, {3}}]];

Compute the ElementMesh region product:

Wolfram Language code: productMesh = ElementMeshRegionProduct[meshX, meshY, meshZ]

Visualize the region product mesh:

Wolfram Language code: productMesh["Wireframe"]

Scope  (1)

Create two ElementMesh instances:

Wolfram Language code: meshXY = ToElementMesh[Disk[], MaxCellMeasure -> 0.1]; meshZ = ToElementMesh[Line[{{0}, {3}}]];

Extrude the first ElementMesh with the second by forming a region product:

Wolfram Language code: productMesh = ElementMeshRegionProduct[meshXY, meshZ]

Visualize the region product mesh:

Wolfram Language code: productMesh["Wireframe"]

Options  (2)

"RegionMarkerFunction"  (2)

Create a marker association and a region member function:

Wolfram Language code: regs = <|"solid" -> 10, "fluid" -> 20|>; rmf = RegionMember[Rectangle[{1.2, 0}, {1.8, 3}]];

Define a region marker function:

Wolfram Language code: myRegionMarkerFunction = With[{rmf = rmf, rs = regs["solid"], rf = regs["fluid"]}, If[rmf[#], rs, rf]&];

Create ElementMesh that is used in each direction:

Wolfram Language code: mesh = ToElementMesh[Line[{{0.}, {3.}}]];

Compute the ElementMesh region product:

Wolfram Language code: mesh = ElementMeshRegionProduct[mesh, mesh, "RegionMarkerFunction" -> myRegionMarkerFunction]

Inspect the "MeshElementMarkerUnion" of the generated mesh:

Wolfram Language code: mesh["MeshElementMarkerUnion"]

Visualize the region product mesh with the region markers:

Wolfram Language code: Show[mesh["Wireframe"["MeshElementStyle" -> {Directive[FaceForm[Red]], Directive[FaceForm[Green]]}]], AspectRatio -> 1]

Create a marker association and a region member function:

Wolfram Language code: regs = <|"left" -> 1, "central" -> 3, "right" -> 2|>; rLeft = RegionMember[Cuboid[{0, 0, 0}, {0.8, 2, 2}]]; rCentral = RegionMember[Cuboid[{0.8, 0, 0}, {1.2, 2, 2}]]; rRight = RegionMember[Cuboid[{1.2, 0, 0}, {2, 2, 2}]];

Define a region marker function:

Wolfram Language code: myRegionMarkerFunction = With[{rmf = rmf, rl = regs["left"], rc = regs["central"], rr = regs["right"]}, If[rLeft[#], rl, If[rCentral[#], rc, rr]]&];

Create ElementMesh that is used in each direction:

Wolfram Language code: mesh = ToElementMesh[Line[{{0.}, {2.}}]];

Compute the ElementMesh region product:

Wolfram Language code: mesh = ElementMeshRegionProduct[mesh, mesh, mesh, "RegionMarkerFunction" -> myRegionMarkerFunction]

Inspect the "MeshElementMarkerUnion" of the generated mesh:

Wolfram Language code: mesh["MeshElementMarkerUnion"]

Visualize the region product mesh with the region markers:

Wolfram Language code: Show[Map[mesh["Wireframe"[ElementMarker == #[[1]], "MeshElement" -> "MeshElements", "ElementMeshDirective" -> Directive[EdgeForm[], FaceForm[#[[2]]]]]]&, {{1, Green}, {2, Orange}, {3, Red}}] , PlotRange -> {All, {1, 2}, All}]

Applications  (2)

Create a 2D graded mesh from a product of two 1D graded meshes:

Wolfram Language code: mesh = ToGradedMesh[Line[{{0}, {2}}], <| "Alignment" -> "Left"|>]; productMesh = ElementMeshRegionProduct[mesh, mesh]; productMesh["Wireframe"]

Create a 1D graded mesh with a "Central" point distribution:

Wolfram Language code: meshX = ToGradedMesh[Line[{{0}, {2}}], <|"Alignment" -> "Central"|>];

Create a second 1D graded mesh with a "Central" point distribution and 50 elements:

Wolfram Language code: meshY = ToGradedMesh[Line[{{0}, {1}}], <|"Alignment" -> "Central", "ElementCount" -> 50|>];

Construct a region product:

Wolfram Language code: productMesh = ElementMeshRegionProduct[meshX, meshY]

Visualize the region product of the anisotropic mesh:

Wolfram Language code: productMesh["Wireframe"]

Create a third 1D graded mesh with a "BothEnds" point distribution, 50 elements and an endpoint distance of 1/200:

Wolfram Language code: meshZ = ToGradedMesh[Line[{{0}, {1}}], <| "Alignment" -> "BothEnds", "ElementCount" -> 50, "MinimalDistance" -> 1 / 200|>]

Create the region product:

Wolfram Language code: productMesh = ElementMeshRegionProduct[productMesh, meshZ]

Visualize the 3D graded mesh:

Wolfram Language code: productMesh["Wireframe"]
