AudioChannelAssignment

AudioChannelAssignment

is an option for Audio and related functions that specifies a mapping from audio channels to available speakers of the output audio device.

Details

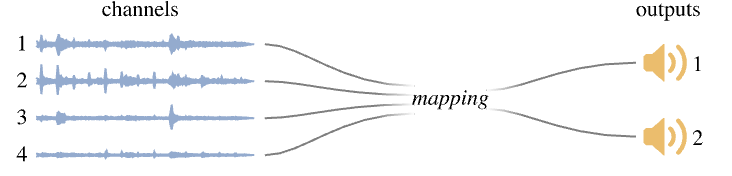

  • Channel assignment specifies a mapping from audio channels to available speakers.
  • Typical settings include:
  • Automaticautomatic channel assignment
    {out1,out2,…}play input channel i on output outi
    "Mean"mean of all input channels on all outputs
    "Partition"partition the input channels on outputs
    "Periodic"periodic assignment of input channels to outputs
    "Take"playing audio channel i on the i^(th) output
  • Explicit channels outi can be any of the following:
  • Nonenot played on any output
    nplay on the n^(th) output
    {n1,n2,…}play on several outputs n1, n2, …
  • For a 5-channel input and 2 outputs, the channel assignments are equivalent to:
  • "Mean"{{1,2},{1,2},{1,2},{1,2},{1,2}}
    "Partition"{1,1,1,2,2}
    "Periodic"{1,2,1,2,1}
    "Take"{1,2,None,None,None}
  • Channel assignments can be specified when constructing an Audio or AudioStream object.

Examples

open all close all

Basic Examples  (2)

By default, a mono signal is played on both output channels:

Wolfram Language code: a = Import["ExampleData/rule30.wav"]

Play it only on the right channel:

Wolfram Language code: Audio[a, AudioChannelAssignment -> {2}]

Invert the channels of a stereo recording:

Wolfram Language code: a = ExampleData[{"Audio", "MaleVoice"}, "Audio"];
Wolfram Language code: Audio[a, AudioChannelAssignment -> {2, 1}]

Scope  (1)

In a multichannel recording, the channels are automatically assigned:

Wolfram Language code: a = ExampleData[{"Audio", "Walking"}, "Audio"]

For a four-channel audio sample, default assignment is {1,2,1,2}. Switch the left and right channels:

Wolfram Language code: Audio[a, AudioChannelAssignment -> {2, 1, 2, 1}]

Only play the left channels:

Wolfram Language code: Audio[a, AudioChannelAssignment -> {1, None, 1, None}]
