BatchNormalizationLayer

BatchNormalizationLayer[]

represents a trainable net layer that normalizes its input data by learning the data mean and variance.

Details and Options

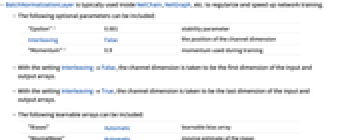

  • BatchNormalizationLayer is typically used inside NetChain, NetGraph, etc. to regularize and speed up network training.
  • The following optional parameters can be included:
  • "Epsilon" 0.001`stability parameter
    InterleavingFalsethe position of the channel dimension
    "Momentum" 0.9momentum used during training
  • With the setting InterleavingFalse, the channel dimension is taken to be the first dimension of the input and output arrays.
  • With the setting InterleavingTrue, the channel dimension is taken to be the last dimension of the input and output arrays.
  • The following learnable arrays can be included:
  • "Biases"Automaticlearnable bias array

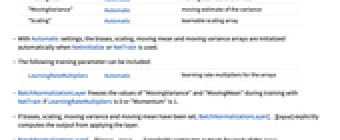

    "MovingMean"Automaticmoving estimate of the mean
    "MovingVariance"Automaticmoving estimate of the variance
    "Scaling"Automaticlearnable scaling array
  • With Automatic settings, the biases, scaling, moving mean and moving variance arrays are initialized automatically when NetInitialize or NetTrain is used.
  • The following training parameter can be included:
  • LearningRateMultipliersAutomaticlearning rate multipliers for the arrays
  • BatchNormalizationLayer freezes the values of "MovingVariance" and "MovingMean" during training with NetTrain if LearningRateMultipliers is 0 or "Momentum" is 1.
  • If biases, scaling, moving variance and moving mean have been set, BatchNormalizationLayer[…][input] explicitly computes the output from applying the layer.
  • BatchNormalizationLayer[…][{input1,input2,…}] explicitly computes outputs for each of the inputi.
  • When given a NumericArray as input, the output will be a NumericArray.
  • BatchNormalizationLayer exposes the following ports for use in NetGraph etc.:
  • "Input"a vector, matrix or higher-rank array
    "Output"a vector, matrix or higher-rank array
  • When it cannot be inferred from other layers in a larger net, the option "Input"->{n1,n2,…} can be used to fix the input dimensions of BatchNormalizationLayer.
  • NetExtract can be used to extract biases, scaling, moving variance and moving mean arrays from a BatchNormalizationLayer object.
  • Options[BatchNormalizationLayer] gives the list of default options to construct the layer. Options[BatchNormalizationLayer[…]] gives the list of default options to evaluate the layer on some data.
  • Information[BatchNormalizationLayer[…]] gives a report about the layer.
  • Information[BatchNormalizationLayer[…],prop] gives the value of the property prop of BatchNormalizationLayer[…]. Possible properties are the same as for NetGraph.

Examples

open all close all

Basic Examples  (2)

Create a BatchNormalizationLayer:

Wolfram Language code: BatchNormalizationLayer[]

Create an initialized BatchNormalizationLayer that takes a vector and returns a vector:

Wolfram Language code: batchnorm = NetInitialize@BatchNormalizationLayer["Input" -> 3]

Apply the layer to an input vector:

Wolfram Language code: batchnorm[{1, 2, 3}]

Scope  (4)

Ports  (2)

Create an initialized BatchNormalizationLayer that takes a rank-3 array and returns a rank-3 array:

Wolfram Language code: batchnorm = NetInitialize@BatchNormalizationLayer["Input" -> {2, 3, 3}]
Wolfram Language code: batchnorm[RandomReal[1, {2, 3, 3}]]//Normal//MatrixForm

Create an initialized BatchNormalizationLayer that takes a vector and returns a vector:

Wolfram Language code: batchnorm = NetInitialize@BatchNormalizationLayer["Input" -> 3]

Apply the layer to a batch of input vectors:

Wolfram Language code: batchnorm[{{1, 2, 3}, {4, 0.2, 3}}]

Use NetEvaluationMode to use the training behavior of BatchNormalizationLayer:

Wolfram Language code: batchnorm[{{1, 2, 3}, {4, 0.2, 3}}, NetEvaluationMode -> "Train"]

Parameters  (2)

"Biases"  (1)

Create a BatchNormalizationLayer with an initial value for the "Biases" parameter:

Wolfram Language code: batchnorm = BatchNormalizationLayer["Biases" -> {-1, 3.4}]

Extract the "Biases" parameter:

Wolfram Language code: NetExtract[batchnorm, "Biases"]

The default value for "Biases" chosen by NetInitialize is a zero vector:

Wolfram Language code: batchnorm = NetInitialize@BatchNormalizationLayer["Input" -> 2]; NetExtract[batchnorm, "Biases"]

"Scaling"  (1)

Create an initialized BatchNormalizationLayer with the "Scaling" parameter set to zero and the "Biases" parameter set to a custom value:

Wolfram Language code: batchnorm = NetInitialize@BatchNormalizationLayer["Scaling" -> {0, 0, 0}, "Biases" -> {1.3, -22.1, 1.2}]

Applying the layer to any input returns the value for the "Biases" parameter:

Wolfram Language code: batchnorm[{1, 2, 3}]
Wolfram Language code: batchnorm[{-3.4, 2.3, 100}]

The default value for "Scaling" chosen by NetInitialize is a vector of 1s:

Wolfram Language code: batchnorm = NetInitialize@BatchNormalizationLayer["Input" -> 2]; NetExtract[batchnorm, "Scaling"]

Options  (2)

"Epsilon"  (1)

Create a BatchNormalizationLayer with the "Epsilon" parameter explicitly specified:

Wolfram Language code: batchnorm = BatchNormalizationLayer["Epsilon" -> 0.1]

Extract the "Epsilon" parameter:

Wolfram Language code: NetExtract[batchnorm, "Epsilon"]

"Momentum"  (1)

Create a BatchNormalizationLayer with the "Momentum" parameter explicitly specified:

Wolfram Language code: batchnorm = BatchNormalizationLayer["Momentum" -> 0.1]

Extract the "Momentum" parameter:

Wolfram Language code: NetExtract[batchnorm, "Momentum"]

Applications  (1)

BatchNormalizationLayer is commonly inserted between a ConvolutionLayer and its activation function in order to stabilize and speed up training:

Wolfram Language code: NetChain[{ConvolutionLayer[3, {3, 3}], BatchNormalizationLayer["Input" -> {3, 28, 28}], ElementwiseLayer[Ramp]}]

Properties & Relations  (1)

During ordinary evaluation, BatchNormalizationLayer computes the following function:

Wolfram Language code: batchNormFunction = Function[Block[{sd = Sqrt[#MovingVariance + #Epsilon]}, (#2 * #Scaling / sd ) + (#Biases - (#Scaling * #MovingMean) / sd)]];

Evaluate a BatchNormalizationLayer on an example vector containing a single channel:

Wolfram Language code: params = <|"Scaling" -> {3}, "Biases" -> {2}, "MovingMean" -> {1}, "MovingVariance" -> {2}, "Epsilon" -> 0.001|>; layer = BatchNormalizationLayer@@Normal[params]
Wolfram Language code: layer[{5}]//Normal

Manually compute the same result:

Wolfram Language code: batchNormFunction[params, {5}]

Possible Issues  (3)

Specifying negative values for the "MovingVariance" parameter causes numerical errors during evaluation:

Wolfram Language code: batchnorm = NetInitialize[BatchNormalizationLayer["Input" -> {1, 2, 2}, "MovingVariance" -> {-2}]]
Wolfram Language code: batchnorm[RandomReal[1, {1, 2, 2}]]

BatchNormalizationLayer cannot be initialized until all its input and output dimensions are known:

Wolfram Language code: NetInitialize@BatchNormalizationLayer[]
Wolfram Language code: NetInitialize@BatchNormalizationLayer["Input" -> 3]

The "MovingMean" and "MovingVariance" arrays of BatchNormalizationLayer cannot be shared:

Wolfram Language code: BatchNormalizationLayer["MovingMean" -> NetArray["MovingMean"]]

Create a BatchNormalizationLayer with shared arrays:

Wolfram Language code: sharedBatchNorm = NetInsertSharedArrays[BatchNormalizationLayer[]]

Train it on some data:

Wolfram Language code: net = NetTrain[NetChain[{2, sharedBatchNorm, 2, sharedBatchNorm, 2}], {{0, 1} -> {1, 0}, {1, 0} -> {0, 1}}]

Extract the trained batch normalization layers:

Wolfram Language code: {batchnorm1, batchnorm2} = NetExtract[net, {{2}, {4}}]

The "Scaling" and "Biases" arrays were shared, but not "MovingMean" or "MovingVariance":

Wolfram Language code: Normal /@ Information[batchnorm1, "Arrays"]
Wolfram Language code: Normal /@ Information[batchnorm2, "Arrays"]
