BooleanConsecutiveFunction

represents a Boolean function of n variables that gives True if k consecutive variables are True.

treats the variable list as cyclic.

BooleanConsecutiveFunction[{k₁,k₂,…,k_d},{n₁,n₂,…,n_d}]

represents a Boolean function of n₁ n₂ ⋯ n_d variables that gives True if all variables in a block of the variable array are True.

BooleanConsecutiveFunction[{{k₁,k₂,…,k_d},{c₁,c₂,…,c_d}},{n₁,n₂,…,n_d}]

treats the i level of the variable array as cyclic if c_i is True.

BooleanConsecutiveFunction[spec,{a₁,a₂,…}]

gives the Boolean expression in variables a_i corresponding to the Boolean consecutive function specified by spec.

BooleanConsecutiveFunction[spec,{a₁,a₂,…},form]

gives the Boolean expression in the form specified by form.

BooleanConsecutiveFunction

BooleanConsecutiveFunction[k,n]

represents a Boolean function of n variables that gives True if k consecutive variables are True.

BooleanConsecutiveFunction[{k,True},n]

treats the variable list as cyclic.

BooleanConsecutiveFunction[{k₁,k₂,…,k_d},{n₁,n₂,…,n_d}]

represents a Boolean function of n₁ n₂ ⋯ n_d variables that gives True if all variables in a block of the variable array are True.

BooleanConsecutiveFunction[{{k₁,k₂,…,k_d},{c₁,c₂,…,c_d}},{n₁,n₂,…,n_d}]

treats the i level of the variable array as cyclic if c_i is True.

BooleanConsecutiveFunction[spec,{a₁,a₂,…}]

gives the Boolean expression in variables a_i corresponding to the Boolean consecutive function specified by spec.

BooleanConsecutiveFunction[spec,{a₁,a₂,…},form]

gives the Boolean expression in the form specified by form.

Details

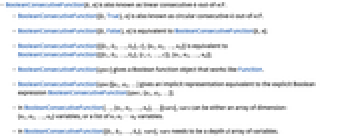

BooleanConsecutiveFunction[k,n] is also known as linear consecutive-k-out-of-n:F.
BooleanConsecutiveFunction[{k,True},n] is also known as circular consecutive-k-out-of-n:F.
BooleanConsecutiveFunction[{k,False},n] is equivalent to BooleanConsecutiveFunction[k,n].
BooleanConsecutiveFunction[{{k₁,k₂,…,k_d},c},{n₁,n₂,…,n_d}] is equivalent to BooleanConsecutiveFunction[{{k₁,k₂,…,k_d},{c,c,…,c}},{n₁,n₂,…,n_d}].
BooleanConsecutiveFunction[spec] gives a Boolean function object that works like Function.
BooleanConsecutiveFunction[spec][a₁,a₂,…] gives an implicit representation equivalent to the explicit Boolean expression BooleanConsecutiveFunction[spec,{a₁,a₂,…}].
In BooleanConsecutiveFunction[…,{n₁,n₂,…,n_d},…][vars], vars can be either an array of dimension-{n₁,n₂,…,n_d} variables, or a list of n₁ n₂ ⋯ n_d variables.
In BooleanConsecutiveFunction[{k₁,k₂,…,k_d},vars], vars needs to be a depth-d array of variables.
BooleanConvert converts BooleanConsecutiveFunction[spec][vars] to an explicit Boolean expression.
In BooleanConsecutiveFunction[spec,vars,form], the possible forms are as given for BooleanConvert.
BooleanConsecutiveFunction[spec,vars] by default gives an expression in disjunctive normal form (DNF).

Examples

open all close all

Basic Examples (3)

Create a consecutive-2-out-of-3 Boolean function:

Wolfram Language code: BooleanConsecutiveFunction[2, 3][Subscript[x, 1], Subscript[x, 2], Subscript[x, 3]]

Convert to explicit form:

Wolfram Language code: BooleanConvert[%]

Use BooleanConsecutiveFunction in ReliabilityDistribution:

Wolfram Language code: {Subscript[𝒟, 1], Subscript[𝒟, 2], Subscript[𝒟, 3]} = Table[ExponentialDistribution[Subscript[λ, i]], {i, 3}];

Wolfram Language code:

ℛ = ReliabilityDistribution[BooleanConsecutiveFunction[2, 3][x, y, z], {{x, Subscript[𝒟, 1]}, {y, Subscript[𝒟, 2]}, {z, Subscript[𝒟, 3]}}];

Compute the survival function:

Wolfram Language code: SurvivalFunction[ℛ, t]//Simplify

Use BooleanConsecutiveFunction in FailureDistribution:

Wolfram Language code: {Subscript[𝒟, 1], Subscript[𝒟, 2], Subscript[𝒟, 3]} = Table[ExponentialDistribution[Subscript[λ, i]], {i, 3}];

Wolfram Language code:

ℱ = FailureDistribution[BooleanConsecutiveFunction[2, 3][x, y, z], {{x, Subscript[𝒟, 1]}, {y, Subscript[𝒟, 2]}, {z, Subscript[𝒟, 3]}}];

Compute the survival function:

Wolfram Language code: SurvivalFunction[ℱ, t]//Simplify

Scope (10)

Linear Model (4)

BooleanConsecutiveFunction stays unevaluated:

Wolfram Language code: BooleanConsecutiveFunction[2, 4][x, y, z, v]

Use BooleanConvert to expand it:

Wolfram Language code: BooleanConvert[%]

Construct the function as an expression in the conjunctive normal form:

Wolfram Language code: BooleanConsecutiveFunction[2, {x, y, z, v}, "CNF"]

Define a two-dimensional function, shaped as a grid:

Wolfram Language code: BooleanConvert[BooleanConsecutiveFunction[{2, 2}, {3, 3}][Array[Subscript[x, #1, #2]&, {3, 3}]]]

Variables can also be given in a flat list:

Wolfram Language code: BooleanConvert[BooleanConsecutiveFunction[{2, 2}, {3, 3}][Array[Subscript[x, #]&, 9]]]

A system works if at least three out of four consecutive components on a line work:

Wolfram Language code: 𝒟 = ExponentialDistribution[λ];

Wolfram Language code:

ℛ = ReliabilityDistribution[BooleanConsecutiveFunction[3, 4][x, y, z, v], {{x, 𝒟}, {y, 𝒟}, {z, 𝒟}, {v, 𝒟}}];

Wolfram Language code: SurvivalFunction[ℛ, t]

BooleanConsecutiveFunction can be used in a structure:

Wolfram Language code:

ℛ2 = ReliabilityDistribution[w∨BooleanConsecutiveFunction[3, 4][x, y, z, v], {{x, 𝒟}, {y, 𝒟}, {z, 𝒟}, {v, 𝒟}, {w, 𝒟}}];

Wolfram Language code: SurvivalFunction[ℛ2, t]

A system fails if at least three out of four consecutive components on a line fail:

Wolfram Language code: 𝒟 = ExponentialDistribution[λ];

Wolfram Language code: ℱ = FailureDistribution[BooleanConsecutiveFunction[3, 4][x, y, z, v], {{x, 𝒟}, {y, 𝒟}, {z, 𝒟}, {v, 𝒟}}];

Wolfram Language code: SurvivalFunction[ℱ, t]

BooleanConsecutiveFunction can be used in a structure:

Wolfram Language code:

ℱ2 = FailureDistribution[w∨BooleanConsecutiveFunction[3, 4][x, y, z, v], {{x, 𝒟}, {y, 𝒟}, {z, 𝒟}, {v, 𝒟}, {w, 𝒟}}];

Wolfram Language code: SurvivalFunction[ℱ2, t]

Circular Model (4)

BooleanConsecutiveFunction stays unevaluated:

Wolfram Language code: BooleanConsecutiveFunction[{2, True}, 3][x, y, z]

Use BooleanConvert to expand it:

Wolfram Language code: BooleanConvert[%]

Construct the function as an expression in the algebraic normal form:

Wolfram Language code: BooleanConsecutiveFunction[{2, True}, {x, y, z}, "ANF"]

Define a two-dimensional function, in the shape of a torus:

Wolfram Language code: BooleanConvert[BooleanConsecutiveFunction[{{2, 2}, True}, {3, 3}][Array[Subscript[x, #1, #2]&, {3, 3}]]]

Variables can also be given in a flat list:

Wolfram Language code: BooleanConvert[BooleanConsecutiveFunction[{{2, 2}, True}, {3, 3}][Array[Subscript[x, #]&, 9]]]

A system fails if at least three out of four consecutive components in a circle fail:

Wolfram Language code: 𝒟 = ExponentialDistribution[λ];

Wolfram Language code:

ℛ = FailureDistribution[BooleanConsecutiveFunction[{3, True}, 4][x, y, z, v], {{x, 𝒟}, {y, 𝒟}, {z, 𝒟}, {v, 𝒟}}];

Wolfram Language code: SurvivalFunction[ℛ, t]//PiecewiseExpand

BooleanConsecutiveFunction can be used in a structure:

Wolfram Language code:

ℛ2 = FailureDistribution[w∨BooleanConsecutiveFunction[{3, True}, 4][x, y, z, v], {{x, 𝒟}, {y, 𝒟}, {z, 𝒟}, {v, 𝒟}, {w, 𝒟}}];

Wolfram Language code: SurvivalFunction[ℛ2, t]//PiecewiseExpand

A system works if at least three out of four consecutive components in a circle work:

Wolfram Language code: 𝒟 = ExponentialDistribution[λ];

Wolfram Language code:

ℱ = ReliabilityDistribution[BooleanConsecutiveFunction[{3, True}, 4][x, y, z, v], {{x, 𝒟}, {y, 𝒟}, {z, 𝒟}, {v, 𝒟}}];

Wolfram Language code: SurvivalFunction[ℱ, t]//PiecewiseExpand

BooleanConsecutiveFunction can be used in a structure:

Wolfram Language code:

ℱ2 = ReliabilityDistribution[w∨BooleanConsecutiveFunction[{3, True}, 4][x, y, z, v], {{x, 𝒟}, {y, 𝒟}, {z, 𝒟}, {v, 𝒟}, {w, 𝒟}}];

Wolfram Language code: SurvivalFunction[ℱ2, t]//PiecewiseExpand

Mixed Model (2)

Wrapping can be different in different dimensions. Define a cylinder:

Wolfram Language code: BooleanConsecutiveFunction[{{2, 2}, {True, False}}, {3, 3}][Array[Subscript[x, #1, #2]&, {3, 3}]]

Use BooleanConvert to expand it:

Wolfram Language code: BooleanConvert[%]

Construct the function as an expression in the conjunctive normal form:

Wolfram Language code: BooleanConsecutiveFunction[{{2, 2}, {True, False}}, Array[Subscript[x, #1, #2]&, {3, 3}], "CNF"]

Connected cylinders stacked inside each other:

Wolfram Language code:

BooleanConsecutiveFunction[{{2, 3, 3}, {False, False, True}}, {3, 3, 3}][Flatten[Array[Subscript[x, #1, #2, #3]&, {3, 3, 3}]]];

Use BooleanConvert to expand it:

Wolfram Language code: BooleanConvert[%]

Applications (2)

A chain of 10 radio towers fails if two neighboring towers fail:

Wolfram Language code: structure = BooleanConsecutiveFunction[2, 10][Array[Subscript[x, #]&, 10]]

Each tower has an exponential lifetime distribution with an expected lifetime of 10 years:

Wolfram Language code: 𝒟tower = ExponentialDistribution[1 / 10];

The survival function for communication from one end of the tower chain to the other:

Wolfram Language code: ℱ = FailureDistribution[structure, Array[{Subscript[x, #], 𝒟tower}&, 10]];

Wolfram Language code: Plot[Evaluate@SurvivalFunction[ℱ, t], {t, 0, 10}, Filling -> Axis]

The probability of functioning communication after five years without maintenance:

Wolfram Language code: Probability[t > 5, tℱ]//N

Cameras are arranged in an overlapping grid. All areas are covered until a 2×2 grid fails:

Wolfram Language code: structure = BooleanConsecutiveFunction[{2, 2}, {4, 4}][Array[Subscript[x, #1, #2]&, {4, 4}]];

Each camera has an expected lifetime of six years:

Wolfram Language code: 𝒟camera = ExponentialDistribution[1 / 6];

The lifetime distribution of a complete camera system is modeled with FailureDistribution:

Wolfram Language code: ℱ = FailureDistribution[structure, Join@@Array[{Subscript[x, #1, #2], 𝒟camera}&, {4, 4}]];

To cover the same area with minimal overlap, four cameras are needed:

Wolfram Language code:

ℱnooverlap = FailureDistribution[Subscript[x, 1] || Subscript[x, 2] || Subscript[x, 3] || Subscript[x, 4], {{Subscript[x, 1], 𝒟camera}, {Subscript[x, 2], 𝒟camera}, {Subscript[x, 3], 𝒟camera}, {Subscript[x, 4], 𝒟camera}}];

The overlapping structure has a higher reliability, but uses more cameras:

Wolfram Language code: Plot[Evaluate@{SurvivalFunction[ℱ, t], SurvivalFunction[ℱnooverlap, t]}, {t, 0, 15}, Filling -> Axis]

Use the same amount of cameras in standby mode instead:

Wolfram Language code: 𝒟standby = StandbyDistribution[𝒟camera, {𝒟camera, 𝒟camera, 𝒟camera}, 0.9];

Wolfram Language code:

ℱstandby = FailureDistribution[Subscript[x, 1] || Subscript[x, 2] || Subscript[x, 3] || Subscript[x, 4], {{Subscript[x, 1], 𝒟standby}, {Subscript[x, 2], 𝒟standby}, {Subscript[x, 3], 𝒟standby}, {Subscript[x, 4], 𝒟standby}}];

Depending on mission time, a standby setup has higher reliability than an overlapping grid:

Wolfram Language code: Plot[Evaluate@{SurvivalFunction[ℱ, t], SurvivalFunction[ℱstandby, t]}, {t, 0, 15}, Filling -> Axis]

Properties & Relations (2)

Lower dimensions are special cases of higher dimensions:

Wolfram Language code: BooleanConvert[BooleanConsecutiveFunction[{3, True}, 4][Array[Subscript[x, 1, #]&, 4]]]

Wolfram Language code: BooleanConvert[BooleanConsecutiveFunction[{{1, 3}, True}, {1, 4}][Array[Subscript[x, #1, #2]&, {1, 4}]]]

Wolfram Language code: Equivalent[%%, %]//TautologyQ

A ReliabilityDistribution with a BooleanConsecutiveFunction is equal to the negated corresponding Boolean expression in a FailureDistribution:

Wolfram Language code: {Subscript[𝒟, 1], Subscript[𝒟, 2], Subscript[𝒟, 3]} = Table[ExponentialDistribution[Subscript[λ, i]], {i, 3}];

Wolfram Language code:

ℛ = ReliabilityDistribution[BooleanConsecutiveFunction[2, 3][x, y, z], {{x, Subscript[𝒟, 1]}, {y, Subscript[𝒟, 2]}, {z, Subscript[𝒟, 3]}}];

Wolfram Language code:

ℱ = FailureDistribution[¬BooleanConsecutiveFunction[2, 3][¬x, ¬y, ¬z], {{x, Subscript[𝒟, 1]}, {y, Subscript[𝒟, 2]}, {z, Subscript[𝒟, 3]}}];

Wolfram Language code: CDF[ℛ, t] - CDF[ℱ, t]

Neat Examples (1)

Simulate a linear consecutive-k-out-of-n system:

Wolfram Language code: meaning[False] = "working";meaning[True] = "failed";

Wolfram Language code:

simulate[k_, n_, λ_ : 1 / 2] := Block[{failed = False, deaths, t = -1, res = {}},
	deaths = RandomVariate[ExponentialDistribution[λ], n];
	While[!failed,
	t++;
	tab = Table[Style[Subscript[x, i], If[deaths[[i]] < t, Red, Green]], {i, n}];
	failed = BooleanConvert@BooleanConsecutiveFunction[k, n][Map[t > #&, deaths]];
	AppendTo[res, Graph[tab, Table[Subscript[x, j]Subscript[x, j + 1], {j, n - 1}], VertexSize -> Large, PlotLabel -> "t = " <> ToString[t] <> ", system " <> meaning[failed]]];
	];
	res//Column]

When requiring four out of 10 components to fail for the system to fail, with failure rate :

Wolfram Language code: simulate[4, 10, 1 / 3]
