ConvexPolygonQ

ConvexPolygonQ[poly]

gives True if the polygon poly is convex, and False otherwise.

Details

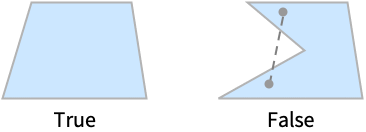

  • A polygon is convex if no line segment between two points in the polygon ever goes outside the polygon.
  • A convex polygon is visible from all points in the polygon.

Examples

open all close all

Basic Examples  (2)

Test whether a polygon is convex:

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {1, 0}, {0.5, 0.8}}]
Wolfram Language code: ConvexPolygonQ[𝒫]

ConvexPolygonQ gives False for non-convex polygons:

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {1, 0}, {0.2, 1}, {0.9, 1}}]
Wolfram Language code: ConvexPolygonQ[𝒫]

Scope  (7)

ConvexPolygonQ works on polygons:

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {1, 0}, {0.5, 0.8}}]
Wolfram Language code: ConvexPolygonQ[𝒫]

Triangle:

Wolfram Language code: ConvexPolygonQ[Triangle[]]

Rectangle:

Wolfram Language code: ConvexPolygonQ[Rectangle[]]

Polygon with holes:

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {3, 0}, {3, 3}, {0, 3}, {1, 1}, {1, 2}, {2, 2}, {2, 1}}, {1, 2, 3, 4} -> {{5, 6, 7, 8}}]
Wolfram Language code: ConvexPolygonQ[%]

Self-intersecting polygons:

Wolfram Language code: 𝒫 = Polygon[{{0.35, 0.2}, {0.9, 0.75}, {0.1, 0.55}, {0.9, 0.35}, {0.42, 0.9}}]
Wolfram Language code: ConvexPolygonQ[%]

Polygons with disconnected components:

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {1, 0}, {0, 1}, {1, 1}, {2, 1}, {1, 2}}, {{1, 2, 3}, {4, 5, 6}}]
Wolfram Language code: ConvexPolygonQ[%]

Polygon in :

Wolfram Language code: Polygon[{{2, 3, 1, 0}, {6, 9, 1, 0}, {5, 4, 1, 0}, {8, 2, 1, 0}}];
Wolfram Language code: ConvexPolygonQ[%]

ConvexPolygonQ works on polygons of geographic entities:

Wolfram Language code: ℛ = Polygon[["france"]];
Wolfram Language code: ConvexPolygonQ[ℛ]

Polygons with GeoPosition:

Wolfram Language code: ℛ = Polygon[GeoPosition[{{{40.083441, -88.235716}, {40.083607, -88.257488}, {40.082603, -88.257149}, {40.076136999999996, -88.25740499999999}, {40.076178, -88.270888}, {40.076516, -88.271558}, {40.083686, -88.271512}, {40.083659999999995, -88.267046}, ... 33323}, {40.098112, -88.228687}, {40.095216, -88.228627}, {40.095179, -88.238547}, {40.094480999999995, -88.238546}, {40.094508999999995, -88.23267}, {40.094106, -88.232556}, {40.090666999999996, -88.232477}, {40.090741, -88.235745}}}]];
Wolfram Language code: ConvexPolygonQ[ℛ]

Polygons with GeoPositionXYZ:

Wolfram Language code: ℛ = Polygon[GeoPositionXYZ[{{{150451.6968462432, -4.884430486484052*^6, 4.085078564164219*^6}, {148595.27532671497, -4.884475441490381*^6, 4.085092666620835*^6}, {148626.35829777512, -4.884546311005128*^6, 4.0850073717259285*^6}, {148618.5908634042 ... 7*^6, 4.0860187668081024*^6}, {150697.56410771207, -4.8836599487428395*^6, 4.085984535480795*^6}, {150711.88303095422, -4.883905546449982*^6, 4.0856924143435075*^6}, {150433.15479548014, -4.883908845676418*^6, 4.0856987003255524*^6}}}]];
Wolfram Language code: ConvexPolygonQ[ℛ]

Polygons with GeoPositionENU:

Wolfram Language code: ℛ = Polygon[GeoPositionENU[{{{3378.2547059731055, -3369.2234780923936, -0.7440009205072329}, {1521.3211635380246, -3351.391253626573, -0.022340134218666208}, {1550.2571145363192, -3462.8657556618973, -0.08899812728964207}, {1528.5672303494055, -418 ... 63383291193, -0.37494203351275246}, {3654.121991908476, -2566.7472331234085, -0.5214977847472255}, {3375.420726854886, -2558.6597093173914, -0.3648706331350695}}}, GeoPosition[{40.11379115639895, -88.2753251202516, -1.0415787873318691}]]];
Wolfram Language code: ConvexPolygonQ[ℛ]

ConvexPolygonQ works on polygons with GeoGridPosition:

Wolfram Language code: ℛ = Polygon[GeoGridPosition[{{{-0.9950503945490105, 1.2366760550756015}, {-0.9952074890903578, 1.2369207053693891}, {-0.9952196732768064, 1.2369073327446167}, {-0.9953160063787643, 1.236848436956935}, {-0.9954141759436825, 1.2369993898475449}, {-0. ... 197645333103}, {-0.9949098578570917, 1.2368130881428654}, {-0.9948663952535768, 1.2367477711687371}, {-0.9948714472169538, 1.2367426500757825}, {-0.9949211061652593, 1.2367089232486177}, {-0.9949439717990124, 1.236746107097628}}}, "Bonne"]];
Wolfram Language code: ConvexPolygonQ[ℛ]

Applications  (4)

Generate random polygons for testing algorithms and verification of time complexity:

Wolfram Language code: n = Table[Floor[10 ^ i], {i, 1, 4, 1 / 40}];
Wolfram Language code: polygons = Table[RandomPolygon[{"Convex", i}], {i, n}];
Wolfram Language code: AllTrue[polygons, ConvexPolygonQ]

Time complexity for algorithms for convex polygons:

Wolfram Language code: t = First[AbsoluteTiming[ConvexPolygonQ[#]]]& /@ polygons;
Wolfram Language code: Show[{ListPlot[Transpose[{n, t}], PlotRange -> All, Joined -> True, AxesLabel -> {"n", "Time"}], Plot[Style[Evaluate[Fit[Transpose[{n, t}], {1, x}, x]], Red, Dashed], {x, 0, 10 ^ 5}]}]

Test whether a polygon is concave:

Wolfram Language code: concavePolygonQ[poly_] := Not[ConvexPolygonQ[poly]]
Wolfram Language code: Table[RandomPolygon[RandomInteger[{3, 5}]], {4}]
Wolfram Language code: concavePolygonQ /@ %

Attempt to test whether a geometric region is convex:

Wolfram Language code: convexRegionQ[reg_] := ConvexPolygonQ[BoundaryDiscretizeRegion[reg]]
Wolfram Language code: convexRegionQ[Disk[]]
Wolfram Language code: convexRegionQ[ImplicitRegion[x ^ 2 + y ^ 3 < 1, {x, y}]]

Polygon classification using machine learning. Train a classifier function on polygon examples:

Wolfram Language code: trainingset = Table[(RandomPolygon[{#, RandomInteger[{3, 100}]}] -> #)&@RandomChoice[{"Simple", "Convex", "StarShaped"}], {20}];
Wolfram Language code: cfunc = Classify[Image[Graphics[#1]] -> #2&@@@trainingset]

Use the classifier function to classify new polygons:

Wolfram Language code: class = cfunc[Image[Graphics[#]]]&;
Wolfram Language code: 𝒫 = DynamicModule[«3»];
Wolfram Language code: ConvexPolygonQ[𝒫]
Wolfram Language code: class[𝒫]

A simple polygon:

Wolfram Language code: 𝒫 = DynamicModule[«3»];
Wolfram Language code: class[𝒫]

A star‐shaped polygon:

Wolfram Language code: 𝒫 = DynamicModule[«3»];
Wolfram Language code: class[𝒫]

Properties & Relations  (6)

A convex polygon is simple:

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {1, 0}, {0.5, 0.8}}]
Wolfram Language code: ConvexPolygonQ[𝒫]
Wolfram Language code: SimplePolygonQ[𝒫]

The OuterPolygon of a convex polygon is convex:

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {1, 0}, {0.5, 0.8}}]
Wolfram Language code: ConvexPolygonQ[𝒫]
Wolfram Language code: ConvexPolygonQ[OuterPolygon[𝒫]]

Convex polygons do not have inner polygons:

Wolfram Language code: InnerPolygon[𝒫]

A convex polygon has all interior vertex angles less than :

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {1, 0}, {1, 1}, {0, 1}}]
Wolfram Language code: PolygonAngle[𝒫]

Use PolygonDecomposition to decompose a polygon into convex polygons:

Wolfram Language code: 𝒫 = Polygon[{{0, 0}, {3, 0}, {3, 1}, {1, 1}, {1, 2}, {3, 2}, {3, 3}, {0, 3}}];
Wolfram Language code: PolygonDecomposition[𝒫, "Convex"]
Wolfram Language code: Graphics[{EdgeForm[Gray], %}]

Use RandomPolygon to generate a convex polygon:

Wolfram Language code: RandomPolygon["Convex"]
Wolfram Language code: ConvexPolygonQ[%]

The convex polygon is the convex hull of its edges:

Wolfram Language code: 𝒫 = Polygon[{{0.04022499106147648, 0.5079213334078534}, {0.7075250895331173, 0.9391967832603023}, {0.6794481727691097, 0.6843684731778141}, {0.3593295805847072, 0.46785753446220335}}, {1, 4, 3, 2}];
Wolfram Language code: ConvexHullMesh[𝒫]

Possible Issues  (1)

For a nonconstant polygon, ConvexPolygonQ returns False:

Wolfram Language code: 𝒫 = Polygon[{{a, b}, {c, d}, {e, f}, {g, h}}];
Wolfram Language code: ConstantRegionQ[𝒫]
Wolfram Language code: ConvexPolygonQ[𝒫]
