EdgeAdd

EdgeAdd[g,e]

makes a graph by adding the edge e to the graph g.

EdgeAdd[g,{e1,e2,…}]

adds a collection of edges to g.

EdgeAdd[{vw,…},…]

uses rules vw to specify the graph g.

Details and Options

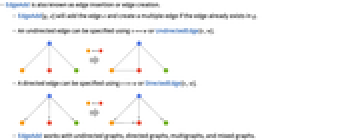

  • EdgeAdd is also known as edge insertion or edge creation.
  • EdgeAdd[g,e] will add the edge e and create a multiple edge if the edge already exists in g.
  • An undirected edge can be specified using vw or UndirectedEdge[v,w].
  • A directed edge can be specified using vw or DirectedEdge[v,w].
  • EdgeAdd works with undirected graphs, directed graphs, multigraphs, and mixed graphs.

Examples

open all close all

Basic Examples  (1)

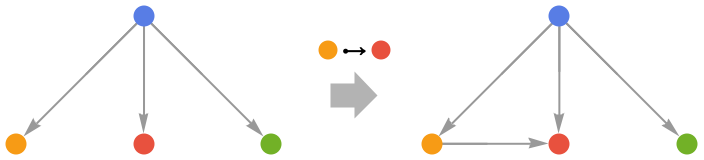

Add an edge to a graph:

Wolfram Language code: EdgeAdd[[image], 24]

Scope  (7)

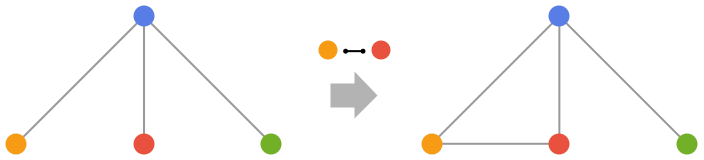

EdgeAdd works with undirected graphs:

Wolfram Language code: EdgeAdd[[image], 56]

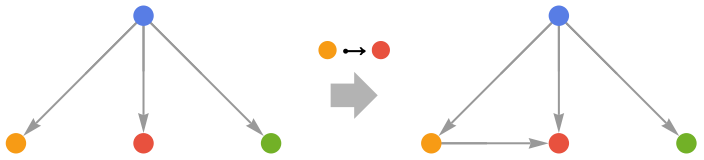

Directed graphs:

Wolfram Language code: EdgeAdd[[image], 56]

Multigraphs:

Wolfram Language code: EdgeAdd[[image], 56]

Mixed graphs:

Wolfram Language code: EdgeAdd[[image], 56]

Add a set of edges to the graph:

Wolfram Language code: EdgeAdd[[image], {14, 56}]

Use rules to specify the graph:

Wolfram Language code: EdgeAdd[{1 -> 3, 2 -> 1, 3 -> 6, 4 -> 6, 1 -> 5, 5 -> 4, 6 -> 1}, 56]

EdgeAdd works with large graphs:

Wolfram Language code: g = GridGraph[{10, 10, 10, 10}];
Wolfram Language code: Timing[h = EdgeAdd[g, 1100];]
Wolfram Language code: EdgeCount /@ {g, h}

Applications  (1)

Perform vertex cleaving:

Wolfram Language code: g = [image];

Duplicating a vertex, ensuring that the new vertex is adjacent to the same vertices as the original:

Wolfram Language code: cleaving = EdgeList[g, 1_] /. (1 -> "New 1");
Wolfram Language code: EdgeAdd[g, cleaving]
