FillingTransform

FillingTransform[image]

gives a version of image with all extended minima filled.

FillingTransform[image,marker]

fills extended minima in regions where at least one corresponding element of marker is nonzero.

FillingTransform[image,h]

fills only extended minima of depth h or less.

Details and Options

  • FillingTransform, also known as morphological filling, can fill holes in binary images or local extended minima in grayscale and color images.

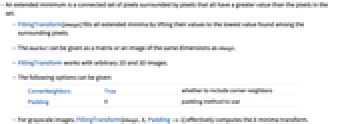

  • An extended minimum is a connected set of pixels surrounded by pixels that all have a greater value than the pixels in the set.
  • FillingTransform[image] fills all extended minima by lifting their values to the lowest value found among the surrounding pixels.
  • The marker can be given as a matrix or an image of the same dimensions as image.
  • FillingTransform works with arbitrary 2D and 3D images.
  • The following options can be given:
  • CornerNeighborsTruewhether to include corner neighbors
    Padding0padding method to use
  • For grayscale images, FillingTransform[image,h,Padding->1] effectively computes the h-minima transform.

Examples

open all close all

Basic Examples  (2)

Fill holes in a binary image:

Wolfram Language code: FillingTransform[[image]]

Fill a hole in a 3D image:

Wolfram Language code: FillingTransform[[image]]

Scope  (3)

Fill all image holes:

Wolfram Language code: FillingTransform[[image]]

Use a marker to specify the holes to be filled:

Wolfram Language code: FillingTransform[[image], [image]]

Compute the h-minima transform of a grayscale image by filling shallow, dark regions:

Wolfram Language code: FillingTransform[[image], .5, Padding -> 1]

Applications  (5)

Fill the holes of objects in an image:

Wolfram Language code: i = [image];
Wolfram Language code: FillingTransform[i]

Find the innermost components in a binary image:

Wolfram Language code: i = [image]; m = SelectComponents[i, Length[#EmbeddedComponents] === 0&]

Use the dilated innermost components to fill the innermost holes:

Wolfram Language code: FillingTransform[i, Dilation[m, 1]]

Use hole-filling as a preprocessing step for image segmentation:

Wolfram Language code: WatershedComponents[FillingTransform[[image], .3]]//Colorize

Remove background features from an astronomical image:

Wolfram Language code: img = [image]; ImageSubtract[img, ColorNegate@FillingTransform@ColorNegate[img]]

Negate the image to fill bright holes (local maxima):

Wolfram Language code: ColorNegate[FillingTransform[ColorNegate[[image]]]]

Properties & Relations  (1)

FillingTransform will not fill holes touching the borders of the image.

Wolfram Language code: FillingTransform[[image]]

Neat Examples  (1)

Create an artistic effect by extracting areas that have local minima:

Wolfram Language code: img = [image];
Wolfram Language code: ImageDifference[img, FillingTransform[img]]//ImageAdjust//ColorNegate
