GaugeFrameElementFunction
GaugeFrameElementFunction
is an option for gauge functions that gives a function to generate the primitives for rendering the gauge frame.
Details

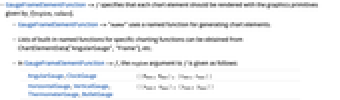

- GaugeFrameElementFunction->f specifies that each chart element should be rendered with the graphics primitives given by f[region,values].
- GaugeFrameElementFunction->"name" uses a named function for generating chart elements.
- Lists of built-in named functions for specific charting functions can be obtained from ChartElementData["AngularGauge","Frame"], etc.
- In GaugeFrameElementFunction->f, the region argument to f is given as follows:
-
AngularGauge,ClockGauge {{θmin,θmax},{rmin,rmax}} HorizontalGauge,VerticalGauge,ThermometerGauge,BulletGauge {{xmin,xmax},{ymin,ymax}}
Examples
Basic Examples (2)
Use a built-in ChartElementFunction:
ChartElementData["AngularGauge", "Frame"]AngularGauge[5.5, {0, 10}, GaugeFrameStyle -> Blue, GaugeFrameElementFunction -> "GlassSector"]ChartElementData["VerticalGauge", "Frame"]VerticalGauge[5.5, {0, 10}, GaugeFrameStyle -> Blue, GaugeFrameElementFunction -> "FadingRectangle"]Construct a custom rendering function:
f[{{tmin_, tmax_}, {rmin_, rmax_}}, ___] := Module[{inpts, outpts},
inpts = Array[rmin{Cos[2π # / 100], Sin[2π # / 100]}&, 100];
outpts = Array[rmax{Cos[2π # / 100], Sin[2π # / 100]}&, 100];
{EdgeForm[Directive[Thick, Darker@Gray]], Gray, FilledCurve[{{Line[inpts]}, {Line[outpts]}}]}]AngularGauge[5.5, {0, 10}, GaugeFrameElementFunction -> f]g[{{xmin_, xmax_}, {ymin_, ymax_}}, ___] := {LightBlue, Rectangle[{xmin, ymin}, {xmax, ymax}, RoundingRadius -> .02]}VerticalGauge[5.5, {0, 10}, GaugeFrameElementFunction -> g]
