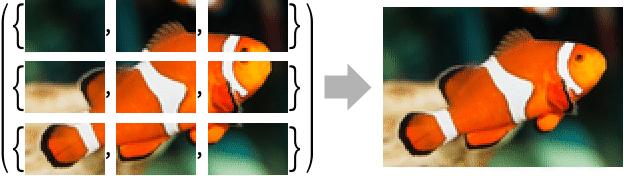

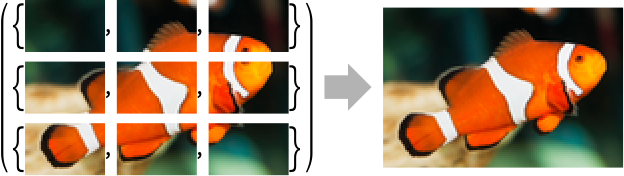

ImageAssemble[{{im11,…,im1n},…,{imm1,…,immn}}]

assembles a single image from an array of images.

ImageAssemble[{{im11,…,im1n},…,{imm1,…,immn}},fitting]

assembles images using the fitting method.

Details and Options
Details and Options Details and Options
Examples
Basic Examples
Scope
Data
Fitting
Options
Background
PaddingSize
Spacings
Applications
Properties & Relations
See Also
Related Guides
Related Workflows
History
Cite this Page

ImageAssemble

ImageAssemble[{{im11,…,im1n},…,{imm1,…,immn}}]

assembles a single image from an array of images.

ImageAssemble[{{im11,…,im1n},…,{imm1,…,immn}},fitting]

assembles images using the fitting method.

Details and Options

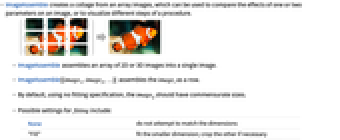

  • ImageAssemble creates a collage from an array images, which can be used to compare the effects of one or two parameters on an image, or to visualize different steps of a procedure.
  • ImageAssemble assembles an array of 2D or 3D images into a single image.
  • ImageAssemble[{image1,image2,…}] assembles the imagei as a row.
  • By default, using no fitting specification, the imageij should have commensurate sizes.

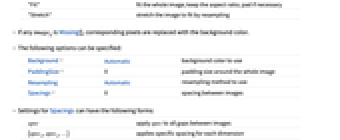

  • Possible settings for fitting include:
  • Nonedo not attempt to match the dimensions
    "Fill"fit the smaller dimension; crop the other if necessary
    "Fit"fit the whole image; keep the aspect ratio; pad if necessary
    "Stretch"stretch the image to fit by resampling
  • If any imageij is Missing[], corresponding pixels are replaced with the background color.
  • The following options can be specified:
  • Background Automaticbackground color to use
    PaddingSize 0padding size around the whole image
    ResamplingAutomaticresampling method to use
    Spacings 0spacing between images
  • Settings for Spacings can have the following forms:
  • specapply spec to all gaps between images
    {specx,specy,…}applies specific spacing for each dimension

Examples

open all close all

Basic Examples  (2)

Assemble a 2D array of images:

Wolfram Language code: ImageAssemble[{ {[image], [image], [image], [image], [image], [image], [image]}, {[image], [image], [image], [image], [image], [image], [image]}, {[image], [image], [image], [image], [image], [image], [image]}, {[image], [image], [image], [image], [image], [image], [image]}, {[image], [image], [image], [image], [image], [image], [image]}}]

Show the result of edge detection using varying radius and threshold values:

Wolfram Language code: ImageAssemble[Table[EdgeDetect[[image], r, t], {r, {2, 4, 6}}, {t, {.01, .05, .1}}], Background -> 1, Spacings -> 5]

Scope  (11)

Data  (7)

Assemble a row of images:

Wolfram Language code: ImageAssemble[{[image], [image]}]

Assemble a column of images:

Wolfram Language code: ImageAssemble[(⁠| | | ---------------------------------------------------------------- | | [image] | | [image] |⁠)]

Assemble an array of images:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠)]

Assemble images of different types and color spaces:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠)]

The data may contain missing elements:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | Missing[] |⁠)]

The rows and columns with only Missing elements are skipped:

Wolfram Language code: ImageAssemble[(⁠| | | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | --------- | | [image] | [image] | Missing[] | | Missing[] | Missing[] | Missing[] | | [image] | [image] | Missing[] |⁠)]

Assemble a list of 3D images:

Wolfram Language code: ImageAssemble[{[image], [image], [image]}]

Fitting  (4)

Assemble images of commensurate sizes:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠)]

Assemble images of different sizes fitting the larger dimension:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), "Fill"]

Assemble images of different sizes fitting the smaller dimension:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), "Fit"]

Assemble images of different sizes by resizing them:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), "Stretch"]

Options  (9)

Background  (2)

The value of Background is used for whole-image padding as well as spacing. By default, 0 is used:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), PaddingSize -> 5, Spacings -> 5]

Specify the background color:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), PaddingSize -> 5, Spacings -> 5, Background -> Red]

Setting Background to Transparent will result in an image with an alpha channel:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), PaddingSize -> 5, Spacings -> 5, Background -> Transparent]
Wolfram Language code: Information[%, "Transparency"]

PaddingSize  (2)

By default, the whole image is not padded:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠)]

Use PaddingSize to pad the whole image:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), PaddingSize -> 5]

Use Background to specify the padding scheme:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), PaddingSize -> 5, Background -> Red]

Specify a different padding size for each side in the form {{left,right},{bottom,top}}:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), PaddingSize -> {{2, 4}, {6, 8}}]

Spacings  (5)

By default, no spacing is added between images:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠)]

Specify the amount of spacings:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), Spacings -> 5]

Specify different spacings in and directions:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), Spacings -> {10, 5}]

The value of Background specifies the color of spacings between images:

Wolfram Language code: ImageAssemble[(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), Spacings -> 5, Background -> Red]

Specify spacings in three dimensions for arrays of rank 3:

Wolfram Language code: ImageAssemble[{(⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠), (⁠| | | | ---------------------------------------------------------------- | ---------------------------------------------------------------- | | [image] | [image] | | [image] | [image] |⁠)}, Spacings -> 3]

Applications  (7)

Search the web for some images:

Wolfram Language code: list = WebImageSearch["fish", "Thumbnails", MaxItems -> 4]

Assemble images by cropping them to commensurate sizes:

Wolfram Language code: ImageAssemble[Partition[list, 2], "Fill", Spacings -> 5, Background -> White]

Assemble different steps of fractal sets:

Wolfram Language code: ImageAssemble[ Table[Rasterize[mesh[i], RasterSize -> 100], {mesh, {SierpinskiMesh, MengerMesh}}, {i, 4}], Spacings -> 3, PaddingSize -> 3, Background -> Gray]

Assemble a collection of Delacroix's artworks:

Wolfram Language code: paintings = EntityValue[Entity["Person", "EugeneDelacroix::77vj8"], EntityProperty["Person", "NotableArtworks"]]; data = DeleteMissing[EntityValue[paintings, "Image"]]; ImageAssemble[Partition[data, 5], "Fill", Spacings -> 3, PaddingSize -> 3, Background -> White]

Assemble images smoothly by assembling at different scales using image pyramids:

Wolfram Language code: {apple, orange} = {[image], [image]};
Wolfram Language code: splitMerge[i1_Image, i2_Image] := With[{c = Floor[1 / 2 First@ImageDimensions[i1]]}, ImageAssemble[{{ImageTake[i1, All, {1, c}], ImageTake[i2, All, {c + 1, -1}]}}]]

Create image pyramids:

Wolfram Language code: pyramids = Map[ImagePyramid[#, "Laplacian", {2, 2}]&, {apple, orange}];

Merge at all scales:

Wolfram Language code: pFruit = ImagePyramidApply[splitMerge, pyramids]

Reconstruct the image:

Wolfram Language code: InverseImagePyramid[pFruit]

Compare with the single scale assembly:

Wolfram Language code: splitMerge[apple, orange]

Assemble together different effects applied to an image:

Wolfram Language code: effects = {"Decolorization", "Comics", "Sepia", "Embossing", "ColorBoosting", "EdgeStylization", "Jitter", "OilPainting"};
Wolfram Language code: i = [image];ImageAssemble[ArrayReshape[ImageEffect[i, #]& /@ effects, {2, 4}], Spacings -> 2]

Explore the effect of an increasing filter radius on successive slices of an image:

Wolfram Language code: i = [image]; ImageAssemble[MapIndexed[Blur[#1, 2Last[#2]]&, ImagePartition[i, Scaled[{1 / 6, 1}]], {2}], Spacings -> 1]

Detect and highlight object in frames from a video:

Wolfram Language code: v = Video[CloudObject["https://www.wolframcloud.com/obj/documentation/dog"]]
Wolfram Language code: list = VideoFrameList[v, 100];
Wolfram Language code: RandomSample[list, 3]

Check which frame contains a dog:

Wolfram Language code: check = ImageContainsQ[#, Entity["Concept", "CanisFamiliaris::597qc"]]& /@ list;

Create a visualization of which frames contain a dog:

Wolfram Language code: ImageAssemble[Partition[MapThread[ImageAdd[ImageResize[#, 50], #2 {0, .4, 0}]&, {list, Boole[check]}], 10], Spacings -> 1]

Properties & Relations  (2)

ImageAssemble and ImagePartition are reverse operations:

Wolfram Language code: i = RandomImage[1, {10, 10}]; i == ImageAssemble[ImagePartition[i, 5]]

By default, ImageAssemble requires images to have commensurate sizes:

Wolfram Language code: list = {[image], [image], [image]};
Wolfram Language code: ImageAssemble[list]

Use the fitting argument to preprocess the set:

Wolfram Language code: ImageAssemble[list, "Fit"]

Use ConformImages to perform custom fitting:

Wolfram Language code: ImageAssemble[ConformImages[list, 100, "Pad"]]
