ImageCorrespondingPoints

ImageCorrespondingPoints[image1,image2]

finds a set of matching interest points in image1 and image2 and returns their pixel coordinates.

Details and Options

  • ImageCorrespondingPoints uses ImageKeypoints to find candidate corresponding points.
  • ImageCorrespondingPoints[image1,image2] returns an expression of the form {points1,points2}, where the pointsi are lists of pixel coordinates representing the matching points in imagei.
  • The following options can be specified:
  • KeypointStrength Automaticminimum strength of the keypoints
    Masking Allregion of interest
    MaxFeatures Automaticmaximum number of keypoints
    Method Automaticthe type of keypoint to use
    TransformationClass Nonegeometrical relation between points
  • With the setting Masking->roi, the set of points is restricted so that the returned points points1 of image1 all lie within the region of interest.
  • With the setting MaxFeatures->n, at most n corresponding points with largest average keypoint strength are returned.
  • By default, a suitable keypoint type is used to find corresponding points. Using Methodmethod, a specific keypoint type or a list of types can be specified.

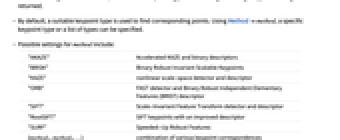

  • Possible settings for method include:
  • "AKAZE"Accelerated KAZE and binary descriptors
    "BRISK"Binary Robust Invariant Scalable Keypoints
    "KAZE"nonlinear scale-space detector and descriptor
    "ORB"FAST detector and Binary Robust Independent Elementary Features (BRIEF) descriptor
    "SIFT"Scale-Invariant Feature Transform detector and descriptor
    "RootSIFT"SIFT keypoints with an improved descriptor
    "SURF"Speeded-Up Robust Features
    {method1,method2,…}combination of various keypoint correspondences
  • Possible settings for TransformationClass include:
  • Noneno geometric constraints
    "Translation"translation only
    "Rigid"translation and rotation
    "Similarity"translation, rotation, and scaling
    "Affine"linear transformation and translation
    "Perspective"linear fractional transformation
    "Epipolar"epipolar transformation, mapping a point in one image to a line in the other image

Examples

open all close all

Basic Examples  (1)

Corresponding points of two different images of the same object:

Wolfram Language code: ImageCorrespondingPoints[[image], [image]]

Scope  (3)

Corresponding points in binary images:

Wolfram Language code: ImageCorrespondingPoints[[image], [image]]

Corresponding points in grayscale images:

Wolfram Language code: ImageCorrespondingPoints[[image], [image]]

Corresponding points in color images:

Wolfram Language code: ImageCorrespondingPoints[[image], [image]]

Options  (16)

KeypointStrength  (3)

By default, all keypoints are used in finding corresponding points:

Wolfram Language code: ImageCorrespondingPoints[[image], [image]]

Use only keypoints with individual strength greater or equal to a given threshold:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], KeypointStrength -> .001]

Increasing the threshold typically results in detecting fewer corresponding points:

Wolfram Language code: {i1, i2} = {[image], [image]};
Wolfram Language code: ListLinePlot[Table[{s, Length[ImageCorrespondingPoints[i1, i2, KeypointStrength -> s][[1]]]}, {s, .0001, .005, .0001}], Frame -> True, FrameLabel -> {"threshold", "number of corresponding points"}]

Masking  (1)

By default, with Masking->All, all detected corresponding points are returned:

Wolfram Language code: {i1, i2} = {[image], [image]};
Wolfram Language code: MapThread[HighlightImage[#1, #2]&, {{i1, i2}, ImageCorrespondingPoints[i1, i2]}]

With Masking->maskimage, corresponding points of image1 should lie within maskimage:

Wolfram Language code: mask = [image]; c = ImageCorrespondingPoints[i1, i2, Masking -> mask];

Display the detected correspondences for the first image:

Wolfram Language code: HighlightImage[i1, {c[[1]], Orange, mask}]

MaxFeatures  (2)

Return the best correspondences:

Wolfram Language code: c = ImageCorrespondingPoints[[image], [image], MaxFeatures -> 5]

The number of returned correspondences may be less than the value of the MaxFeatures option:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], KeypointStrength -> .001, MaxFeatures -> 5]//First//Length

Method  (3)

By default, "SURF" keypoints are used to find correspondences:

Wolfram Language code: ImageCorrespondingPoints[[image], [image]]

Use "KAZE" keypoints:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], Method -> "KAZE"]

Use a combination of "SURF" and "BRISK" keypoints:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], Method -> {"SURF", "BRISK"}]//Short

TransformationClass  (7)

By default, the two detected point sets are not constrained geometrically:

Wolfram Language code: ImageCorrespondingPoints[[image], [image]]//First//Length

Constrain the pair of point sets to be related by an epipolar transformation:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], TransformationClass -> "Epipolar"]//First//Length

Constrain the pair of point sets to be related by a linear fractional transformation:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], TransformationClass -> "Perspective"]//First//Length

Constrain the pair of point sets to be related by an affine transformation:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], TransformationClass -> "Affine"]//First//Length

Constrain the pair of point sets to be related by a similarity transformation:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], TransformationClass -> "Similarity"]//First//Length

Constrain the pair of point sets to be related by a rigid transformation:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], TransformationClass -> "Rigid"]//First//Length

Constrain the pair of point sets to be related by a translation:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], TransformationClass -> "Translation"]

Applications  (3)

Find matching positions for stereovision applications:

Wolfram Language code: ImageCorrespondingPoints[[image], [image], TransformationClass -> "Perspective"]

Extract the matching patches from two images:

Wolfram Language code: i1 = [image];i2 = [image]; matches = ImageCorrespondingPoints[i1, i2, "Transformation" -> "Perspective"]; MapThread[ImageTrim, {{i1, i2}, matches}]

Find the rotation angle between two images:

Wolfram Language code: i1 = [image];i2 = [image]; matches = ImageCorrespondingPoints[i1, i2]; a1 = ArcTan@@@(# - 1 / 2 * ImageDimensions@i1& /@ matches[[1]]); a2 = ArcTan@@@(# - 1 / 2 * ImageDimensions@i2& /@ matches[[2]]); RootMeanSquare[Mod[a1 - a2, 2 Pi]] / Degree

Properties & Relations  (1)

ImageCorrespondingPoints converts all images to grayscale:

Wolfram Language code: {i1, i2} = {[image], [image]};
Wolfram Language code: ImageCorrespondingPoints[i1, i2] == ImageCorrespondingPoints[Sequence@@ColorConvert[{i1, i2}, "Grayscale"]]

Neat Examples  (1)

Find and visualize matching points in two images of the Moon:

Wolfram Language code: images = { [image], [image]}; matches = ImageCorrespondingPoints@@images; MapThread[Show[#1, Graphics[{Yellow, MapIndexed[Inset[#2[[1]], #1]& , #2]}]]&, {images, matches}]
