IntervalMarkersStyle

is an option for plotting functions that specifies styles in which uncertainty intervals are drawn.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
See Also
Related Guides
History
Cite this Page

IntervalMarkersStyle

IntervalMarkersStyle

is an option for plotting functions that specifies styles in which uncertainty intervals are drawn.

Details

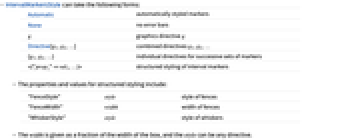

  • IntervalMarkersStyle can take the following forms:
  • Automaticautomatically styled markers
    Noneno error bars
    ggraphics directive g
    Directive[g1,g2,…]combined directives g1,g2,…
    {g1,g2,…}individual directives for successive sets of markers
    <|"prop1"val1,…|>structured styling of interval markers
  • The properties and values for structured styling include:
  • "FenceStyle"stylestyle of fences
    "FenceWidth"widthwidth of fences
    "WhiskerStyle"stylestyle of whiskers
  • The width is given as a fraction of the width of the box, and the style can be any directive.
  • By default, IntervalMarkersStyle inherits from PlotStyle.

Examples

open all close all

Basic Examples  (3)

Uncertainties automatically inherit the plot style:

Wolfram Language code: ListPlot[Table[Around[RandomReal[20], 1], 10], PlotStyle -> StandardGray]

Interval marker styles are different for each dataset:

Wolfram Language code: ListPlot[{Table[Around[RandomReal[20], 1], 10], Table[Around[RandomReal[20], 1], 10]}]

Specify the style for uncertainties:

Wolfram Language code: ListPlot[Table[Around[RandomReal[20], 1], 10], IntervalMarkersStyle -> Red]

Scope  (5)

Use different styles for different sets:

Wolfram Language code: ListPlot[{Table[Around[RandomReal[20], 1], 10], Table[Around[RandomReal[20], 1], 10]}, IntervalMarkersStyle -> {Red, Blue}]

Customize the style for uncertainties:

Wolfram Language code: ListPlot[Table[Around[RandomReal[20], 1], 10], IntervalMarkersStyle -> <|"FenceStyle" -> Red, "WhiskerStyle" -> Green|>]
Wolfram Language code: BarChart[Table[Around[RandomReal[20], {1, 1}], 10], IntervalMarkersStyle -> <|"WhiskerStyle" -> Red|>]

Use bands to visualize uncertainty continuously:

Wolfram Language code: ListPlot[Table[Around[RandomReal[20], 1], 10], IntervalMarkers -> "Bands", IntervalMarkersStyle -> Pink]

Use ellipses to visualize uncertainty as an area:

Wolfram Language code: ListPlot[Table[Around[RandomReal[20], {{1, 1}, {1, 1}}], 10], IntervalMarkers -> "Ellipses", PlotRange -> All, IntervalMarkersStyle -> Thick]
