MarkovProcessProperties

gives a summary of properties for the finite state Markov process mproc.

MarkovProcessProperties[mproc,"property"]

gives the specified "property" for the process mproc.

Details

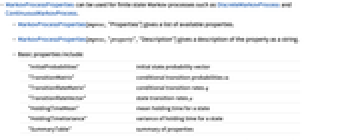

MarkovProcessProperties can be used for finite state Markov processes such as DiscreteMarkovProcess and ContinuousMarkovProcess.
MarkovProcessProperties[mproc,"Properties"] gives a list of available properties.
MarkovProcessProperties[mproc,"property","Description"] gives a description of the property as a string.
Basic properties include:

	"InitialProbabilities"	initial state probability vector
	"TransitionMatrix"	conditional transition probabilities m
	"TransitionRateMatrix"	conditional transition rates q
	"TransitionRateVector"	state transition rates μ
	"HoldingTimeMean"	mean holding time for a state
	"HoldingTimeVariance"	variance of holding time for a state
	"SummaryTable"	summary of properties

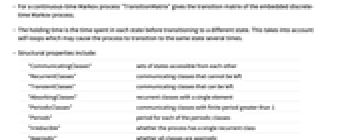

For a continuous-time Markov process "TransitionMatrix" gives the transition matrix of the embedded discrete-time Markov process.
The holding time is the time spent in each state before transitioning to a different state. This takes into account self-loops which may cause the process to transition to the same state several times.
Structural properties include:

	"CommunicatingClasses"	sets of states accessible from each other
	"RecurrentClasses"	communicating classes that cannot be left
	"TransientClasses"	communicating classes that can be left
	"AbsorbingClasses"	recurrent classes with a single element
	"PeriodicClasses"	communicating classes with finite period greater than 1
	"Periods"	period for each of the periodic classes
	"Irreducible"	whether the process has a single recurrent class
	"Aperiodic"	whether all classes are aperiodic
	"Primitive"	whether the process is irreducible and aperiodic

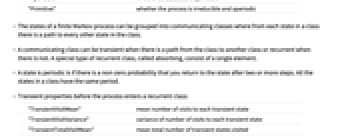

The states of a finite Markov process can be grouped into communicating classes where from each state in a class there is a path to every other state in the class.
A communicating class can be transient when there is a path from the class to another class or recurrent when there is not. A special type of recurrent class, called absorbing, consist of a single element.
A state is periodic is if there is a non-zero probability that you return to the state after two or more steps. All the states in a class have the same period.
Transient properties before the process enters a recurrent class:

	"TransientVisitMean"	mean number of visits to each transient state
	"TransientVisitVariance"	variance of number of visits to each transient state
	"TransientTotalVisitMean"	mean total number of transient states visited

A Markov process will eventually enter a recurrent class. The transient properties characterize how many times each transient state is visited or how many different transient states are visited.
Limiting properties include:

	"ReachabilityProbability"	probability of ever reaching a state
	"LimitTransitionMatrix"	Cesaro limit of the transition matrix
	"Reversible"	whether the process is reversible

If a property is not available, this is indicated by Missing["reason"].

Examples

open all close all

Basic Examples (2)

Summary table of properties:

Wolfram Language code:

proc = DiscreteMarkovProcess[3, {{1 / 2, 1 / 2, 0, 0}, {1 / 2, 1 / 2, 0, 0}, {1 / 4, 1 / 4, 1 / 4, 1 / 4}, {0, 0, 0, 1}}];

Wolfram Language code: Graph[proc]

Wolfram Language code: MarkovProcessProperties[proc]

Find the values of a specific property:

Wolfram Language code: proc = ContinuousMarkovProcess[1, {{-a, a}, {0, 0}}];

Wolfram Language code: MarkovProcessProperties[proc, "RecurrentClasses"]

Description of the property:

Wolfram Language code: MarkovProcessProperties[proc, "RecurrentClasses", "Description"]

Scope (5)

Find the communicating classes, highlighted in the graph through different colors:

Wolfram Language code:

proc = DiscreteMarkovProcess[1, {{0, 1 / 3, 0, 2 / 3, 0}, {1 / 2, 0, 0, 0, 1 / 2}, {0, 0, 1 / 2, 1 / 2, 0}, {0, 0, 1 / 2, 1 / 2, 0}, {0, 0, 0, 0, 1}}];

Wolfram Language code: gr = Graph[proc, GraphLayout -> "LayeredDrawing"]

Wolfram Language code: MarkovProcessProperties[proc, "CommunicatingClasses"]

Wolfram Language code: ConnectedComponents[gr]

The process is not irreducible:

Wolfram Language code: MarkovProcessProperties[proc, "Irreducible"]

Wolfram Language code: ConnectedGraphQ[gr]

Find the recurrent classes, represented by square and circular vertices in the graph:

Wolfram Language code: MarkovProcessProperties[proc, "RecurrentClasses"]

Wolfram Language code: Select[ConnectedComponents[gr], Complement[VertexOutComponent[gr, #], #] === {}&]

Find the transient classes, represented by diamond vertices in the graph:

Wolfram Language code: MarkovProcessProperties[proc, "TransientClasses"]

Wolfram Language code: Select[ConnectedComponents[gr], Complement[VertexOutComponent[gr, #], #] =!= {}&]

Find the absorbing classes, represented by square vertices in the graph:

Wolfram Language code: MarkovProcessProperties[proc, "AbsorbingClasses"]

Wolfram Language code: Position[VertexOutDegree[SimpleGraph[gr]], 0]

Define a Markov process with self-loops:

Wolfram Language code: proc1 = DiscreteMarkovProcess[1, {{0, 1 / 3, 0, 2 / 3}, {1, 0, 0, 0}, {0, 0, 1 / 2, 1 / 2}, {0, 0, 1 / 2, 1 / 2}}];

Wolfram Language code: Graph[proc1]

The self-loops make the class aperiodic:

Wolfram Language code: MarkovProcessProperties[proc1, "PeriodicClasses"]

Markov process with no self-loops:

Wolfram Language code: proc2 = DiscreteMarkovProcess[1, {{0, 1 / 3, 0, 2 / 3}, {1, 0, 0, 0}, {0, 0, 0, 1}, {0, 0, 1, 0}}];

Wolfram Language code: Graph[proc2]

Here both classes are periodic:

Wolfram Language code: MarkovProcessProperties[proc2, "PeriodicClasses"]

Summary table of properties for a continuous-time Markov process:

Wolfram Language code: proc = ContinuousMarkovProcess[1, With[{λ = 3, μ = 2}, {{-λ, λ, 0}, {μ, -λ - μ, λ}, {0, μ, -μ}}]];

Wolfram Language code: Graph[proc]

Wolfram Language code: MarkovProcessProperties[proc]

Obtain the value for a specific property for a continuous Markov chain:

Wolfram Language code: proc = ContinuousMarkovProcess[1, With[{λ = 3, μ = 2}, {{-λ, λ, 0}, {μ, -λ - μ, λ}, {0, μ, -μ}}]];

Wolfram Language code: MarkovProcessProperties[proc, "TransitionMatrix"]//MatrixForm

Wolfram Language code: ListLinePlot[RandomFunction[proc, {0, 5}]["Paths"], Ticks -> {Automatic, Range[3]}]

Wolfram Language code:

ListLinePlot[RandomFunction[DiscreteMarkovProcess[1, MarkovProcessProperties[proc, "TransitionMatrix"]], {0, 10}]["Paths"], Ticks -> {Automatic, Range[3]}]

Find the conditional mean number of total transitions starting in state 1 and ending in state 4:

Wolfram Language code: 𝒫 = ContinuousMarkovProcess[{1, 0, 0, 0}, {{-3, 1, 2, 0}, {3, -6, 2, 1}, {4, 2, -9, 3}, {0, 0, 0, 0}}];

Wolfram Language code: MarkovProcessProperties[𝒫, "TransitionCount"][[4]][100] / Probability[x[100] == 4, x𝒫]

Wolfram Language code: N[%]//Quiet

Compare with the results from simulation:

Wolfram Language code:

data = RandomFunction[𝒫, {0, 100}, 4 * 10 ^ 4, Method -> {Automatic, "StoppingFunction" -> (#3 =!= 4&)}]["ValueList"];

Wolfram Language code: N[Mean[Length[#] - 1& /@ data]]

Find the conditional mean number of transitions from state 2 to state 3:

Wolfram Language code: 𝒫 = ContinuousMarkovProcess[{1, 0, 0, 0}, {{-3, 1, 2, 0}, {3, -6, 2, 1}, {4, 2, -9, 3}, {0, 0, 0, 0}}];

Wolfram Language code: MarkovProcessProperties[𝒫, {"TransitionCount", {{2, 3}}}][[4]][100] / Probability[x[100] == 4, x𝒫]

Wolfram Language code: N[%]//Quiet

Compare with the results from simulation:

Wolfram Language code: data = RandomFunction[𝒫, {0, 10 ^ 3}, 10 ^ 4, Method -> {Automatic, "StoppingFunction" -> (#3 =!= 4&)}]["ValueList"];

Wolfram Language code: N[Mean[Count[Partition[data[[#]], 2, 1], {2, 3}]& /@ Range[Length[data]]]]

Applications (2)

A gambler starts with $3 and bets $1 at each step. He wins $1 with a probability of 0.4:

Wolfram Language code:

GamblersRuin[p_, n_] := SparseArray[{{1, 1} -> 1, {n + 1, n + 1} -> 1, {i_, j_} /; 1 < i < n + 1 && j == i + 1 -> p, {i_, j_} /; 1 < i < n + 1 && j == i - 1 -> 1 - p}, {n + 1, n + 1}]

Wolfram Language code: gamblerwealth = DiscreteMarkovProcess[4, GamblersRuin[0.4, 7]];

Find the expected number of times the gambler has units:

Wolfram Language code:

Transpose[{MarkovProcessProperties[gamblerwealth, "TransientClasses"][[1]] - 1, MarkovProcessProperties[gamblerwealth, "TransientVisitMean"]}]//Grid

Verify the answer using simulation:

Wolfram Language code:

data = RandomFunction[gamblerwealth, {0, 10 ^ 3}, 10 ^ 4, Method -> {Automatic, "StoppingFunction" -> Function[{len, pos}, len < 1001 && pos ≠ 1 && pos ≠ 8]}]["ValueList"];

Wolfram Language code: Table[Mean[Count[#, i]& /@ data], {i, 2, 7}]//N

Find the expected time until the gambler wins $7 or goes broke:

Wolfram Language code: Mean[FirstPassageTimeDistribution[gamblerwealth, {1, 8}]]

Total states visited before the gambler wins $7 or goes broke:

Wolfram Language code: MarkovProcessProperties[gamblerwealth, "TransientTotalVisitMean"]

Verify the answer using simulation:

Wolfram Language code: data = DeleteDuplicates /@ RandomFunction[gamblerwealth, {0, 10 ^ 2}, 4 * 10 ^ 3]["ValueList"];

Wolfram Language code: Mean[Length[#] - 1& /@ data]//N

In a game of tennis between two players, suppose the probability of the server winning a point is . There are 17 possible states:

Wolfram Language code:

states = {"GameA", "GameB", "Deux", "AdvA", "AdvB", "40-15", "15-40", "40-0", "30-15", "15-30", "0-40", "30-0", "15-15", "0-30", "15-0", "0-15", "0-0"};

Visualize the random walk graph for :

Wolfram Language code:

proc = With[{p = 3 / 5, q = 2 / 5}, DiscreteMarkovProcess[17, (⁠|   |   |   |   |   |   |   |   |   |   |   |   |   |   |   |   |   |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 0 | p | q | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| p | 0 | q | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | q | p | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| p | 0 | 0 | q | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | q | 0 | 0 | p | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| p | 0 | 0 | 0 | 0 | q | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | q | 0 | 0 | p | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | p | 0 | 0 | 0 | q | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | q | 0 | 0 | 0 | 0 | p | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | p | q | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | p | q | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | p | q | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | p | q | 0 | 0 | 0 | 0 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | p | q | 0 | 0 | 0 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | p | q | 0 |⁠)]];

Wolfram Language code:

Graph[proc, VertexSize -> Large, VertexLabels -> Thread[Range[17] -> Map[Placed[Style[#, {Bold}], Center]&, states]], ImageSize -> Large, ImagePadding -> 25]

Find the probability of the server winning the game if :

Wolfram Language code: MarkovProcessProperties[proc, "ReachabilityProbability"][[1]]//N

Wolfram Language code: PDF[proc[Infinity], 1]//N

Find the mean time to absorption, that is, the number of points played:

Wolfram Language code: Total[MarkovProcessProperties[proc, "TransientVisitMean"]]//N

Wolfram Language code: N[Mean[FirstPassageTimeDistribution[proc, {1, 2}]]]

Find the mean number of states visited:

Wolfram Language code: MarkovProcessProperties[proc, "TransientTotalVisitMean"]//N

Find the average number of times the score will be tied at deuce:

Wolfram Language code: MarkovProcessProperties[proc, "TransientVisitMean"][[1]]//N

Verify the answer using simulation:

Wolfram Language code:

Mean[Count[#, 3]& /@ RandomFunction[proc, {0, 10 ^ 3}, 10 ^ 4, Method -> {Automatic, "StoppingFunction" -> Function[{len, pos}, len < 1001 && pos ≠ 1 && pos ≠ 2]}]["ValueList"]]//N

Properties & Relations (1)

The transition matrix of this Markov process is not irreducible:

Wolfram Language code:

proc = DiscreteMarkovProcess[i, {{(1/2), (1/2), 0, 0, 0}, {(1/3), (2/3), 0, 0, 0}, {0, (1/3), (2/3), 0, 0}, {0, 0, 0, 0, 1}, {0, 0, 0, 1, 0}}];

Wolfram Language code: MarkovProcessProperties[proc, "Irreducible"]

Hence the stationary distribution depends on the initial state probabilities:

Wolfram Language code:

StationaryDistribution[DiscreteMarkovProcess[1, {{(1/2), (1/2), 0, 0, 0}, {(1/3), (2/3), 0, 0, 0}, {0, (1/3), (2/3), 0, 0}, {0, 0, 0, 0, 1}, {0, 0, 0, 1, 0}}]]

Wolfram Language code:

StationaryDistribution[DiscreteMarkovProcess[4, {{(1/2), (1/2), 0, 0, 0}, {(1/3), (2/3), 0, 0, 0}, {0, (1/3), (2/3), 0, 0}, {0, 0, 0, 0, 1}, {0, 0, 0, 1, 0}}]]

Possible Issues (1)

Some property values may not be available:

Wolfram Language code: MarkovProcessProperties[DiscreteMarkovProcess[1, {{1 / 3, 2 / 3}, {1 / 2, 1 / 2}}], "TransitionRateVector"]

This property is available only for continuous Markov processes:

Wolfram Language code: MarkovProcessProperties[ContinuousMarkovProcess[1, {{-2 / 3, 2 / 3}, {1 / 2, -1 / 2}}], "TransitionRateVector"]
