MeanAbsoluteLossLayer

MeanAbsoluteLossLayer[]

represents a loss layer that computes the mean absolute loss between the "Input" port and "Target" port.

Details and Options

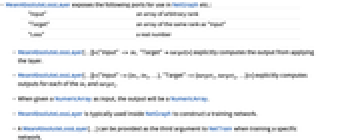

  • MeanAbsoluteLossLayer exposes the following ports for use in NetGraph etc.:
  • "Input"an array of arbitrary rank
    "Target"an array of the same rank as "Input"
    "Loss"a real number
  • MeanAbsoluteLossLayer[…][<|"Input" -> in, "Target"target|>] explicitly computes the output from applying the layer.
  • MeanAbsoluteLossLayer[…][<|"Input"->{in1,in2,…},"Target"->{target1,target2,…}|>] explicitly computes outputs for each of the ini and targeti.
  • When given a NumericArray as input, the output will be a NumericArray.
  • MeanAbsoluteLossLayer is typically used inside NetGraph to construct a training network.
  • A MeanAbsoluteLossLayer[…] can be provided as the third argument to NetTrain when training a specific network.

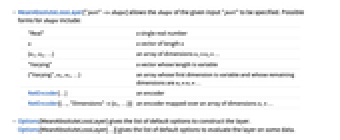

  • MeanAbsoluteLossLayer["port"->shape] allows the shape of the given input "port" to be specified. Possible forms for shape include:
  • "Real"a single real number
    na vector of length n
    {n1,n2,…}an array of dimensions n1×n2×…
    "Varying"a vector whose length is variable
    {"Varying",n2,n3,…}an array whose first dimension is variable and whose remaining dimensions are n2×n3×…
    NetEncoder[…]an encoder
    NetEncoder[{…,"Dimensions"{n1,…}}]an encoder mapped over an array of dimensions n1×…
  • Options[MeanAbsoluteLossLayer] gives the list of default options to construct the layer. Options[MeanAbsoluteLossLayer[…]] gives the list of default options to evaluate the layer on some data.
  • Information[MeanAbsoluteLossLayer[…]] gives a report about the layer.
  • Information[MeanAbsoluteLossLayer[…],prop] gives the value of the property prop of MeanAbsoluteLossLayer[…]. Possible properties are the same as for NetGraph.

Examples

open all close all

Basic Examples  (3)

Create a MeanAbsoluteLossLayer layer:

Wolfram Language code: MeanAbsoluteLossLayer[]

Create a MeanAbsoluteLossLayer that takes length-3 vectors:

Wolfram Language code: loss = MeanAbsoluteLossLayer["Input" -> {3}]

Apply the layer to data:

Wolfram Language code: loss[<|"Input" -> {1, 2, 3}, "Target" -> {3, 2, 1}|>]

Create a NetGraph containing a MeanAbsoluteLossLayer:

Wolfram Language code: net = NetGraph[{ElementwiseLayer[Tanh], MeanAbsoluteLossLayer[]}, {1 -> NetPort[2, "Input"]}]

Apply the net to input data:

Wolfram Language code: net[<|"Input" -> {{1, 2}, {3, 5}, {2, 2}}, "Target" -> {{1, 3}, {5, 6}, {4, 2}}|>]

Scope  (4)

Arguments  (1)

Create a MeanAbsoluteLossLayer:

Wolfram Language code: loss = MeanAbsoluteLossLayer[]

Apply the MeanAbsoluteLossLayer to a pair of matrices:

Wolfram Language code: loss[<|"Input" -> {{1, 2, 3}, {4, 5, 6}}, "Target" -> {{1, 1, 0}, {0, 1, 1}}|>]

Apply the MeanAbsoluteLossLayer to a pair of vectors:

Wolfram Language code: loss[<|"Input" -> {1, 2, 3}, "Target" -> {1, 1, 0}|>]

Apply the MeanAbsoluteLossLayer to a pair of numbers:

Wolfram Language code: loss[<|"Input" -> 3, "Target" -> 2|>]

Ports  (3)

Create a MeanAbsoluteLossLayer that assumes the input data are vectors of length 2:

Wolfram Language code: loss = MeanAbsoluteLossLayer["Input" -> {2}]

Thread the layer across a batch of inputs:

Wolfram Language code: loss[<|"Input" -> {{1, 2}, {3, 5}, {2, 2}}, "Target" -> {{1, 3}, {5, 6}, {4, 2}}|>]

Create a MeanAbsoluteLossLayer that takes two variable-length vectors:

Wolfram Language code: loss = MeanAbsoluteLossLayer["Input" -> "Varying"]

Apply the layer to an input and target vector:

Wolfram Language code: loss[<|"Input" -> {1, 3, 5}, "Target" -> {2, 3, 4}|>]

Thread the layer over a batch of input and target vectors:

Wolfram Language code: loss[<|"Input" -> {{1, 3, 5}, {2, 2}}, "Target" -> {{2, 3, 4}, {2, 4}}|>]

Create a MeanAbsoluteLossLayer that takes two images as input:

Wolfram Language code: loss = MeanAbsoluteLossLayer["Input" -> NetEncoder["Image"], "Target" -> NetEncoder["Image"]]

Apply the layer to two dissimilar images:

Wolfram Language code: loss[<|"Input" -> [image], "Target" -> [image]|>]

Apply the layer to two dissimilar images:

Wolfram Language code: loss[<|"Input" -> [image], "Target" -> [image]|>]

Applications  (1)

Define a single-layer neural network that takes in scalar numeric values and produces scalar numeric values, and train this network using a MeanAbsoluteLossLayer:

Wolfram Language code: trained = NetTrain[LinearLayer[], {1 -> 1.9, 2 -> 4.1, 3 -> 6.0, 4 -> 8.1}, LossFunction -> MeanAbsoluteLossLayer[]]

Predict the value of a new input:

Wolfram Language code: trained[2.1]

Properties & Relations  (2)

MeanAbsoluteLossLayer computes:

Wolfram Language code: meanAbsoluteLoss = N[Mean[Flatten[Abs[#Input - #Target]]]]&;

Compare the output of the layer and the definition on an example:

Wolfram Language code: data = <|"Input" -> {1, 2.23, 3}, "Target" -> {3, 2, 1}|>; MeanAbsoluteLossLayer[][data] meanAbsoluteLoss[data]

MeanAbsoluteLossLayer effectively computes a normalized version of ManhattanDistance:

Wolfram Language code: ManhattanDistance[{1, 2, 3}, {3, 2, 5}] / 3.
Wolfram Language code: MeanAbsoluteLossLayer[][<|"Input" -> {1, 2, 3}, "Target" -> {3, 2, 5}|>]
