ParentEdgeShapeFunction

ParentEdgeShapeFunction

is an option for Tree and related functions that specifies a function to use to generate primitives for rendering edges.

Details

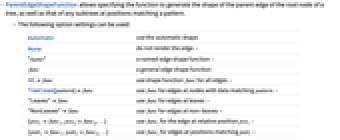

  • ParentEdgeShapeFunction allows specifying the function to generate the shape of the parent edge of the root node of a tree, as well as that of any subtrees at positions matching a pattern.
  • The following option settings can be used:
  • Automaticuse the automatic shape
    Nonedo not render the edge »
    "name"a named edge shape function »
    funca general edge shape function
    Allfuncuse shape function func for all edges »
    TreeCases[pattern]funcuse func for edges at nodes with data matching pattern »
    "Leaves"funcuse func for edges at leaves »
    "NonLeaves"funcuse func for edges at non-leaves »
    {pos1func1,pos2func2,…}use funci for the edge at relative position posi »
    {patt1func1,patt2func2,…}use funci for edges at positions matching patti »
  • Edge style specifications are effectively applied in the order ParentEdgeStyle, ParentEdgeStyleFunction and ParentEdgeShapeFunction, with later specifications overriding the earlier ones.
  • ParentEdgeShapeFunctionfunc specifies that the parent edge of the root node should be rendered with the primitives provided by func[{{x1,y1},{x2,y2}},data], where {{x1,y1},{x2,y2}} is a line segment and data is the data in the root.

Examples

open all close all

Basic Examples  (4)

Do not render an individual edge:

Wolfram Language code: Tree[0, {Tree[1, {2, 3}, ParentEdgeShapeFunction -> None]}]

Specify a list of edge shape functions:

Wolfram Language code: Tree[0, {Tree[1, {2, 3}, ParentEdgeShapeFunction -> {{} -> None, {1} -> "DashedLine", {2} -> (InfiniteLine[#]&)}]}]

Use the same shape function for all edges:

Wolfram Language code: Tree[0, {Tree[1, {2, 3}, ParentEdgeShapeFunction -> All -> None]}]

Specify shape functions for the leaf and non-leaf edges:

Wolfram Language code: Tree[0, {Tree[1, {2, 3}, ParentEdgeShapeFunction -> {"Leaves" -> "DashedLine", "NonLeaves" -> None}]}]

Scope  (5)

ParentEdgeShapeFunction Gallery  (3)

Get a list of built-in settings for EdgeShapeFunction:

Wolfram Language code: ResourceData["EdgeShapeFunction"]

Basic line:

Wolfram Language code: Tree[{Tree[None, ParentEdgeShapeFunction -> "Line"]}]

Lines with different glyphs on the edges:

Wolfram Language code: Table[Tree[{Tree[None, ParentEdgeShapeFunction -> {ef, "ArrowSize" -> 0.1}]}, PlotLabel -> ef], {ef, {"BoxLine", "DiamondLine", "DotLine"}}]

Directed edges including solid arrows:

Wolfram Language code: Table[Tree[{Tree[None, ParentEdgeShapeFunction -> {ef, "ArrowSize" -> 0.1}]}, PlotLabel -> ef], {ef, {"HalfFilledArrow", "HalfFilledDoubleArrow", "FilledArcArrow", "FilledArrow", "ShortFilledArcArrow", "ShortFilledArrow"}}]

Line arrows:

Wolfram Language code: Table[Tree[{Tree[None, ParentEdgeShapeFunction -> {ef, "ArrowSize" -> 0.1}]}, PlotLabel -> ef], {ef, ResourceData["EdgeShapeFunction", "UnfilledArrow"]}]

Open arrows:

Wolfram Language code: Table[Tree[{Tree[None, ParentEdgeShapeFunction -> {ef, "ArrowSize" -> 0.1}]}, PlotLabel -> ef], {ef, ResourceData["EdgeShapeFunction", "CarvedArrow"]}]

Position Specification  (2)

Specify positions using position patterns:

Wolfram Language code: Tree[0, {Tree[1, {[image], [image]}, ParentEdgeShapeFunction -> {{} -> None, {___, 1} -> (InfiniteLine[#]&), {2} -> "DashedLine"}]}]

Specify positions using data patterns:

Wolfram Language code: Tree[0, {Tree[1, {[image], [image]}, ParentEdgeShapeFunction -> {TreeCases[1] -> None, TreeCases[_ ? EvenQ] -> (InfiniteLine[#]&), TreeCases[_ ? OddQ] -> "DashedLine"}]}]

Properties & Relations  (4)

Shapes for edges can be specified by position:

Wolfram Language code: Tree[0, {Tree[1, {[image], [image]}, ParentEdgeShapeFunction -> {{} -> None, {___, 1} -> (InfiniteLine[#]&), {2} -> "DashedLine"}]}]

Shapes specified by a subtree take precedence over shapes specified by its ancestors:

Wolfram Language code: Tree[0, {Tree[1, {Tree[2, {3}, ParentEdgeShapeFunction -> Automatic]}, ParentEdgeShapeFunction -> All -> "DashedLine"]}]

A position {i,j,…} in a subtree refers to its subtree at relative position {i,j,…}:

Wolfram Language code: Tree[1, {Tree[2, {3, 4}, ParentEdgeShapeFunction -> {{2} -> None}]}]

A relative position {2} at position {1} refers to the global position {1,2}:

Wolfram Language code: Tree[1, {[image]}, ParentEdgeShapeFunction -> {{1, 2} -> None}]

In general, a pattern patt applies to subtrees at global position {i,j,…} that match patt:

Wolfram Language code: Tree[1, {Tree[2, {3, 4}, ParentEdgeShapeFunction -> {pos_ /; Total[pos] === 2 -> None}]}]

A list of patterns {patt1,patt2,…} applies to relative positions {i,j,…} that match patti:

Wolfram Language code: Tree[1, {Tree[2, {3, 4}, ParentEdgeShapeFunction -> {{1} -> None}]}]
