ReverseGraph[g]

gives the reverse graph of the directed graph g.

ReverseGraph[{vw,…}]

uses rules vw to specify the graph g.

Details and Options
Details and Options Details and Options
Examples
Basic Examples
Scope
Properties & Relations
See Also
Related Guides
History
Cite this Page

ReverseGraph

ReverseGraph[g]

gives the reverse graph of the directed graph g.

ReverseGraph[{vw,…}]

uses rules vw to specify the graph g.

Details and Options

  • ReverseGraph is also known as transpose graph or converse graph.
  • The reverse graph has the same vertices as g and the reverse edges.
  • ReverseGraph works with directed graphs, multigraphs, and mixed graphs.

Examples

open all close all

Basic Examples  (1)

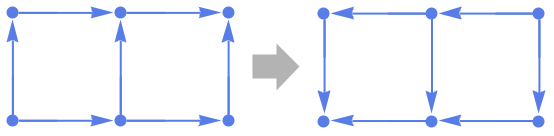

The reverse graph of a directed graph:

Wolfram Language code: ReverseGraph[[image]]

Scope  (6)

ReverseGraph does not affect undirected graphs:

Wolfram Language code: ReverseGraph[[image]]

ReverseGraph works with directed graphs:

Wolfram Language code: ReverseGraph[[image]]

Multigraphs:

Wolfram Language code: ReverseGraph[[image]]

Mixed graph:

Wolfram Language code: ReverseGraph[[image]]

Use rules to specify the graph:

Wolfram Language code: ReverseGraph[{1 -> 3, 2 -> 1, 3 -> 6, 4 -> 6, 1 -> 5, 5 -> 4, 6 -> 1}]

ReverseGraph works with large graphs:

Wolfram Language code: g = GridGraph[{10, 10, 10, 10}, DirectedEdges -> True];
Wolfram Language code: ReverseGraph[g];//Timing

Properties & Relations  (3)

ReverseGraph has the same VertexList as the original graph:

Wolfram Language code: VertexList[[image]] == VertexList[ReverseGraph[[image]]]

ReverseGraph is equivalent to reversing edges:

Wolfram Language code: g = [image];
Wolfram Language code: Graph[VertexList[g], Reverse /@ EdgeList[g], AbsoluteOptions[g, VertexCoordinates], EdgeStyle -> Arrowheads[Small]]

The adjacency matrix of a reverse graph is the transpose of the matrix of the original graph:

Wolfram Language code: g = [image];
Wolfram Language code: AdjacencyMatrix[ReverseGraph[g]] == AdjacencyMatrix[g]
