ScaleRanges

ScaleRanges

is an option for gauge functions that describes how to draw sections of the scale.

Details

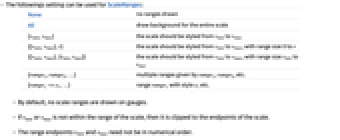

  • The followings setting can be used for ScaleRanges:
  • Noneno ranges drawn
    Alldraw background for the entire scale
    {vmin,vmax}the scale should be styled from vmin to vmax
    {{vmin,vmax},r}the scale should be styled from vmin to vmax, with range size 0 to r
    {{vmin,vmax},{rmin,rmax}}the scale should be styled from vmin to vmax, with range size rmin to rmax
    {range1,range2,…}multiple ranges given by range1, range2, etc.
    {range1->s1,…}range range1 with style s1 etc.
  • By default, no scale ranges are drawn on gauges.
  • If vmin or vmax is not within the range of the scale, then it is clipped to the endpoints of the scale.
  • The range endpoints vmin and vmax need not be in numerical order.
  • The scale itself is taken to be at r=0. For angular gauges, r increases to r=1 at the center of the gauge. For horizontal gauges, r increases to r=1 at the top of the gauge face. For vertical gauges, r increases to r=1 at the left edge of the face.
  • The ranges specified by ScaleRanges need not be contiguous. If multiple ranges overlap, they will be drawn in the order specified.
  • The default sequence of styles and colors for ScaleRanges is based on the style used for the first marker's style, according to GaugeStyle.
  • The style si in rangei->si may take the same forms as in ScaleRangeStyle.

Examples

open all close all

Basic Examples  (7)

Specify a range of the scale to be styled:

Wolfram Language code: {VerticalGauge[42, {0, 100}, ScaleRanges -> {80, 100}], AngularGauge[42, {0, 100}, ScaleRanges -> {80, 100}]}

Style the background of the entire scale:

Wolfram Language code: {VerticalGauge[42, {0, 100}, ScaleRanges -> All], AngularGauge[42, {0, 100}, ScaleRanges -> All]}

Specify multiple ranges of the scale to be styled:

Wolfram Language code: {VerticalGauge[42, {0, 100}, ScaleRanges -> {{50, 70}, {70, 80}, {80, 90}, {90, 100}}], AngularGauge[42, {0, 100}, ScaleRanges -> {{50, 70}, {70, 80}, {80, 90}, {90, 100}}]}

Ranges need not be contiguous or distinct:

Wolfram Language code: {VerticalGauge[42, {0, 100}, ScaleRanges -> {{0, 25}, {50, 75}, {75, 100}, {75, 85}}], AngularGauge[42, {0, 100}, ScaleRanges -> {{0, 25}, {50, 75}, {75, 100}, {75, 85}}]}

Directly associate a style with a range with range->style:

Wolfram Language code: {VerticalGauge[42, {0, 100}, ScaleRanges -> {{0, 33} -> Green, {33, 66} -> Yellow, {66, 100} -> Red}], AngularGauge[42, {0, 100}, ScaleRanges -> {{0, 33} -> Green, {33, 66} -> Yellow, {66, 100} -> Red}]}

Directly associate a style with the entire background range:

Wolfram Language code: {VerticalGauge[42, {0, 100}, ScaleRanges -> All -> LightBlue], AngularGauge[42, {0, 100}, ScaleRanges -> All -> LightBlue]}

Specify a range and a width for the range:

Wolfram Language code: {VerticalGauge[42, {0, 100}, ScaleRanges -> {{{60, 80}, {0, .05}}, {{80, 100}, {0, .075}}}], AngularGauge[42, {0, 100}, ScaleRanges -> {{{60, 80}, {0, .1}}, {{80, 100}, {0, .15}}}]}

Properties & Relations  (2)

ScaleRanges follow the scale region:

Wolfram Language code: {AngularGauge[42, {0, 100}, ScaleRanges -> {80, 100}, ScaleOrigin -> .8], AngularGauge[42, {0, 100}, ScaleRanges -> {80, 100}, ScaleOrigin -> {Left, 1}]}

The styles for ScaleRanges are chosen based on the style of the first GaugeStyle:

Wolfram Language code: {AngularGauge[42, {0, 100}, ScaleRanges -> {{50, 70}, {70, 80}, {80, 90}, {90, 100}}, GaugeStyle -> Blue], AngularGauge[{42, 88}, {0, 100}, ScaleRanges -> {{50, 70}, {70, 80}, {80, 90}, {90, 100}}, GaugeStyle -> {Green, Blue }]}
