SummationLayer

SummationLayer[]

represents a net layer that sums all of its input elements.

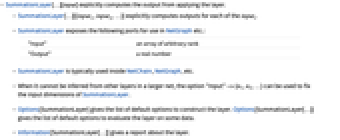

Details and Options

  • SummationLayer[…][input] explicitly computes the output from applying the layer.
  • SummationLayer[…][{input1,input2,…}] explicitly computes outputs for each of the inputi.
  • SummationLayer exposes the following ports for use in NetGraph etc.:
  • "Input"an array of arbitrary rank
    "Output"a real number
  • SummationLayer is typically used inside NetChain, NetGraph, etc.
  • When it cannot be inferred from other layers in a larger net, the option "Input"->{n1,n2,…} can be used to fix the input dimensions of SummationLayer.
  • Options[SummationLayer] gives the list of default options to construct the layer. Options[SummationLayer[…]] gives the list of default options to evaluate the layer on some data.
  • Information[SummationLayer[…]] gives a report about the layer.
  • Information[SummationLayer[…],prop] gives the value of the property prop of SummationLayer[…]. Possible properties are the same as for NetGraph.

Examples

open all close all

Basic Examples  (2)

Create a SummationLayer:

Wolfram Language code: SummationLayer[]

Create a SummationLayer with vector input of size 4:

Wolfram Language code: sum = SummationLayer["Input" -> {4}]

Apply this layer to an input:

Wolfram Language code: sum[{1, 2, 3, -0.3}]

Scope  (1)

Ports  (1)

Create a SummationLayer that takes an input array of dimensions 2×3×1:

Wolfram Language code: sum = SummationLayer["Input" -> {2, 3, 1}]

Apply this layer to an input:

Wolfram Language code: sum[RandomReal[1, {2, 3, 1}]]

The layer threads across a batch of examples:

Wolfram Language code: sum[RandomReal[1, {5, 2, 3, 1}]]

Properties & Relations  (2)

SummationLayer computes:

Wolfram Language code: sum[data_] := Total[data, Infinity]

Evaluate on some data:

Wolfram Language code: data = {{{2.2, 3.4, 4}}}; SummationLayer[]@data sum@data

SummationLayer[] is equivalent to AggregationLayer[Total,All]:

Wolfram Language code: r = RandomReal[1, {5, 3, 2}]; SummationLayer[][r] === AggregationLayer[Total, All][r]

Possible Issues  (1)

SummationLayer cannot accept symbolic inputs:

Wolfram Language code: sum = SummationLayer[]; sum[{1, 2}]
Wolfram Language code: sum[{1, z}]
