TaggedEdgeStyle

TaggedEdgeStyle

is an option and annotation for Graph and related functions that specifies what style to use for tagged edges.

Details

  • The following option settings can be used:
  • Automaticuse automatic setting for style
    styleuse style for all tagged edges
    {tagistylei,…}use stylei for tagged edges with tags tagi
    {pattistylei,…}use stylei for tags matching the pattern patti
  • Styles assigned to specific tags take precedence over styles assigned to all tags.
  • To specify multiple style directives, use Directive[style1,style2,…].
  • Style and other specifications are effectively applied in the order EdgeStyle, TaggedEdgeStyle, Style and other wrappers and EdgeShapeFunction, with later specifications overriding earlier ones.

Examples

open all close all

Basic Examples  (2)

Style edges based on edge tag:

Wolfram Language code: TaggedNestGraph[n |-> {2 n, n + 1}, 1, 4, TaggedEdgeStyle -> {1 -> Red, 2 -> Blue}]

Style all edges:

Wolfram Language code: Table[TaggedNestGraph[{2 #, 2 # + 1}&, 1, 2, TaggedEdgeStyle -> style], {style, {Gray, Dashed, Thick}}]

Scope  (5)

Styles assigned to specific tags take precedence over styles assigned to all tags:

Wolfram Language code: TaggedNestGraph[{2 #, 2 # + 1}&, 1, 2, TaggedEdgeStyle -> {1 -> Blue, Red}]

Use Directive to set multiple style directives:

Wolfram Language code: Table[TaggedNestGraph[{2 #, 2 # + 1}&, 1, 2, TaggedEdgeStyle -> s], {s, {Blue, Dashed, Directive[Blue, Dashed]}}]

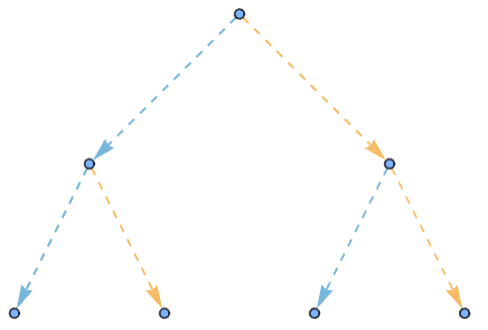

TaggedEdgeStyle works with patterns:

Wolfram Language code: TaggedNestGraph[{2 #, 2 # + 1}&, 1, 2, TaggedEdgeStyle -> {_ ? EvenQ -> Orange}]

TaggedEdgeStyle can be combined with EdgeShapeFunction:

Wolfram Language code: ef1[el_, ___] := Arrow[el, 0.1]
Wolfram Language code: TaggedNestGraph[{2 #, 2 # + 1}&, 1, 2, TaggedEdgeStyle -> Blue, EdgeShapeFunction -> ef1]

EdgeShapeFunction has higher priority than TaggedEdgeStyle:

Wolfram Language code: ef2[el_, ___] := {Red, Arrow[el, 0.1]}
Wolfram Language code: TaggedNestGraph[{2 #, 2 # + 1}&, 1, 2, TaggedEdgeStyle -> Blue, EdgeShapeFunction -> ef2]

TaggedEdgeStyle can be combined with BaseStyle:

Wolfram Language code: TaggedNestGraph[{2 #, 2 # + 1}&, 1, 2, BaseStyle -> Red, TaggedEdgeStyle -> Dashed]

TaggedEdgeStyle has higher priority than BaseStyle:

Wolfram Language code: TaggedNestGraph[{2 #, 2 # + 1}&, 1, 2, BaseStyle -> Red, TaggedEdgeStyle -> Blue]
