Thinning

Thinning[image]

finds the skeletons of foreground regions in image by applying morphological thinning until convergence.

Thinning[image,n]

performs n iterations of morphological thinning.

Thinning[image,n,t]

treats values above t as foreground.

Details and Options

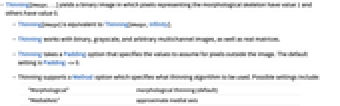

  • Thinning[image,…] yields a binary image in which pixels representing the morphological skeleton have value 1 and others have value 0.
  • Thinning[image] is equivalent to Thinning[image,Infinity].
  • Thinning works with binary, grayscale, and arbitrary multichannel images, as well as real matrices.
  • Thinning takes a Padding option that specifies the values to assume for pixels outside the image. The default setting is Padding->0.
  • Thinning supports a Method option which specifies what thinning algorithm to be used. Possible settings include:
  • "Morphological"morphological thinning (default)
    "MedialAxis"approximate medial axis

Examples

open all close all

Basic Examples  (1)

Morphological thinning of an image:

Wolfram Language code: Thinning[[image]]

Scope  (2)

Applying the morphological thinning to a label matrix:

Wolfram Language code: Thinning[MorphologicalComponents[[image]]] //Colorize

Thinning a grayscale image using a specific foreground threshold:

Wolfram Language code: Thinning[[image], Infinity, 0.2]

Options  (3)

Method  (1)

Find the approximate medial axis:

Wolfram Language code: Thinning[[image], Method -> "MedialAxis"]

Padding  (2)

The padding value affects objects adjacent to the boundary:

Wolfram Language code: Thinning[[image], Padding -> #]& /@ {0, 1}

Pad with the foreground value:

Wolfram Language code: Thinning[[image], Padding -> 1]

Applications  (2)

Simplify features in a fingerprint image:

Wolfram Language code: Thinning[[image]]

Use the image skeleton to construct a graph:

Wolfram Language code: t = Thinning[[image], Infinity, 0.9]
Wolfram Language code: MorphologicalGraph[t]

Neat Examples  (2)

Extract possible paths through a maze:

Wolfram Language code: Pruning[Thinning[[image], Padding -> 1], Padding -> 1]

Find the approximate Voronoi diagram of the foreground objects:

Wolfram Language code: i = [image];ImageAdd[i, ColorCombine[{Thinning[ColorNegate@i, Padding -> 1], i, i}]]
