TreeElementSizeFunction

TreeElementSizeFunction

is an option for Tree and related functions that specifies a function to use to generate sizes for subtree elements.

Details

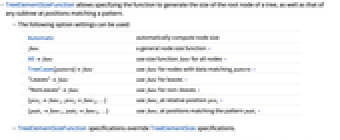

  • TreeElementSizeFunction allows specifying the function to generate the size of the root node of a tree, as well as that of any subtree at positions matching a pattern.
  • The following option settings can be used:
  • Automaticautomatically compute node size
    funca general node size function »
    Allfuncuse size function func for all nodes »
    TreeCases[pattern]funcuse func for nodes with data matching pattern »
    "Leaves"funcuse func for leaves »
    "NonLeaves"funcuse func for non-leaves »
    {pos1func1,pos2func2,…}use funci at relative position posi »
    {patt1func1,patt2func2,…}use funci at positions matching the pattern patti »
  • TreeElementSizeFunction specifications override TreeElementSize specifications.
  • TreeElementSizeFunctionfunc specifies that the size of the root node should be provided by func[data], where data is the data in the root.

Examples

open all close all

Basic Examples  (4)

Generate an individual node size:

Wolfram Language code: Tree[Small, {2, 3}, TreeElementSizeFunction -> Identity, TreeElementShapeFunction -> All -> "Square"]

Specify a list of node size functions:

Wolfram Language code: Tree[Small, {Medium, Large}, TreeElementSizeFunction -> {{} -> Identity, {1} -> Identity, {2} -> Identity}, TreeElementShapeFunction -> All -> "Square"]

Use the same size function for all nodes:

Wolfram Language code: Tree[Small, {Medium, Large}, TreeElementSizeFunction -> All -> Identity, TreeElementShapeFunction -> All -> "Square"]

Specify size functions for the leaves and for the non-leaves:

Wolfram Language code: Tree[Small, {Large, Large}, TreeElementSizeFunction -> {"Leaves" -> Identity, "NonLeaves" -> Identity}, TreeElementShapeFunction -> All -> "Square"]

Scope  (2)

Specify positions using position patterns:

Wolfram Language code: Tree[Small, {[image], [image]}, TreeElementSizeFunction -> {{} -> Identity, {___, 1} -> Identity, {2} -> Identity}, TreeElementShapeFunction -> All -> "Square"]

Specify positions using data patterns:

Wolfram Language code: Tree[Small, {[image], [image]}, TreeElementSizeFunction -> {TreeCases[Small] -> Identity, TreeCases[Medium] -> Identity, TreeCases[Large] -> Identity}, TreeElementShapeFunction -> All -> "Square"]

Properties & Relations  (4)

Sizes for nodes can be specified by position:

Wolfram Language code: Tree[Small, {[image], [image]}, TreeElementSizeFunction -> {{} -> Identity, {___, 1} -> Identity, {2} -> Identity}, TreeElementShapeFunction -> All -> "Square"]

Sizes specified by a subtree take precedence over sizes specified by its ancestors:

Wolfram Language code: Tree[Large, {Tree[Large, {Large}, TreeElementSizeFunction -> Automatic]}, TreeElementSizeFunction -> All -> Identity, TreeElementShapeFunction -> All -> "Square"]

A position {i,j,…} in a subtree refers to its subtree at relative position {i,j,…}:

Wolfram Language code: Tree[1, {Tree[2, {3, Large}, TreeElementSizeFunction -> {{2} -> Identity}]}, TreeElementShapeFunction -> All -> "Square"]

A relative position {2} at position {1} refers to the global position {1,2}:

Wolfram Language code: Tree[1, {[image]}, TreeElementSizeFunction -> {{1, 2} -> Identity}, TreeElementShapeFunction -> All -> "Square"]

In general, a pattern patt applies to subtrees at global positions {i,j,…} that match patt:

Wolfram Language code: Tree[1, {Tree[2, {Large, 4}, TreeElementSizeFunction -> {pos_ /; Total[pos] === 2 -> Identity}]}, TreeElementShapeFunction -> All -> "Square"]

A list of patterns {patt1,patt2,…} applies to relative positions {i,j,…} that match patti:

Wolfram Language code: Tree[1, {Tree[2, {Large, 4}, TreeElementSizeFunction -> {{1} -> Identity}]}, TreeElementShapeFunction -> All -> "Square"]
