"KDTree" (Data Structure)

"KDTree"

represents k-d tree binary spatial subdivision for a set of real number coordinates.

Details

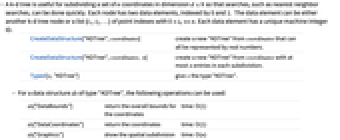

  • A k-d tree is useful for subdividing a set of n coordinates in dimension so that searches, such as nearest neighbor searches, can be done quickly. Each node has two data elements, indexed by 0 and 1. The data element can be either another k-d tree node or a list {i1,i2,…} of point indexes with 0<ik<=n. Each data element has a unique machine integer ID.
  • CreateDataStructure["KDTree",coordinates]create a new "KDTree" from coordinates that can all be represented by real numbers.
    CreateDataStructure["KDTree",coordinates, n]create a new "KDTree" from coordinates with at most n entries in each subdivistion.
    Typed[x,"KDTree"]give x the type "KDTree".
  • For a data structure ds of type "KDTree", the following operations can be used:

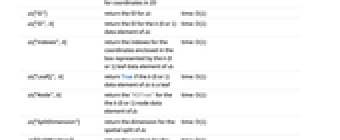

  • ds["DataBounds"]return the overall bounds for the coordinatestime: O(1)
    ds["DataCoordinates"]return the coordinates time: O(1)
    ds["Graphics"]show the spatial subdivision for coordinates in 2Dtime: O(n)
    ds["ID"]return the ID for dstime: O(1)
    ds["ID", b]return the ID for the b (0 or 1) data element of dstime: O(1)
    ds["Indexes",b]return the indexes for the coordinates enclosed in the box represented by the b (0 or 1) leaf data element of dstime: O(1)
    ds["LeafQ", b]return True if the b (0 or 1) data element of ds is a leaftime: O(1)
    ds["Node",b]return the "KDTree" for the the b (0 or 1) node data element of dstime: O(1)
    ds["SplitDimension"]return the dimension for the spatial split of dstime: O(1)
    ds["SplitPosition"]return the position for the spatial split of dstime: O(1)
    ds["SubtreeIndexes",sd]return all the indexes for the coordinates in the subtree represented by dstime: O(n)
    ds["SubtreeLength"]find the number of coordinates bound by the subtree represented by dstime: O(n)
    ds["TreeSize"]return the number of data elementstime: O(1)
    ds["Visualization"]return a visualization of dstime: O(n)

Examples

open all close all

Basic Examples  (1)

A new "KDTree" object can be created with CreateDataStructure:

Wolfram Language code: coordinates = BlockRandom[RandomVariate[NormalDistribution[], {47, 2}], RandomSeeding -> 1234];ds = CreateDataStructure["KDTree", coordinates]

Show graphics for the 2D data:

Wolfram Language code: dsg = ds["Graphics", Axes -> True]

Test if either of the 0 and 1 data elements are leaves:

Wolfram Language code: Table[ds["LeafQ", b], {b, 0, 1}]

Get the points included in the 1-data element leaf and highlight them with red in the graphics:

Wolfram Language code: Show[dsg, Graphics[{Red, Point[ds["DataCoordinates"][[ds["Indexes", 1]]]]}]]

Get the k-d tree represented by the 0-data element:

Wolfram Language code: left = ds["Node", 0]

The graphics for this colors pink the part of the coordinates not included in the subtree:

Wolfram Language code: left["Graphics"]

Visualize the tree structure of the k-d tree:

Wolfram Language code: ds["Visualization"]

Get the split dimension and position for the k-d tree:

Wolfram Language code: {sdim = ds["SplitDimension"], spos = ds["SplitPosition"]}

Get the coordinate indexes for the 1-element data of the k-d tree.

Wolfram Language code: {ds["LeafQ", 1], ind = ds["Indexes", 1]}

Test that the coordinates are all above the split position in the split dimension:

Wolfram Language code: AllTrue[coordinates[[ind, sdim]], (# ≥ spos)&]

Get all coordinate indexes for the 1-element subtree k-d tree and check that they are all below the split position:

Wolfram Language code: lind = left["SubtreeIndexes"]; AllTrue[coordinates[[lind, sdim]], (# ≤ spos)&]

Scope  (3)

Information  (1)

A new "KDTree" can be created with CreateDataStructure:

Wolfram Language code: coordinates = RandomReal[1, {1663, 4}];ds = CreateDataStructure["KDTree", coordinates]

Information about the data structure ds:

Wolfram Language code: Information[ds]

Leaf Size  (1)

The subdivision continues until there are at most a given number of coordinates in each box that can be specified as an additional argument in CreateDataStructure.

Limit the number of coordinates to at most 5:

Wolfram Language code: coordinates = BlockRandom[RandomVariate[NormalDistribution[], {47, 2}], RandomSeeding -> 1234];ds = CreateDataStructure["KDTree", coordinates, 5]
Wolfram Language code: ds["Graphics"]

The default is chosen to give a good balance between construction and traversal cost and operation cost on the leaves:

Wolfram Language code: CreateDataStructure["KDTree", coordinates]["Graphics"]

Arbitrary Precision  (1)

If you give the coordinates with more than MachinePrecision digits, then the computations will be done in the appropriate precision:

Wolfram Language code: coordinates = BlockRandom[RandomReal[{-1, 1}, {47, 2}, WorkingPrecision -> 24], RandomSeeding -> 1234]; ds = CreateDataStructure["KDTree", coordinates]
Wolfram Language code: ds["SplitPosition"]

Applications  (2)

Nearest Neighbor Search  (1)

Set up a program to use a "KDTree" data structure to find the element in a set of coordinates nearest to a given point:

Wolfram Language code: FindNearestNeighbor[kdTree_, x_] := Module[{searchData}, searchData = <|"Point" -> x, "Coordinates" -> kdTree["DataCoordinates"], "Nearest" -> CreateDataStructure["Value", {0, Infinity}]|>; nodeNearest[kdTree, searchData]; searchData["Nearest"]["Get"] ];

At each node, process the side that the point is in or closest to first:

Wolfram Language code: nodeNearest[node_, searchData_] := Module[{spos, xd, sdist, first, second, ndist}, spos = node["SplitPosition"]; xd = searchData["Point"][[node["SplitDimension"]]]; If[xd ≤ spos, sdist = spos - xd; {first, second} = {0, 1}, sdist = xd - spos; {first, second} = {1, 0} ]; sideNearest[first, node, searchData]; ndist = searchData["Nearest"]["Get"][[2]]; If[ndist ≥ sdist, sideNearest[second, node, searchData] ]; ];

For a leaf data element, test all the points, and for a node data element, recurse:

Wolfram Language code: sideNearest[side_, node_, searchData_] := If[node["LeafQ", side], (* Compute min distance to included points *) Module[{nind, ndist, dist}, {nind, ndist} = searchData["Nearest"]["Get"]; Do[ dist = Norm[searchData["Coordinates"][[ind]] - searchData["Point"]]; If[dist < ndist, {nind, ndist} = {ind, dist}; ], {ind, node["Indexes", side]} ]; searchData["Nearest"]["Set", {nind, ndist}] ], nodeNearest[node["Node", side], searchData] ];

Test the function on a set of one million coordinates in three dimensions:

Wolfram Language code: coordinates = BlockRandom[RandomReal[{-1, 1}, {10 ^ 6, 4}], RandomSeeding -> 1234];ds = CreateDataStructure["KDTree", coordinates]
Wolfram Language code: Developer`PackedArrayQ[ds["DataCoordinates"]]
Wolfram Language code: FindNearestNeighbor[ds, {0., 0., 0., 0.}]

Compare to the result returned by Nearest:

Wolfram Language code: Nearest[coordinates -> {"Index", "Distance"}, {0., 0., 0., 0.}]

Compare the timing to just computing the Norm of all of the points:

Wolfram Language code: RepeatedTiming[Min[Map[Norm, coordinates]]]
Wolfram Language code: RepeatedTiming[FindNearestNeighbor[ds, {0., 0., 0., 0.}]]

The construction of the k-d tree takes more time than a single scan, but is worth the extra time if several searches are desired:

Wolfram Language code: First[RepeatedTiming[CreateDataStructure["KDTree", coordinates]]]
Wolfram Language code: RepeatedTiming[ds["DataCoordinates"];]

Range Search  (1)

Set up a program to use a "KDTree" object to find all elements in a set of coordinates within given ranges:

Wolfram Language code: RangeSearch[kdTree_, ranges : {{_, _}..}] := Module[{searchData}, searchData = <|"LowerLimits" -> ranges[[All, 1]], "UpperLimits" -> ranges[[All, 2]], "Coordinates" -> kdTree["DataCoordinates"], "InRange" -> CreateDataStructure["DynamicArray"]|>; nodeRangeSearch[kdTree, searchData]; Normal[searchData["InRange"]] ];

At each node, process each side that fits in the range for the node split dimension:

Wolfram Language code: nodeRangeSearch[node_, searchData_] := Module[{spos, sdim, ll, ul}, sdim = node["SplitDimension"]; spos = node["SplitPosition"]; ll = searchData["LowerLimits"][[sdim]]; ul = searchData["UpperLimits"][[sdim]]; If[ll ≤ spos, sideRangeSearch[0, node, searchData] ]; If[ul ≥ spos, sideRangeSearch[1, node, searchData] ]; ];

For a leaf data element, test all the points for inclusion, and for a node data element, recurse:

Wolfram Language code: sideRangeSearch[side_, node_, searchData_] := Module[{x, ll, ul}, If[node["LeafQ", side], (* Determine index of points in range *) ll = searchData["LowerLimits"]; ul = searchData["UpperLimits"]; x = searchData["Coordinates"]; Do[ If[AllTrue[MapThread[LessEqual, {ll, x[[ind]], ul}], Identity], searchData["InRange"]["Append", ind] ], {ind, node["Indexes", side]} ], nodeRangeSearch[node["Node", side], searchData] ] ];

Here is a dataset of selected properties for all countries for which those properties are known:

Wolfram Language code: data = Cases[Table[CountryData[#, prop], {prop, {"Name", "Population", "Area", "GDP"}}]& /@ CountryData[], datum_ /; FreeQ[datum, _Missing, Infinity]];

Get corresponding numerical data and create a "KDTree" data structure from it:

Wolfram Language code: numericalData = QuantityArray[data[[All, 2 ;; -1]]]["Magnitudes"]; ds = CreateDataStructure["KDTree", numericalData];

Find the countries with a population under a million people and GDP greater than 10 billion $:

Wolfram Language code: index = RangeSearch[ds, {{-Infinity, 10 ^ 6}, {-Infinity, Infinity}, {10 ^ 10, Infinity}}]; data[[index, 1]]

Find the countries with population over 10 million people and area under 100000 km2:

Wolfram Language code: index = RangeSearch[ds, {{10 ^ 7, Infinity}, {-Infinity, 10 ^ 5}, {-Infinity, Infinity}}]; data[[index, 1]]
