GaussianLog

  • Import supports the Gaussian log file format.

Background & Context

    • MIME type: chemical/x-gaussian-log
    • Gaussian log file.
    • Used to store results of quantum chemistry calculations.
    • Plain text format.

Import

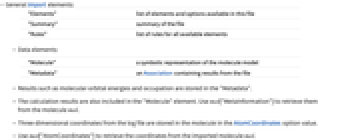

Import Elements

  • General Import elements:
  • "Elements" list of elements and options available in this file
    "Summary"summary of the file
    "Rules"list of rules for all available elements
  • Data elements:
  • "Molecule"a symbolic representation of the molecule model
    "Metadata"an Association containing results from the file
  • Results such as molecular-orbital energies and occupation are stored in the "Metadata".
  • The calculation results are also included in the "Molecule" element. Use mol["MetaInformation"] to retrieve them from the molecule mol.
  • Three-dimensional coordinates from the log file are stored in the molecule in the AtomCoordinates option value.
  • Use mol["AtomCoordinates"] to retrieve the coordinates from the imported molecule mol.

Examples

open all close all

Basic Examples  (1)

Import a Gaussian log file as a molecule:

Wolfram Language code: mol = Import["ExampleData/bisCWdhpe2Cl_13benz_c1_freq.log", "GaussianLog"]

Show the molecule in 3D:

Wolfram Language code: MoleculePlot3D[mol]

Dipole and orbital information is stored in the molecule's MetaInformation:

Wolfram Language code: mol["MetaInformation"]

Scope  (2)

Some Gaussian log files contain information on the normal vibrational modes:

Wolfram Language code: meta = Import["ExampleData/bisCWdhpe2Cl_13benz_c1_freq.log", {"GaussianLog", "Metadata"}]; {intensities, frequencies} = Lookup[meta, {"InfraredIntensities", "VibrationalFrequencies"}]

Assume a Lorentzian line shape for each mode, and plot the calculated infrared absorption spectrum:

Wolfram Language code: σ = 5; spectrum = Total[MapThread[#1 / ((ω - #2)^2 + σ^2) &, QuantityMagnitude[{intensities, frequencies}]]];
Wolfram Language code: Plot[spectrum, {ω, 0, 3200}, IconizedObject[«plotting options»]]

Use the Cartesian displacement vectors to make animations of the normal vibrational modes:

Wolfram Language code: mol = Import["ExampleData/bisCWdhpe2Cl_13benz_c1_freq.log", "GaussianLog"]; coords = mol["AtomCoordinates"]; {displacements, frequencies} = Lookup[mol["MetaInformation"], {"CartesianDisplacementVectors", "VibrationalFrequencies"}]

Create a function to generate an animation:

Wolfram Language code: atomCoordinates[ωt_, mode_] := (coords + Sin[ωt] displacements[[mode]]); molPlot3D[ωt_, mode_] := MoleculePlot3D[mol, AtomCoordinates -> (coords + Sin[ωt] displacements[[mode]]), SphericalRegion -> Sphere[{0, 0, 0}, 8], ViewPoint -> {Top, Left}];
Wolfram Language code: animation[mode_] := ListAnimate[Table[molPlot3D[ωt, mode], {ωt, 0, 2π, .1}], AnimationRate -> 300frequencies[[mode]] / Max[frequencies]]

Animate the asymmetric chlorine stretching mode:

Wolfram Language code: animation[34]

Animate the symmetric chlorine stretching mode:

Wolfram Language code: animation[35]
