"BalloonEmbedding" (Graph Layout Method)

  • Vertex layout for GraphLayout.
  • Use balloon embedding to lay out vertices of a graph.

Details & Suboptions

  • The balloon embedding is a graph-drawing technique to position vertices of a graph on a circle with the center at the parent vertex.
  • The balloon embedding is typically used to lay out tree graphs.
  • Possible settings to control the layout include:
  • "EvenAngle"Automaticvertices placed evenly in an enclosing circle
    "OptimalOrder"Trueoptimal ordering of vertices to minimize edge crossings
    "RootVertex"Automaticroot vertex
    "SectorAngles"Automaticsize of the angle of each sector
    "Rotation"Automaticlayout rotation

Examples

open all close all

Basic Examples  (2)

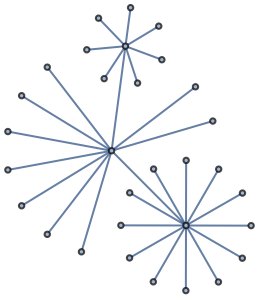

Place each vertex in an enclosing circle centered at its parent vertex:

Wolfram Language code: Graph[Table[Floor[j / 12]j, {j, 1, 30}], GraphLayout -> "BalloonEmbedding"]

"BalloonEmbedding" works best for tree graphs:

Wolfram Language code: TreeGraph[RandomInteger[{1, #}]  # + 1 & /@ Range[30], GraphLayout -> "BalloonEmbedding"]

Options  (5)

"EvenAngle"  (1)

Use the option "EvenAngle"True to place vertices evenly in an enclosing circle:

Wolfram Language code: {KaryTree[48, 5, GraphLayout -> {"BalloonEmbedding", "EvenAngle" -> True}], KaryTree[48, 5, GraphLayout -> {"BalloonEmbedding", "EvenAngle" -> False}]}

"OptimalOrder"  (1)

With the setting "OptimalOrder"True, the vertex ordering optimizes the angular resolution and the aspect ratio:

Wolfram Language code: {KaryTree[48, 5, GraphLayout -> {"BalloonEmbedding", "OptimalOrder" -> True}], KaryTree[48, 5, GraphLayout -> {"BalloonEmbedding", "OptimalOrder" -> False}]}

"RootVertex"  (1)

Use the option "RootVertex"v to set the root vertex:

Wolfram Language code: {KaryTree[48, 5, GraphLayout -> {"BalloonEmbedding", "RootVertex" -> 1}], KaryTree[48, 5, GraphLayout -> {"BalloonEmbedding", "RootVertex" -> 2}]}

"Rotation"  (1)

Use "Rotation"r to rotate the layout:

Wolfram Language code: KaryTree[48, 5, GraphLayout -> {"BalloonEmbedding", "Rotation" -> 30 Degree}]

"SectorAngles"  (1)

Use "SectorAngles"s to control the size of each sector:

Wolfram Language code: KaryTree[48, 5, GraphLayout -> {"BalloonEmbedding", "SectorAngles" -> {1 -> Pi / 2}}]
