"Spectral" (Machine Learning Method)

Details & Suboptions

  • "Spectral" is a hybrid neighbor-based/centroid-based clustering method. "Spectral" works for arbitrary cluster shapes but requires clusters to have similar sizes. Since the method solves an eigenvalue problem, it is computationally expensive for large datasets.

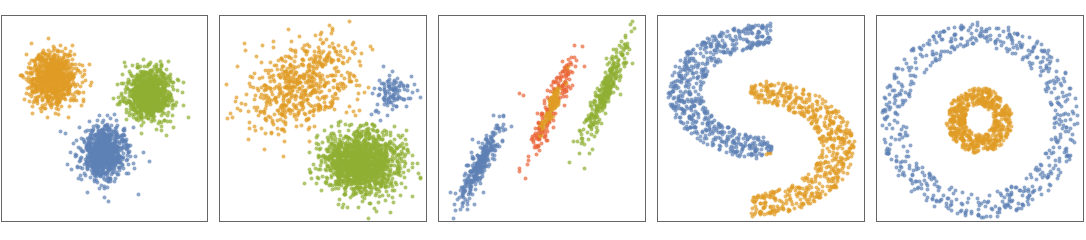

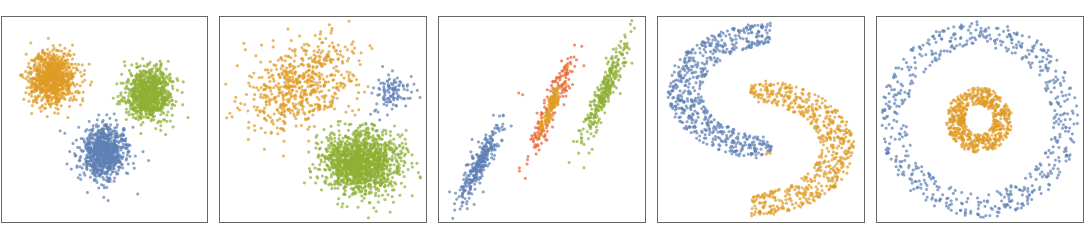

  • The following plots show the results of the "Spectral" method applied to toy datasets:
  • To identify k clusters, the "Spectral" method uses the "KMeans" algorithm after reducing the data to k-dimensions. The dimensionality reduction is a neighbor-based nonlinear method similar to "Isomap": The adjacency matrix, A_(ij)=Exp[-d^2_(ij)/2sigma^2] is computed for every data point i, j. is the distance between the points, and is a scale parameter. is then centered, normalized and linearly reduced to dimension k. Mathematically speaking, the centered and renormalized adjacency matrix is given by , where is the diagonal matrix defined as . The largest k eigenvectors of constitute the reduced data.
  • The option DistanceFunction can be used to define .
  • The following suboption can be given:
  • "NeighborhoodRadius" Automaticvalue for scale parameter

Examples

open all close all

Basic Examples  (3)

Find clusters of numbers using the "Spectral" method:

Wolfram Language code: FindClusters[{1, 2, 10, 12, 3, 1, 13, 25}, Method -> "Spectral"]

Find up to four clusters using the "Spectral" method:

Wolfram Language code: FindClusters[{1, 2, 10, 12, 3, 1, 13, 25}, UpTo[4], Method -> "Spectral"]

Train the ClassifierFunction on a list of colors using the "Spectral" method:

Wolfram Language code: SeedRandom[123]; colors = RandomColor[70]; c = ClusterClassify[colors, Method -> "Spectral"]

Gather the elements by their class number:

Wolfram Language code: GatherBy[colors, c]

Create and visualize noisy 2D moon-shaped training and test datasets:

Wolfram Language code: circle[r_, theta_] := {r Sin[theta], r Cos[theta]}; SeedRandom[123]; {train, test} = With[{ rot = RotationTransform[π, {0, 0}], tra = TranslationTransform[{1, 2.5}], pts = circle@@@RandomVariate[UniformDistribution[{{2, 3}, {0, Pi}}], 2000]}, TakeDrop[RandomSample@Join[tra[rot[pts]], pts], 2000] ]; ListPlot[{train, test}, PlotRange -> All, AspectRatio -> 1, PlotStyle -> Directive[ PointSize[0.013], Opacity[0.7]], Frame -> True, Axes -> False]

Train a ClassifierFunction using the "Spectral" method; find and visualize clusters in the test set:

Wolfram Language code: ncls = 2; cl = ClusterClassify[train, UpTo[ncls], Method -> "Spectral"] decision = cl[test]; ListPlot[Pick[test, decision, #]& /@ Range[ncls], PlotStyle -> Directive[PointSize[0.025], Opacity[0.7]], AspectRatio -> 1, Frame -> True, Axes -> False]

Scope  (2)

Perform cluster analysis of a computed tomography scan image using the "Spectral" method:

Wolfram Language code: Colorize[ClusteringComponents[[image] , Method -> "Spectral"]]

Create a ClassifierFunction from a list of images and classify examples using the "Spectral" method:

Wolfram Language code: flowers = {[image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image], [image]};
Wolfram Language code: c = ClusterClassify[flowers, UpTo[3], Method -> "Spectral"]

Find the cluster assignments and gather the elements by their corresponding clusters:

Wolfram Language code: c[flowers]
Wolfram Language code: GatherBy[flowers, c]

Options  (3)

DistanceFunction  (1)

Find two clusters in data using Manhattan distance:

Wolfram Language code: FindClusters[{{2, 3}, {5, 10}, {4, 5}, {2, 2}, {5, 5}, {6, 4}}, UpTo[2], Method -> "Spectral", DistanceFunction -> ManhattanDistance]

Define a set of two-dimensional data points, characterized by four somewhat nebulous clusters:

Wolfram Language code: dn1 = MultinormalDistribution[{3, 3}, {{2, 1 / 3}, {1 / 3, 2 / 3}}]; dn2 = MultinormalDistribution[{-3, -3}, {{2, -1 / 3}, {-1 / 3, 2 / 3}}]; dn3 = MultinormalDistribution[{3, -4}, {{2, -1 / 3}, {-1 / 3, 2 / 3}}]; dn4 = MultinormalDistribution[{-3, 4}, {{2, -1 / 3}, {-1 / 3, 2 / 3}}]; data = RandomVariate[MixtureDistribution[{1, 1, 1, 1}, {dn1, dn2, dn3, dn4}], 400];

Plot clusters in data using Manhattan distance:

Wolfram Language code: ListPlot[FindClusters[data, Method -> "Spectral", DistanceFunction -> ManhattanDistance]]

"NeighborhoodRadius"  (2)

Find clusters by specifying the "NeighborhoodRadius" suboption:

Wolfram Language code: FindClusters[{1, 2, 10, 12, 3, 1, 13, 25, 100}, Method -> {"Spectral", "NeighborhoodRadius" -> .1}]

Generate two moon-shaped datasets and visualize them:

Wolfram Language code: circle[r_, theta_] := {r Sin[theta], r Cos[theta]}; points = RandomVariate[MixtureDistribution[{1, 1}, { UniformDistribution[{{2, 2.5}, {0, Pi}}], UniformDistribution[{{3, 4}, {Pi, 2Pi}}] } ], 1000]; data = circle@@@points; ListPlot[data, PlotRange -> All]

Plot different clusterings of data using the "Spectral" method by varying the "NeighborhoodRadius":

Wolfram Language code: table = Table[ListPlot[FindClusters[data, Method -> {"Spectral", "NeighborhoodRadius" -> p}]], {p, {0.05, 0.1, 0.2, 0.4}}]
