Arrowheads

Arrowheads[spec]

is a graphics directive specifying that arrows that follow should have arrowheads with sizes, positions, and forms specified by spec.

Details and Options

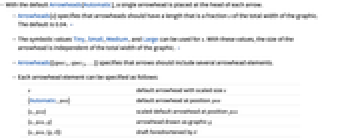

  • With the default Arrowheads[Automatic], a single arrowhead is placed at the head of each arrow.
  • Arrowheads[s] specifies that arrowheads should have a length that is a fraction s of the total width of the graphic. The default is 0.04. »
  • The symbolic values Tiny, Small, Medium, and Large can be used for s. With these values, the size of the arrowhead is independent of the total width of the graphic. »
  • Arrowheads[{spec1,spec2,…}] specifies that arrows should include several arrowhead elements.
  • Each arrowhead element can be specified as follows:
  • sdefault arrowhead with scaled size s
    {Automatic,pos}default arrowhead at position pos
    {s,pos}scaled default arrowhead at position pos
    {s,pos,g}arrowhead drawn as graphic g
    {s,pos,{g,δ}}shaft foreshortened by δ

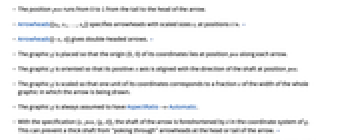

  • The position pos runs from 0 to 1 from the tail to the head of the arrow.
  • Arrowheads[{s0,s1,…,sn}] specifies arrowheads with scaled sizes si at positions i/n. »
  • Arrowheads[{-s,s}] gives double‐headed arrows. »
  • The graphic g is placed so that the origin {0,0} of its coordinates lies at position pos along each arrow.
  • The graphic g is oriented so that its positive axis is aligned with the direction of the shaft at position pos.
  • The graphic g is scaled so that one unit of its coordinates corresponds to a fraction s of the width of the whole graphic in which the arrow is being drawn.
  • The graphic g is always assumed to have AspectRatio->Automatic.
  • With the specification {s,pos,{g,δ}}, the shaft of the arrow is foreshortened by δ in the coordinate system of g. This can prevent a thick shaft from "poking through" arrowheads at the head or tail of the arrow. »
  • In 3D, the default option setting Appearance->"Flat" makes arrowheads always be rendered in the plane of the screen. Appearance->"Projected" makes them be rendered in 3D, and projected into the plane of the screen.

Examples

open all close all

Basic Examples  (3)

A 2D arrow:

Wolfram Language code: {Graphics[{Arrowheads[.1], Arrow[{{0, 0}, {2, 1}}]}], Graphics[{Arrowheads[.1], Arrow[BezierCurve[{{0, 0}, {1, 1}, {2, 0}}]]}]}

A 3D arrow:

Wolfram Language code: {Graphics3D[{Arrowheads[.1], Arrow[{{0, 0, 0}, {2, 1, 1}}]}], Graphics3D[{Arrowheads[.1], Arrow[BSplineCurve[{{0, 0, 0}, {1, 1, 1}, {2, -1, 1}}]]}]}

A full 3D arrow primitive using tubes:

Wolfram Language code: {Graphics3D[{Arrowheads[.1], Arrow[Tube[{{0, 0, 0}, {2, 1, 1}}]]}], Graphics3D[{Arrowheads[.1], Arrow[Tube[BSplineCurve[{{0, 0, 0}, {1, 1, 1}, {2, -1, 1}}]]]}]}

Scope  (16)

Arrow Sizes  (5)

Arrowheads with scaled sizes:

Wolfram Language code: Table[Graphics[{Arrowheads[i], Arrow[{{0, 0}, {2, 1}}]}, PlotLabel -> i], {i, {.1, .2, .4}}]
Wolfram Language code: Table[Graphics[{Arrowheads[i], Arrow[BezierCurve[{{0, 0}, {1, -1}, {2, 1}}]]}, PlotLabel -> i], {i, {.1, .2, .4}}]

Arrowheads with scaled sizes in 3D:

Wolfram Language code: Table[Graphics3D[{Arrowheads[i], Arrow[{{0, 0, 0}, {2, 1, 1}}]}, PlotLabel -> i], {i, {.1, .2, .4}}]
Wolfram Language code: Table[Graphics3D[{Arrowheads[i], Arrow[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]}, PlotLabel -> i], {i, {.1, .2, .4}}]

Arrowheads with scaled sizes for tubes in 3D:

Wolfram Language code: Table[Graphics3D[{Arrowheads[i], Arrow[Tube[{{0, 0, 0}, {2, 1, 1}}, 0.02]]}, PlotLabel -> i], {i, {.1, .2, .4}}]
Wolfram Language code: Table[Graphics3D[{Arrowheads[i], Arrow[Tube[BSplineCurve[{{0, 0, 0}, {.2, 1, .5}, {2, 1, 1}}], 0.02]]}, PlotLabel -> i], {i, {.1, .2, .4}}]

Symbolic values to specify predefined absolute sizes of arrowheads:

Wolfram Language code: Table[Graphics[{Arrowheads[i], Arrow[{{0, 0}, {2, 1}}]}, PlotRange -> {{0, 2}, {0, 1}}, PlotLabel -> i], {i, {Tiny, Small, Medium, Large}}]
Wolfram Language code: Table[Graphics[{Arrowheads[i], Arrow[BezierCurve[{{0, 0}, {1, -1}, {2, 1}}]]}, PlotRange -> {{0, 2}, {-0.5, 1}}, PlotLabel -> i], {i, {Tiny, Small, Medium, Large}}]

Symbolic values in 3D:

Wolfram Language code: Table[Graphics3D[{Arrowheads[i], Arrow[{{0, 0, 0}, {2, 1, 1}}]}, PlotLabel -> i], {i, {Tiny, Small, Medium, Large}}]
Wolfram Language code: Table[Graphics3D[{Arrowheads[i], Arrow[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]}, PlotLabel -> i], {i, {Tiny, Small, Medium, Large}}]

With tubed arrows:

Wolfram Language code: Table[Graphics3D[{Arrowheads[i], Arrow[Tube[{{0, 0, 0}, {2, 1, 1}}, 0.02]]}, PlotLabel -> i], {i, {Tiny, Small, Medium, Large}}]
Wolfram Language code: Table[Graphics3D[{Arrowheads[i], Arrow[Tube[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}], 0.02]]}, PlotLabel -> i], {i, {Tiny, Small, Medium, Large}}]

Multiple Arrowheads  (8)

Double-headed arrow:

Wolfram Language code: {Graphics[{Arrowheads[{-.1, .1}], Arrow[{{0, 0}, {2, 1}}]}], Graphics[{Arrowheads[{-.1, .1}], Arrow[BezierCurve[{{0, 0}, {1, -1}, {2, 1}}]]}, PlotRange -> {{0, 2}, {-0.5, 1}}]}
Wolfram Language code: {Graphics3D[{Arrowheads[{-.1, .1}], Arrow[{{0, 0, 0}, {2, 1, 1}}]}], Graphics3D[{Arrowheads[{-.1, .1}], Arrow[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]}]}
Wolfram Language code: {Graphics3D[{Arrowheads[{-.1, .1}], Arrow[Tube[{{0, 0, 0}, {2, 1, 1}}]]}], Graphics3D[{Arrowheads[{-.1, .1}], Arrow[Tube[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]]}]}

Uniformly spaced arrowheads with specific sizes:

Wolfram Language code: {Graphics[{Arrowheads[{.05, .1, .1, .05}], Arrow[{{0, 0}, {2, 1}}]}], Graphics[{Arrowheads[{.05, .1, .1, .05}], Arrow[BezierCurve[{{0, 0}, {1, -1}, {2, 1}}]]}, PlotRange -> {{-0.1, 2}, {-0.5, 1}}]}
Wolfram Language code: {Graphics3D[{Arrowheads[{.05, .1, .1, .05}], Arrow[{{0, 0, 0}, {2, 1, 1}}]}], Graphics3D[{Arrowheads[{.05, .1, .1, .05}], Arrow[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]}]}
Wolfram Language code: {Graphics3D[{Arrowheads[{.05, .1, .1, .05}], Arrow[Tube[{{0, 0, 0}, {2, 1, 1}}]]}], Graphics3D[{Arrowheads[{.05, .1, .1, .05}], Arrow[Tube[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]]}]}

Specify arrowhead size and position:

Wolfram Language code: Table[Graphics[{Arrowheads[{{.1, i}}], Arrow[{{0, 0}, {1, 1 / 3}}]}], {i, {0.2, 0.5, 1}}]
Wolfram Language code: Table[Graphics[{Arrowheads[{{.1, i}}], Arrow[BezierCurve[{{0, 0}, {1, -1}, {2, 1}}]]}, PlotRange -> {{-0.1, 2}, {-0.5, 1}}], {i, {0.2, 0.5, 1}}]

Specify size and position in 3D:

Wolfram Language code: Table[Graphics3D[{Arrowheads[{{.1, i}}], Arrow[{{0, 0, 0}, {2, 1, 1}}]}], {i, {0.2, 0.5, 1}}]
Wolfram Language code: Table[Graphics3D[{Arrowheads[{{.1, i}}], Arrow[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]}], {i, {0.2, 0.5, 1}}]

With tubed arrows:

Wolfram Language code: Table[Graphics3D[{Arrowheads[{{.1, i}}], Arrow[Tube[{{0, 0, 0}, {2, 1, 1}}]]}], {i, {0.2, 0.5, 1}}]
Wolfram Language code: Table[Graphics3D[{Arrowheads[{{.1, i}}], Arrow[Tube[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]]}], {i, {0.2, 0.5, 1}}]

Multiple arrowheads with specific sizes and positions:

Wolfram Language code: {Graphics[{Arrowheads[{{.1, 0}, {.2, .5}, {.3, 1}}], Arrow[{{0, 0}, {2, 1}}]}], Graphics[{Arrowheads[{{.1, 0}, {.2, .5}, {.3, 1}}], Arrow[BezierCurve[{{0, 0}, {1, -1}, {2, 1}}]]}, PlotRange -> {{-0.1, 2}, {-0.5, 1}}]}

In 3D:

Wolfram Language code: {Graphics3D[{Arrowheads[{{.1, 0}, {.2, .5}, {.3, 1}}], Arrow[{{0, 0, 0}, {2, 1, 1}}]}], Graphics3D[{Arrowheads[{{.1, 0}, {.2, .5}, {.3, 1}}], Arrow[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]}]}

With tubed arrows:

Wolfram Language code: {Graphics3D[{Arrowheads[{{.1, 0}, {.2, .5}, {.3, 1}}], Arrow[Tube[{{0, 0, 0}, {2, 1, 1}}]]}], Graphics3D[{Arrowheads[{{.1, 0}, {.2, .5}, {.3, 1}}], Arrow[Tube[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]]}]}

Reverse arrowheads by assigning negative size:

Wolfram Language code: {Graphics[{Arrowheads[{{-.1, 0}, {.1, .4}, {-.1, .6}, {.1, 1}}], Arrow[{{0, 0}, {2, 1}}]}], Graphics[{Arrowheads[{{-.1, 0}, {.1, .4}, {-.1, .6}, {.1, 1}}], Arrow[BezierCurve[{{0, 0}, {1, -1}, {2, 1}}]]}]}

In 3D:

Wolfram Language code: {Graphics3D[{Arrowheads[{{-.1, 0}, {.1, .4}, {-.1, .6}, {.1, 1}}], Arrow[{{0, 0, 0}, {2, 1, 1}}]}], Graphics3D[{Arrowheads[{{-.1, 0}, {.1, .4}, {-.1, .6}, {.1, 1}}], Arrow[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]}]}

With tubed arrows:

Wolfram Language code: {Graphics3D[{Arrowheads[{{-.1, 0}, {.1, .4}, {-.1, .6}, {.1, 1}}], Arrow[Tube[{{0, 0, 0}, {2, 1, 1}}]]}], Graphics3D[{Arrowheads[{{-.1, 0}, {.1, .4}, {-.1, .6}, {.1, 1}}], Arrow[Tube[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]]}]}

Multiple disconnected arrows:

Wolfram Language code: s = {{0, 0}, {2, 1.5}, {4, 0}};
Wolfram Language code: {Graphics[Arrow[Line[{s, s + 1}]]], Graphics[Arrow[BezierCurve[{s, s + 1}]]]}
Wolfram Language code: s = {{0, 0, 0}, {1, 2, 2}, {4, 2, 2}};
Wolfram Language code: {Graphics3D[Arrow[Line[{s, s + 3}]]], Graphics3D[Arrow[BSplineCurve[{s, s + 3}]]], Graphics3D[Arrow[Tube[BSplineCurve[{s, s + 3}]]]]}

Multiple disconnected arrows with different arrowheads:

Wolfram Language code: s = {{0, 0}, {2, 1.5}, {4, 0}};
Wolfram Language code: {Graphics[{Arrowheads[{{0.04}, {0.1}}], Arrow[Line[{s, s + 1}]]}], Graphics[{Arrowheads[{{0.04}, {0.1}}], Arrow[BezierCurve[{s, s + 1}]]}]}
Wolfram Language code: s = {{0, 0, 0}, {1, 2, 2}, {4, 2, 2}};
Wolfram Language code: {Graphics3D[{Arrowheads[{{0.04}, {0.1}}], Arrow[Line[{s, s + 3}]]}], Graphics3D[{Arrowheads[{{0.04}, {0.1}}], Arrow[BSplineCurve[{s, s + 3}]]}], Graphics3D[{Arrowheads[{{0.04}, {0.1}}], Arrow[Tube[BSplineCurve[{s, s + 3}]]]}]}

Custom Arrowheads  (3)

Graphics can be used as an arrowhead:

Wolfram Language code: h = Graphics[Line[{{{-1, 1 / 2}, {0, 0}, {-1, -1 / 2}}, {{0, 1 / 2}, {1, 0}, {0, -1 / 2}}, {{1, 1 / 2}, {2, 0}, {1, -1 / 2}}}]]
Wolfram Language code: Graphics[{Arrowheads[{{Automatic, Automatic, h}}], Arrow[{{0, 0}, {1, 1}}], Arrow[{{0, 0}, {0, 1}}], Arrow[{{0, 0}, {1, 0}}]}]

Graphics3D can also be used as an arrowhead for 3D arrow:

Wolfram Language code: h = Graphics3D[Line[{{{-1, 1 / 2, 0}, {0, 0, 0}, {-1, -1 / 2, 0}}, {{0, 1 / 2, 0}, {1, 0, 0}, {0, -1 / 2, 0}}, {{1, 1 / 2, 0}, {2, 0, 0}, {1, -1 / 2, 0}}}]]
Wolfram Language code: Graphics3D[{Arrowheads[{{Automatic, Automatic, h}}], Arrow[{{0, 0, 0}, {1, 0, 0}}], Arrow[{{0, 0, 0}, {0, 1, 0}}], Arrow[{{0, 0, 0}, {0, 0, 1}}]}]

Foreshorten the shaft:

Wolfram Language code: h = Graphics[Line[{{-1, 1 / 2}, {0, 0}, {-1, -1 / 2}, {-1, 1 / 2}}]];
Wolfram Language code: Table[Graphics[{Thick, Arrowheads[{{.5, 1, {h, i}}}], Arrow[{{0, 0}, {2, 1}}]}], {i, {0, .5, 1}}]
Wolfram Language code: Table[Graphics[{Thick, Arrowheads[{{.5, 1, {h, i}}}], Arrow[BezierCurve[{{0, 0}, {1, -1}, {2, 1}}]]}], {i, {0, .5, 1}}]

In 3D:

Wolfram Language code: h = Graphics3D[Line[{{-1, 1 / 2, 0}, {0, 0, 0}, {-1, -1 / 2, 0}, {-1, 1 / 2, 0}}]];
Wolfram Language code: Table[Graphics3D[{Thick, Arrowheads[{{.5, 1, {h, i}}}], Arrow[{{0, 0, 0}, {2, 1, 1}}]}], {i, {0, .5, 1}}]

With tubed arrows:

Wolfram Language code: Table[Graphics3D[{Thick, Opacity[.5], Arrowheads[{{.1, 1, {Graphics3D[Sphere[]], i}}}], Arrow[BSplineCurve[{{0, 0, 0}, {.2, 1, 0.5}, {2, 1, 1}}]]}, PlotRange -> {{0, 3}, {0, 2}, {0, 2}}], {i, {0, .5, 1}}]

Applications  (1)

A billboard tree using a projected arrowhead:

Wolfram Language code: tree = \!\(\*GraphicsBox[«2»]\);
Wolfram Language code: Graphics3D[{Arrowheads[{{.1, 1, tree}}, Appearance -> "Projected"], Arrow[{{0, 0, 0}, {0, -0, 0.001}}], Green, Cuboid[{-10, -10, -3}, {10, 10, -2.8}]}]

Neat Examples  (1)

Moving arrowheads:

Wolfram Language code: Animate[Graphics[{Arrowheads[{{.1, t}, {.1, Mod[t + 1 / 3, 1]}, {.1, Mod[t + 2 / 3, 1]}}], Thick, Arrow[{{0, 0}, {10, 5}}]}, PlotRangePadding -> 1], {t, 0, 1}, AnimationRunning -> False]
