BondLabelStyle

is an option for MoleculePlot and MoleculePlot3D that specifies the style to use for bond labels.

Details
Details and Options Details and Options
Examples
Basic Examples
See Also
History
Cite this Page

BondLabelStyle

BondLabelStyle

is an option for MoleculePlot and MoleculePlot3D that specifies the style to use for bond labels.

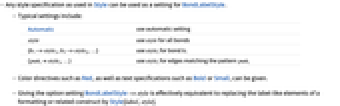

Details

  • Any style specification as used in Style can be used as a setting for BondLabelStyle.
  • Typical settings include:
  • Automaticuse automatic setting
    styleuse style for all bonds
    {b1->style1,b2->style2,…}use stylei for bond bi
    {pattistylei,…}use stylei for edges matching the pattern patti
  • Color directives such as Red, as well as text specifications such as Bold or Small, can be given.
  • Giving the option setting BondLabelStyle->style is effectively equivalent to replacing the label-like elements of a formatting or related construct by Style[label,style].

Examples

Basic Examples  (3)

Set the style for all bond labels:

Wolfram Language code: MoleculePlot[Molecule["butane"], BondLabels -> "Hi", BondLabelStyle -> Directive[Red, Italic, 18]]

Specify the style for individual vertex labels:

Wolfram Language code: MoleculePlot[Molecule["butane"], BondLabels -> "Hi", BondLabelStyle -> {Bond[{1, 2}, "Single"] -> Directive[Red, Italic, 18], _ -> Directive[Blue, Bold, 18]}]

Specify the style for individual atom labels using a pattern:

Wolfram Language code: MoleculePlot[Molecule["benzaldehyde"], BondLabels -> "BondIndex", BondLabelStyle -> {Bond[{_, "O"}] -> Directive[Blue, Italic, 15], _ -> Directive[Red, Bold, 15]}]

Plot the molecule with labels in 3D:

Wolfram Language code: MoleculePlot3D[Molecule["tetraaminomethane"], BondLabels -> "BondIndex", BondLabelStyle -> {Bond[{_, "H"}] -> Directive[Blue, Italic, 15], _ -> Directive[Red, Bold, 15]}]
