CellFrameMargins

is an option for Cell that specifies the absolute margins in printer’s points to leave inside a frame that is drawn around a cell.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
See Also
Tech Notes
Related Guides
History
Cite this Page

CellFrameMargins

CellFrameMargins

is an option for Cell that specifies the absolute margins in printer’s points to leave inside a frame that is drawn around a cell.

Details

  • Possible settings are:
  • distthe same margins on all sides
    {{left,right},{bottom,top}}different margins on different sides
  • CellFrameMargins defines the margins for the box used to draw the background color of a top-level cell. The margins will be used to define the extent of the background color even if there is no cell frame.
  • If Background->None is set or the background matches the ambient background, then the margins are only applied if a CellFrame is present. If the cell frame is not drawn on all sides, then the margin will only be applied to the sides with a frame setting.
  • inline and attached cells with a background color and no CellFrame do not apply CellFrameMargins.

Examples

open all close all

Basic Examples  (2)

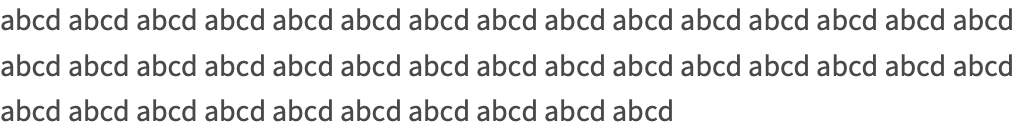

Specify the space to be left between contents and frame on all sides:

Wolfram Language code: CellPrint[Table[TextCell[StringJoin[Table["abcd ", {40}]], "Text", CellFrame -> True, CellFrameMargins -> m], {m, 0, 18, 9}]]

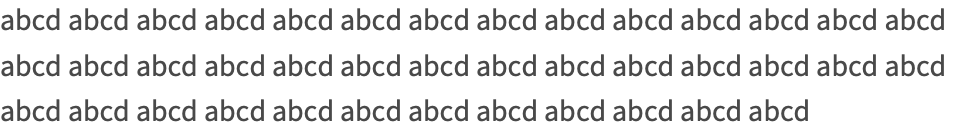

Set different frame margins on each side:

Wolfram Language code: CellPrint[TextCell[StringJoin[Table["abcd ", {40}]], "Text", CellFrame -> True, CellFrameMargins -> {{100, 200}, {3, 12}}]]

Scope  (3)

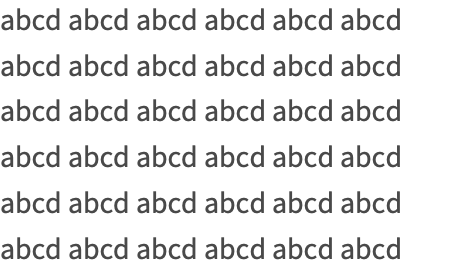

Margins specified for a partial cell frame:

Wolfram Language code: CellPrint[TextCell[StringJoin[Table["abcd ", {40}]], "Text", CellFrame -> {{True, False}, {False, True}}, CellFrameMargins -> 20, CellMargins -> {{100, 100}, {10, 10}}]]

Margins specified for a cell with a background color:

Wolfram Language code: CellPrint[TextCell[StringJoin[Table["abcd ", {40}]], "Text", Background -> Lighter@Orange, CellFrameMargins -> 20, CellMargins -> {{100, 100}, {10, 10}}]]

Margins specified for an inline cell with a cell frame:

Wolfram Language code: Row[{1, ExpressionCell[2, CellFrame -> 1, CellFrameMargins -> 5], 3}]

A background color alone in an inline cell does not add margins:

Wolfram Language code: Row[{1, ExpressionCell[2, Background -> Gray, CellFrameMargins -> 5], 3}]
