CreateWindow

CreateWindow[]

creates an empty window in the front end.

CreateWindow[expr]

creates a window displaying the notebook expression expr, and opens it in the front end.

CreateWindow[expr,obj]

replaces the notebook represented by the notebook object obj with the one obtained from expr.

Details and Options

Examples

open all close all

Basic Examples  (2)

Create a blank notebook window:

Wolfram Language code: CreateWindow[];

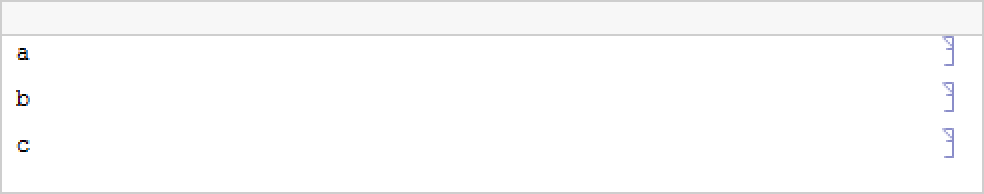

Create a notebook window with specified contents:

Wolfram Language code: nb = CreateWindow[DocumentNotebook[{a, b, c}]];

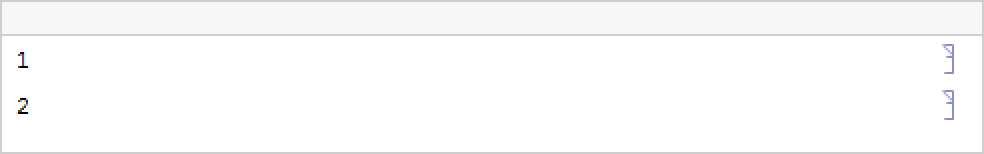

Replace the contents of an existing window:

Wolfram Language code: CreateWindow[DocumentNotebook[{1, 2}], nb];

Scope  (2)

Create a palette window:

Wolfram Language code: CreateWindow[PaletteNotebook[{"Square root", Button[Sqrt[π], p = N[Sqrt[π]]]}]];

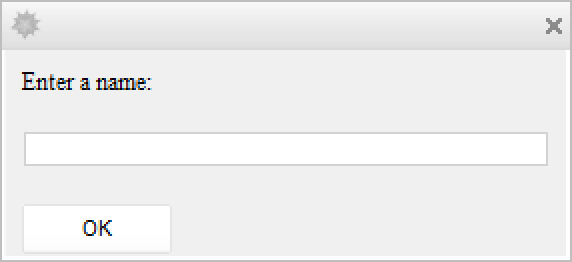

Create a dialog window:

Wolfram Language code: CreateWindow[DialogNotebook[{TextCell["Enter a name: "], InputField[Dynamic[nm], String], DefaultButton[DialogReturn[ret = nm]]}]];

Options  (5)

Background  (1)

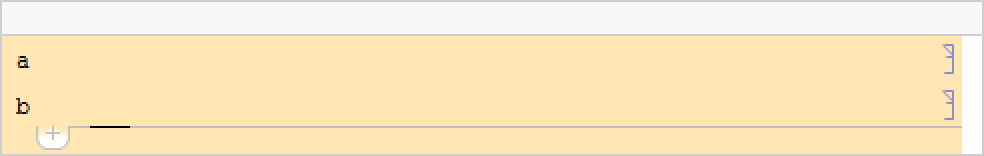

Set a background color:

Wolfram Language code: CreateWindow[DocumentNotebook[{a, b}], Background -> RGBColor[1, .9, .7]];

CellDingbat  (1)

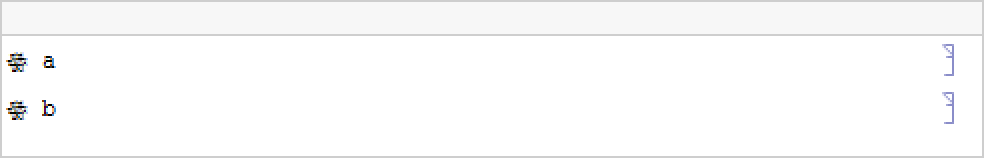

Set a cell dingbat:

Wolfram Language code: CreateWindow[DocumentNotebook[{a, b}], CellDingbat -> ""];

CellGrouping  (1)

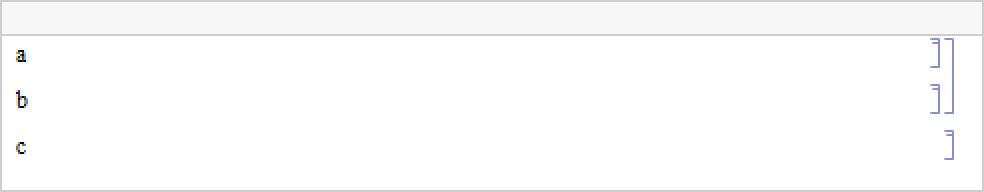

Make a notebook with manually grouped cells:

Wolfram Language code: CreateWindow[DocumentNotebook[{CellGroup[{a, b}], c}], CellGrouping -> Manual];

TextAlignment  (1)

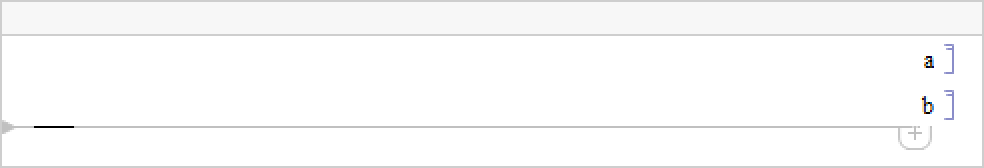

Align contents on the right:

Wolfram Language code: CreateWindow[DocumentNotebook[{a, b}], TextAlignment -> Right];

Visible  (1)

Create a notebook that is not visible:

Wolfram Language code: nb = CreateWindow[DocumentNotebook[{a, b}], Visible -> False];

Make the notebook appear:

Wolfram Language code: SetOptions[nb, Visible -> True]

Properties & Relations  (5)

DocumentNotebook creates an in-cell representation of a notebook document:

Wolfram Language code: DocumentNotebook[{x + y, 1 / x + 1 / y}]

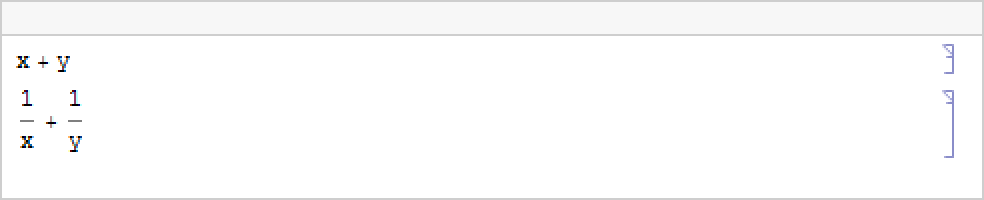

CreateWindow puts the document into its own window:

Wolfram Language code: CreateWindow[%];

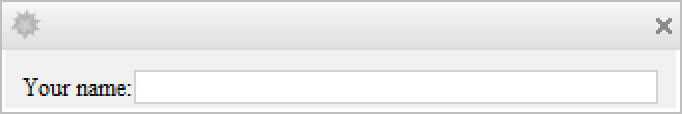

PaletteNotebook and DialogNotebook create representations of specialized notebooks:

Wolfram Language code: PaletteNotebook[{PasteButton[Grid[{{a, b}, {c, d}}]]}]
Wolfram Language code: DialogNotebook[{TextCell[Row[{"Your name:", InputField[]}]]}]

Use CreateWindow to put a palette or dialog expression into its own notebook window:

Wolfram Language code: CreateWindow[%];

CreateDocument is essentially a combination of DocumentNotebook and CreateWindow:

Wolfram Language code: CreateDocument[{x + y, 1 / x + 1 / y}];

CreatePalette acts like a combination of PaletteNotebook and CreateWindow:

Wolfram Language code: CreatePalette[{"Square root", Button[Sqrt[π], p = N[Sqrt[π]]]}];

CreateDialog acts like a combination of DialogNotebook and CreateWindow:

Wolfram Language code: CreateDialog[{"Click OK to close", DefaultButton[]}];
