CurvatureFlowFilter

CurvatureFlowFilter[image]

applies a mean curvature flow filter to image.

CurvatureFlowFilter[image,t]

specifies the amount of curvature flow time t to be applied.

CurvatureFlowFilter[image,t,k]

applies the curvature flow with a modified conductance term parametrized by k.

Details

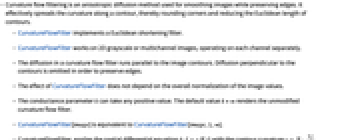

  • Curvature flow filtering is an anisotropic diffusion method used for smoothing images while preserving edges. It effectively spreads the curvature along a contour, thereby rounding corners and reducing the Euclidean length of contours.
  • CurvatureFlowFilter implements a Euclidean shortening filter.
  • CurvatureFlowFilter works on 2D grayscale or multichannel images, operating on each channel separately.
  • The diffusion in a curvature flow filter runs parallel to the image contours. Diffusion perpendicular to the contours is omitted in order to preserve edges.
  • The effect of CurvatureFlowFilter does not depend on the overall normalization of the image values.
  • The conductance parameter k can take any positive value. The default value k=∞ renders the unmodified curvature flow filter.
  • CurvatureFlowFilter[image] is equivalent to CurvatureFlowFilter[image,1,∞].
  • CurvatureFlowFilter applies the partial differential equation partial_tf=kappa TemplateBox[{{del , f}}, Abs] with the contour curvature kappa= del . (del f)/(TemplateBox[{{del , f}}, Abs]) to every image channel .
  • In CurvatureFlowFilter[image,t], t parametrizes the evolution of the curvature flow and thereby the spatial range of the filter.
  • If a parameter k is supplied, the curvature flow partial_tf=TemplateBox[{{del , f}}, Abs]del .c_k(TemplateBox[{{del , f}}, Abs]) (del f)/(TemplateBox[{{del , f}}, Abs]) with a modified conductance term c_k(TemplateBox[{{del , f}}, Abs])=ⅇ^(-|del f|^2/k^2) is used.

Examples

open all close all

Basic Examples  (1)

Diffusing an angiography image:

Wolfram Language code: CurvatureFlowFilter[[image], 2]

Scope  (4)

Data  (2)

Filtering of grayscale image:

Wolfram Language code: CurvatureFlowFilter[[image]]

Filtering of multichannel image:

Wolfram Language code: CurvatureFlowFilter[[image]]

Parameters  (2)

Specify the amount of diffusion:

Wolfram Language code: CurvatureFlowFilter[[image], #]& /@ {2, 5, 10, 20}

Specify the conductance term:

Wolfram Language code: CurvatureFlowFilter[[image], 5, #]& /@ {1, 10}

Applications  (6)

Remove salt-and-pepper noise:

Wolfram Language code: CurvatureFlowFilter[[image]]

Remove Gaussian color noise from an image:

Wolfram Language code: i = [image]; CurvatureFlowFilter[i]

Remove smaller circles from the image:

Wolfram Language code: CurvatureFlowFilter[[image], #]& /@ {1, 20, 40}

Use a CurvatureFlowFilter to remove smaller stars from an astronomical image:

Wolfram Language code: CurvatureFlowFilter[[image]]

Unsharp masking using CurvatureFlowFilter:

Wolfram Language code: i = [image]; 2i - CurvatureFlowFilter[i, 25]

Smooth the image before converting it to a vector graphic:

Wolfram Language code: CurvatureFlowFilter[[image], 3]
Wolfram Language code: ImageGraphics[%]

Properties & Relations  (1)

CurvatureFlowFilter returns an image of a real type:

Wolfram Language code: ImageType /@ {[image], CurvatureFlowFilter[[image], 1]}
