DFixedPoints

DFixedPoints[eqn,x[t],t]

gives the fixed points for a differential equation.

DFixedPoints[{eqn1,eqn2,…},{x1[t],x2[t],…},t]

gives the fixed points for a system of differential equations.

Details and Options

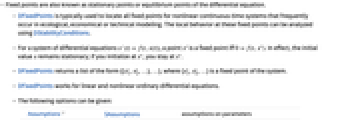

  • Fixed points are also known as stationary points or equilibrium points of the differential equation.
  • DFixedPoints is typically used to locate all fixed points for nonlinear continuous-time systems that frequently occur in ecological, economical or technical modeling. The local behavior at these fixed points can be analyzed using DStabilityConditions.
  • For a system of differential equations , a point is a fixed point iff . In effect, the initial value remains stationary; if you initialize at , you stay at .
  • DFixedPoints returns a list of the form {{,,…},…}, where {,,…} is a fixed point of the system.
  • Systems of higher-order ODEs are treated as systems of first-order ODEs with additional variables corresponding to the higher-order derivatives. In this case, the fixed points are given as nested lists {{x,x',…},{y,y',…},…}.
  • DFixedPoints works for linear and nonlinear ordinary differential equations.
  • The following options can be given:
  • Assumptions $Assumptionsassumptions on parameters

Examples

open all close all

Basic Examples  (4)

Find the fixed point for the equation :

Wolfram Language code: DFixedPoints[x'[t] == -2x[t], x[t], t]

Find the fixed point for the equation :

Wolfram Language code: DFixedPoints[x'[t] == 2x[t] + 1, x[t], t]

Find the fixed points and conditions for stability for the equation :

Wolfram Language code: DFixedPoints[y'[t] == a y[t], y, t]
Wolfram Language code: DStabilityConditions[y'[t] == a y[t], y, t]

Plot several solutions for different values of a:

Wolfram Language code: sol = DSolveValue[{y'[t] == a y[t], y[0] == -1}, y[t], t]
Wolfram Language code: Table[Plot[sol, {t, 0, 4}, Rule[...]], {a, {-1.1, 1.1}}]

Fixed points and stability analysis of a two-dimensional system:

Wolfram Language code: DFixedPoints[{x'[t] == b x[t] + y[t], y'[t] == -2 x[t] + a y[t]}, {x, y}, t]
Wolfram Language code: DStabilityConditions[{x'[t] == b x[t] + y[t], y'[t] == -2 x[t] + a y[t]}, {x, y}, t]

Plot the parameter region for which the system is stable:

Wolfram Language code: RegionPlot[%[[1, 2]], {a, -5, 5}, {b, -5, 5}]

Scope  (23)

Linear Equations  (5)

Find the fixed point for the equation :

Wolfram Language code: DFixedPoints[x'[t] == -3 x[t], x, t]

A first-order linear inhomogeneous equation:

Wolfram Language code: DFixedPoints[y'[t] == a y[t] + 5, y, t]
Wolfram Language code: DStabilityConditions[y'[t] == a y[t] + 5, y, t]

Plot the unstable solution for :

Wolfram Language code: sol = DSolveValue[{y'[t] == a y[t] + 5, y[0] == 1}, y[t], t]; Plot[sol /. a -> 0.5, {t, 0, 10}]

Plot the stable solution for :

Wolfram Language code: sol = DSolveValue[{y'[t] == a y[t] + 5, y[0] == 1}, y[t], t]; Plot[sol /. a -> -0.5, {t, 0, 10}]

Second-order linear equation:

Wolfram Language code: DFixedPoints[y''[t] + a y'[t] + b y[t] == 0, y, t]

Third-order linear equation:

Wolfram Language code: DFixedPoints[y'''[t] + a y''[t] + b y'[t] + c y[t] == 0, y, t]

Higher-order inhomogeneous ODE:

Wolfram Language code: DFixedPoints[y'''[x] + 5y''[x] + 3y'[x] + 6y[x] == 3, y, x]

Solve the ODE using coordinates of the fixed point as initial values:

Wolfram Language code: DSolve[{y'''[x] + 5y''[x] + 3y'[x] + 6y[x] == 3, y[0] == 1 / 2, y'[0] == 0, y''[0] == 0}, y[x], x]

Nonlinear Equations  (3)

Stability analysis of a nonlinear differential equation:

Wolfram Language code: DFixedPoints[x'[t] == x[t]^2 + 3x[t], x, t]
Wolfram Language code: DStabilityConditions[x'[t] == x[t]^2 + 3x[t], x, t]

Use StreamPlot to demonstrate the stability:

Wolfram Language code: StreamPlot[{1, x^2 + 3x}, {t, 0, 10}, {x, -4, 1}]

The stability of a first-order nonlinear equation:

Wolfram Language code: DFixedPoints[x'[t] == x[t]^2 - 5x[t] + 6, x, t]
Wolfram Language code: DStabilityConditions[x'[t] == x[t]^2 - 5x[t] + 6, x, t]

Plot the solution for the initial value :

Wolfram Language code: sol = DSolveValue[{x'[t] == x[t]^2 - 5x[t] + 6, x[0] == 5 / 2}, x[t], t]
Wolfram Language code: Plot[sol, {t, 0, 10}, PlotRange -> All]

Use StreamPlot to demonstrate the stability at point :

Wolfram Language code: StreamPlot[{1, x^2 - 5x + 6}, {t, 0, 10}, {x, 0, 4}]

Consider a second-order nonlinear ODE:

Wolfram Language code: eqn = y[x]^2 + 3 y'[x] + y''[x] == 2;

DSolve is unable to solve this equation:

Wolfram Language code: DSolve[eqn, y, x]

Find the fixed points for the equation using DFixedPoints:

Wolfram Language code: DFixedPoints[eqn, y, x]

Transform the equation into a system of first-order ODEs:

Wolfram Language code: sys = {y'[x] == y1[x], y[x]^2 + 3 y1[x] + y1'[x] == 2};

Plot the trajectories of the system in the plane:

Wolfram Language code: StreamPlot[{y1, 2 - y^2 - 3y1}, {y, -3, 3}, {y1, -3, 3}, ...]

Linear Systems  (11)

A stable linear system of uncoupled equations:

Wolfram Language code: DFixedPoints[{x'[t] == -x[t], y'[t] == -y[t]}, {x, y}, t]

Trajectories of the system:

Wolfram Language code: StreamPlot[{-x, -y}, {x, -3, 3}, {y, -3, 3}, ...]

An unstable linear system of uncoupled equations:

Wolfram Language code: DFixedPoints[{x'[t] == x[t], y'[t] == y[t]}, {x, y}, t]

Trajectories of the system:

Wolfram Language code: StreamPlot[{x, y}, {x, -3, 3}, {y, -3, 3}, ...]

The stability of a linear system with constant coefficients:

Wolfram Language code: DFixedPoints[{x'[t] == -x[t] - y[t], y'[t] == 2x[t] - y[t]}, {x, y}, t]
Wolfram Language code: DStabilityConditions[{x'[t] == -x[t] - y[t], y'[t] == 2x[t] - y[t]}, {x, y}, t]

Use StreamPlot to visualize the stability:

Wolfram Language code: StreamPlot[{-x - y, 2x - y}, {x, -3, 3}, {y, -3, 3}, StreamPoints -> Coarse, Epilog -> {Red, PointSize[Medium], Point[{0, 0}]}]

Unstable system with constant coefficients:

Wolfram Language code: DFixedPoints[{x'[t] == 3x[t] - 4y[t], y'[t] == x[t] - y[t]}, {x, y}, t]

Trajectories of the system:

Wolfram Language code: StreamPlot[{3x - 4y, x - y}, {x, -3, 3}, {y, -3, 3}, Rule[...]]

Stable system with constant coefficients:

Wolfram Language code: DFixedPoints[{x'[t] == -y[t], y'[t] == x[t]}, {x, y}, t]

Trajectories of the system:

Wolfram Language code: StreamPlot[{-y, x}, {x, -3, 3}, {y, -3, 3}, Rule[...]]

Inhomogeneous unstable system:

Wolfram Language code: DFixedPoints[{x'[t] == x[t] + y[t] - 2, y'[t] == x[t] - y[t]}, {x, y}, t]

Trajectories of the system:

Wolfram Language code: StreamPlot[{x + y - 2, x - y}, {x, -3, 3}, {y, -3, 3}, Rule[...]]

Inhomogeneous stable system:

Wolfram Language code: DFixedPoints[{x'[t] == -x[t] - y[t] - 1, y'[t] == 2x[t] - y[t] + 5}, {x, y}, t]
Wolfram Language code: StreamPlot[{-x - y - 1, 2x - y + 5}, {x, -3, 3}, {y, -3, 3}, Rule[...]]

Plot the solutions:

Wolfram Language code: sol = DSolveValue[{x'[t] == -x[t] - y[t] - 1, y'[t] == 2x[t] - y[t] + 5, x[0] == 2, y[0] == 0}, {x[t], y[t]}, t]
Wolfram Language code: Plot[sol, {t, 0, 10}]

For the system of two second-order ODEs, the fixed point is a nested list {{y,y'},{z,z'}}:

Wolfram Language code: DFixedPoints[{-z[t] - 3 y'[t] + y''[t] == 2, z''[t] == y[t] + z'[t] - z[t] - 3}, {y, z}, t]

Linear system with symbolic coefficients:

Wolfram Language code: DFixedPoints[{x'[t] == β y[t] + α, y'[t] == δ x[t] - γ}, {x, y}, t]

System of four linear ODEs:

Wolfram Language code: DFixedPoints[{Derivative[1][x][t] == 2 x[t] - 5 y[t], Derivative[1][y][t] == x[t] - 2 y[t], Derivative[1][u][t] == u[t] + 2 v[t], Derivative[1][v][t] == -5 u[t] - v[t]}, {x, y, u, v}, t]

Plot the solutions:

Wolfram Language code: sol = DSolveValue[{Derivative[1][x][t] == 2 x[t] - 5 y[t], Derivative[1][y][t] == x[t] - 2 y[t], Derivative[1][u][t] == u[t] + 2 v[t], Derivative[1][v][t] == -5 u[t] - v[t]}, {x[t], y[t], u[t], v[t]}, t]
Wolfram Language code: Plot[Evaluate[sol /. {C[1] -> 1, C[2] -> 2, C[3] -> 3, C[4] -> 4}], {t, 0, 10}]

10×10 linear system with random constant coefficients:

Wolfram Language code: SeedRandom[1234]; m = RandomInteger[10, {10, 10}]; g = RandomInteger[10, 10];
Wolfram Language code: dep = {x1[t], x2[t], x3[t], x4[t], x5[t], x6[t], x7[t], x8[t], x9[t], x10[t]};
Wolfram Language code: sys = Thread[D[dep, t] == m.dep + g];
Wolfram Language code: DFixedPoints[sys, dep, t]

Nonlinear Systems  (4)

A nonlinear first-order system:

Wolfram Language code: DFixedPoints[{x'[t] == −x[t] + 2x[t] y[t], y'[t] == y[t]−x[t]^2−y[t]^2}, {x, y}, t]

Analyze the stability of the points:

Wolfram Language code: DStabilityConditions[{x'[t] == −x[t] + 2x[t] y[t], y'[t] == y[t]−x[t]^2−y[t]^2}, {x, y}, t]

Use StreamPlot to visualize the stability:

Wolfram Language code: StreamPlot[{−x + 2x y, y−x^2−y^2}, {x, -2, 2}, {y, -1, 2}, Rule[...]]

A nonlinear system with periodic fixed points:

Wolfram Language code: DFixedPoints[{x'[t] == y[t], y'[t] == Sin[x[t]]}, {x, y}, t]

Analyze the stability of the points:

Wolfram Language code: DStabilityConditions[{x'[t] == y[t], y'[t] == Sin[x[t]]}, {x, y}, t]
Wolfram Language code: StreamPlot[{y, Sin[x]}, {x, -4Pi, 4Pi}, {y, -6, 6}, Rule[...]]

A nonlinear system with unstable fixed point at origin:

Wolfram Language code: DFixedPoints[{y[t] + x[t](1−x[t]^2−y[t]^2) == x'[t], −x[t] + y[t](1−x[t]^2−y[t]^2) == y'[t]}, {x, y}, t]
Wolfram Language code: StreamPlot[{y + x(1−x^2−y^2), −x + y(1−x^2−y^2)}, {x, -3, 3}, {y, -3, 3}, Epilog -> {Blue, PointSize[Medium], Point[{0, 0}]}]

Higher-order nonlinear system:

Wolfram Language code: DFixedPoints[{x''[t] == -2(x[t]^2 + y[t]^2)x'[t] - x[t] - 1, y''[t] == -2(x[t]^2 + y[t]^2)y'[t] - y[t]}, {x, y}, t]

Options  (1)

Assumptions  (1)

A system of two nonlinear equations has an infinite number of periodic fixed points:

Wolfram Language code: DFixedPoints[{x'[t] == y[t], y'[t] == Sin[x[t]]}, {x, y}, t]

Use Assumptions to specify the range of a dependent variable:

Wolfram Language code: DFixedPoints[{x'[t] == y[t], y'[t] == Sin[x[t]]}, {x, y}, t, Assumptions -> -4 < x[t] < 4]

Applications  (11)

Physics  (5)

Stability analysis for the spring-mass system with damping:

Wolfram Language code: DFixedPoints[m u''[t] + c u'[t] + k u[t] == 0, u, t]
Wolfram Language code: DStabilityConditions[m u''[t] + c u'[t] + k u[t] == 0, u, t]

Use assumptions to simplify the stability conditions:

Wolfram Language code: DStabilityConditions[m u''[t] + c u'[t] + k u[t] == 0, u, t, Assumptions -> m > 0 && c > 0 && k > 0]

Solve the spring-mass system equation:

Wolfram Language code: sol = DSolveValue[{m u''[t] + c u'[t] + k u[t] == 0, u[0] == 1, u'[0] == 0}, u[t], t]

Plot the solution for given values of parameters:

Wolfram Language code: Plot[sol /. {m -> 1, k -> 1, c -> 0.5}, {t, 0, 20}, PlotRange -> All]

Do stability analysis for the electric circuit equation:

Wolfram Language code: DFixedPoints[l i''[t] + r i'[t] + (1/c) i[t] == 0, i, t]
Wolfram Language code: DStabilityConditions[l i''[t] + r i'[t] + (1/c) i[t] == 0, i, t]

Solve the electric circuit equation:

Wolfram Language code: sol = DSolveValue[{l i''[t] + r i'[t] + (1/c) i[t] == 0, i[0] == 1, i'[0] == 0}, i[t], t]

Plot the solution for given values of parameters:

Wolfram Language code: Plot[sol /. {r -> 0.1, l -> 5 10^-2, c -> 0.1}, {t, 0, 10}, PlotRange -> All]

Stability analysis for the damped pendulum equation:

Wolfram Language code: DFixedPoints[θ''[t] + 1 / 5 θ'[t] + 9 Sin[θ[t]] == 0, θ, t]
Wolfram Language code: DStabilityConditions[θ''[t] + 1 / 5 θ'[t] + 9 Sin[θ[t]] == 0, θ, t]

Plot the phase portrait of the system:

Wolfram Language code: StreamPlot[{θ1, -1 / 5θ1 - 9Sin[θ]}, {θ, -3Pi, 3Pi}, {θ1, -10, 10}, ...]

Plot the solution for the initial conditions , :

Wolfram Language code: sol = NDSolve[{θ''[t] + 1 / 5 θ'[t] + 9 Sin[θ[t]] == 0, θ[0] == Pi / 2, θ'[0] == 0}, θ[t], {t, 0, 20}]; Plot[θ[t] /. sol, {t, 0, 20}, PlotRange -> All]

Stable system of Lorenz equations:

Wolfram Language code: σ = 10; b = 8 / 3; r = 15; eqns = {σ(−x[t] + y[t]) == x'[t], r x[t]−y[t]−x[t] z[t] == y'[t], −b z[t] + x[t] y[t] == z'[t]};
Wolfram Language code: DFixedPoints[eqns, {x, y, z}, t]
Wolfram Language code: DStabilityConditions[eqns, {x, y, z}, t]

Use StreamPlot3D to visualize the Lorenz attractors:

Wolfram Language code: StreamPlot3D[{σ(−x + y), r x−y−x z, −b z + x y}, {x, -10, 10}, {y, -10, 10}, {z, 0, 20}]

Unstable system of Lorenz equations:

Wolfram Language code: σ = 10; b = 8 / 3; r = 28; eqns = {σ(−x[t] + y[t]) == x'[t], r x[t]−y[t]−x[t] z[t] == y'[t], −b z[t] + x[t] y[t] == z'[t]};
Wolfram Language code: DFixedPoints[eqns, {x, y, z}, t]
Wolfram Language code: DStabilityConditions[eqns, {x, y, z}, t]

Solve the system and plot the solution:

Wolfram Language code: sol = NDSolve[{eqns, x[0] == 10, y[0] == 10, z[0] == 20}, {x[t], y[t], z[t]}, {t, 0, 200}];
Wolfram Language code: ParametricPlot3D[{x[t], y[t], z[t]} /. sol, {t, 0, 200}, PlotPoints -> 200, ColorFunction -> (Hue[#4]&)]

Biology  (3)

Stability analysis for the predator-prey model (Lotka–Volterra equations):

Wolfram Language code: DFixedPoints[{x'[t] == x[t](1 - 1 / 2y[t]), y'[t] == y[t](-3 / 4 + 1 / 4x[t])}, {x, y}, t]
Wolfram Language code: DStabilityConditions[{x'[t] == x[t](1 - 1 / 2y[t]), y'[t] == y[t](-3 / 4 + 1 / 4x[t])}, {x, y}, t]

Plot the phase portrait of the system:

Wolfram Language code: StreamPlot[{x(1 - 1 / 2y), y(-3 / 4 + 1 / 4x)}, {x, 0, 8}, {y, 0, 4}, Rule[...]]

Solve the system for the initial conditions , :

Wolfram Language code: sol = NDSolve[{x'[t] == x[t](1 - 1 / 2y[t]), y'[t] == y[t](-3 / 4 + 1 / 4x[t]), x[0] == 2, y[0] == 1}, {x[t], y[t]}, {t, 0, 30}]

Plot the solutions:

Wolfram Language code: Plot[Evaluate[{x[t], y[t]} /. sol], {t, 0, 30}, PlotLegends -> {"Prey", "Predator"}, PlotRange -> {0, 7}]

The Rosenzweig–MacArthur predator-prey model:

Wolfram Language code: eqns = {n'[t] == n[t](1 - n[t] / k) - an p[t]n[t] / (n[t] + h), p'[t] == p[t](ap n[t] / (n[t] + h) - m)};
Wolfram Language code: params = {an -> 1, ap -> 2, h -> 1, m -> 1, k -> 4};
Wolfram Language code: DFixedPoints[eqns /. params, {n, p}, t]
Wolfram Language code: StreamPlot[{n(1 - n / k) - an p n / (n + h), p(ap n / (n + h) - m)} /. params, {n, 0, 4}, {p, 0, 4}, Rule[...]]

The chemostat model represents biological systems in which microorganisms grow on abiotic resources:

Wolfram Language code: model = {x'[t] == (k x[t]y[t]/1 + y[t]) - x[t], y'[t] == -(x[t]y[t]/1 + y[t]) - y[t] + q};

Find the fixed points:

Wolfram Language code: DFixedPoints[model, {x, y}, t]//Simplify

Analyze the stability of the model for and :

Wolfram Language code: DStabilityConditions[model /. {k -> 2, q -> 2}, {x, y}, t]
Wolfram Language code: StreamPlot[{(k x y/1 + y) - x, -(x y/1 + y) - y + q} /. {k -> 2, q -> 2}, {x, 0, 4}, {y, 0, 3}, Rule[...]]

Chemistry  (1)

The Brusselator is a theoretical model for a type of autocatalytic reaction. The rate equations of the Brusselator model:

Wolfram Language code: sys = {x'[t] == x[t]^2y[t] - (b + 1)x[t] + a, y'[t] == -x[t]^2y[t] + b x[t]};

Find the fixed point of the system:

Wolfram Language code: DFixedPoints[sys, {x, y}, t]

The point is stable if b<1+a2:

Wolfram Language code: DStabilityConditions[sys /. {a -> 1, b -> 3 / 2}, {x, y}, t]
Wolfram Language code: StreamPlot[{x^2y - (b + 1)x + a, -x^2y + b x} /. {a -> 1, b -> 3 / 2}, {x, 0, 3}, {y, 0, 4}, Rule[...]]

The point is unstable if b>1+a2:

Wolfram Language code: DStabilityConditions[sys /. {a -> 1, b -> 5 / 2}, {x, y}, t]
Wolfram Language code: StreamPlot[{x^2y - (b + 1)x + a, -x^2y + b x} /. {a -> 1, b -> 5 / 2}, {x, 0, 3}, {y, 0, 4}, Rule[...]]

Control Systems  (2)

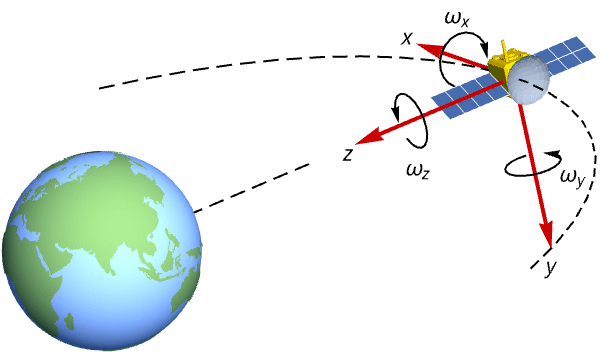

Analyze a satellite's attitude dynamics starting from Euler's equations of motion:

Euler’s equations with principal moments of inertia , , :

Wolfram Language code: eqns = Table[Subscript[j, i[[1]]] Subscript[ω, i[[1]]]'[t] - (Subscript[j, i[[2]]] - Subscript[j, i[[3]]])Subscript[ω, i[[2]]][t]Subscript[ω, i[[3]]][t] == Subscript[τ, i[[1]]][t], {i, {{x, y, z}, {y, z, x}, {z, x, y}}}] /. {Subscript[j, x] -> 300, Subscript[j, y] -> 320, Subscript[j, z] -> 270}

Find the fixed points of the equation for fixed values of , , :

Wolfram Language code: DFixedPoints[eqns /. {Subscript[τ, x][t] -> -27 / 400, Subscript[τ, y][t] -> 3 / 200, Subscript[τ, z][t] -> 1 / 50}, {Subscript[ω, x], Subscript[ω, y], Subscript[ω, z]}, t]

Choose the fixed point as an operating point:

Wolfram Language code: opPt = {Subscript[ω, x0] -> (1/30Sqrt[3]), Subscript[ω, y0] -> (3Sqrt[3]/100), Subscript[ω, z0] -> (3Sqrt[3]/200), Subscript[τ, x0] -> -(27/400), Subscript[τ, y0] -> (3/200), Subscript[τ, z0] -> (1/50)};

Construct a state-space model:

Wolfram Language code: ssm = StateSpaceModel[eqns, {{Subscript[ω, x][t], Subscript[ω, x0]}, {Subscript[ω, y][t], Subscript[ω, y0]}, {Subscript[ω, z][t], Subscript[ω, z0]}}, {{Subscript[τ, x][t], Subscript[τ, x0]}, {Subscript[τ, y][t], Subscript[τ, y0]}, {Subscript[τ, z][t], Subscript[τ, z0]}}, {Subscript[ω, x][t], Subscript[ω, y][t], Subscript[ω, z][t]}, t, SystemsModelLabels -> {{Subscript[τ, x], Subscript[τ, y], Subscript[τ, z]}, {Subscript[ω, x], Subscript[ω, y], Subscript[ω, z]}, {Subscript[ω, x], Subscript[ω, y], Subscript[ω, z]}}] /. opPt

The satellite’s attitude is unregulated if disturbed:

Wolfram Language code: OutputResponse[{ssm, {0.2, -0.1, 0.35}}, {0, 0, 0}, {t, 0, 3000}]; Plot[%, {t, 0, 3000}, PlotRange -> All, PlotLegends -> {Subscript[ω, x], Subscript[ω, y], Subscript[ω, z]}]

Verify the controllability of the model:

Wolfram Language code: ControllableModelQ[ssm]

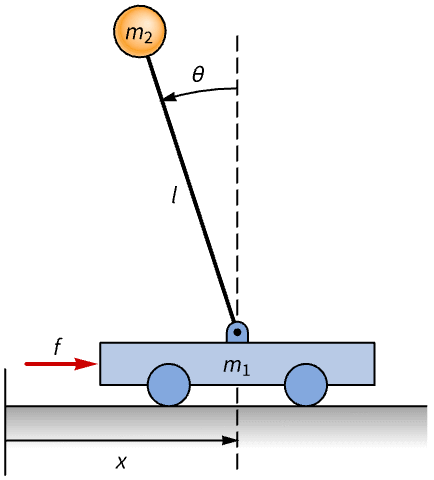

Study an inverted pendulum using the Lagrangian:

The position of :

Wolfram Language code: Subscript[r, p] = Composition[TranslationTransform[{x[t], 0, 0}], RotationTransform[θ[t], {0, 0, 1}]][{0, 1, 0}]

Its velocity:

Wolfram Language code: Subscript[v, p] = D[Subscript[r, p], t]

The kinetic energy of the cart and pendulum:

Wolfram Language code: 𝒦 = (1/2)Subscript[m, 1] x'[t]^2 + (1/2)Subscript[m, 2]Subscript[v, p].Subscript[v, p]

The potential energy of the pendulum:

Wolfram Language code: 𝒰 = Subscript[m, 2]g Subscript[r, p][[2]]

The Lagrangian:

Wolfram Language code: ℒ = 𝒦 - 𝒰

The generalized forces:

Wolfram Language code: {Subscript[f, x], Subscript[f, θ]} = D[f[t] δx - Subscript[b, x]x'[t]δx - Subscript[b, θ]θ'[t]δθ, {{δx, δθ}}]

The equations of motion:

Wolfram Language code: eqns = Table[Subscript[∂, t]D[ℒ, q'[t]] - D[ℒ, q[t]] == Subscript[f, q], {q, {x, θ}}]//Simplify

A state-space model:

Wolfram Language code: ssm = StateSpaceModel[eqns, {x[t], x'[t], θ[t], θ'[t]}, f[t], {x[t], θ[t]}, t, SystemsModelLabels -> {f, {x, θ}, {x, Derivative[1][x], θ, Derivative[1][θ]}}]

The non-positive eigenvalues make it an unstable system:

Wolfram Language code: Eigenvalues[First[Normal[ssm /. {Subscript[m, 1] -> 1 / 2, Subscript[m, 2] -> 1 / 10, l -> 3 / 10, g -> 10, Subscript[b, x] -> 15 / 100, Subscript[b, θ] -> 1 / 100}]]]//N
Wolfram Language code: DFixedPoints[eqns /. {Subscript[m, 1] -> 1 / 2, Subscript[m, 2] -> 1 / 10, l -> 3 / 10, g -> 10, Subscript[b, x] -> 15 / 100, Subscript[b, θ] -> 1 / 100, f[t] -> 0}, {x, θ}, t]
Wolfram Language code: DStabilityConditions[eqns /. {Subscript[m, 1] -> 1 / 2, Subscript[m, 2] -> 1 / 10, l -> 3 / 10, g -> 10, Subscript[b, x] -> 15 / 100, Subscript[b, θ] -> 1 / 100, f[t] -> 0}, {x, θ}, t, {{1, 0, 2Pi, 0}, {1, 0, 3Pi, 0}}]

Properties & Relations  (8)

DFixedPoints returns fixed points for differential equations:

Wolfram Language code: DFixedPoints[y'[t] == a y[t], y, t]
Wolfram Language code: DFixedPoints[y'[t] == (1/2)y[t] + 1, y, t]

Use DFixedPoints to find all fixed points of a differential equation:

Wolfram Language code: DFixedPoints[y'[t] == 2 y[t](1 - y[t]), y[t], t]

Use DStabilityConditions to analyze the stability at specific fixed points:

Wolfram Language code: DStabilityConditions[y'[t] == 2 y[t](1 - y[t]), y[t], t, {{0}}]
Wolfram Language code: DStabilityConditions[y'[t] == 2 y[t](1 - y[t]), y[t], t, {{1}}]

Use DFixedPoints to find all fixed points of a nonlinear ODE:

Wolfram Language code: points = DFixedPoints[x'[t] == x[t]^2 + 3x[t], x, t]

Use Solve to find the fixed points:

Wolfram Language code: Solve[x^2 + 3x == 0, x]

The fixed points for the n^(th)-order differential equation are n-dimensional vectors:

Wolfram Language code: DFixedPoints[y''[t] + y'[t] + 3 y[t] == 5, y, t]

The fixed points for the system of n first-order differential equations are n-dimensional vectors:

Wolfram Language code: DFixedPoints[{y'[t] + z[t] == 3, y[t] + 2 z'[t] == 1}, {y[t], z[t]}, t]

Find the fixed points of a system of two ODEs:

Wolfram Language code: DFixedPoints[{x'[t] == -x[t] - y[t] - 1, y'[t] == 2x[t] - y[t] + 5}, {x, y}, t]

Use DSolveValue to solve the system using the fixed point as initial condition:

Wolfram Language code: sol = DSolveValue[{x'[t] == -x[t] - y[t] - 1, y'[t] == 2x[t] - y[t] + 5, x[0] == -2, y[0] == 1}, {x[t], y[t]}, t]//Simplify

Use DSolveValue to solve the system for given initial conditions:

Wolfram Language code: sol = DSolveValue[{x'[t] == -x[t] - y[t] - 1, y'[t] == 2x[t] - y[t] + 5, x[0] == 3, y[0] == -2}, {x[t], y[t]}, t]//Simplify

Plot the solution:

Wolfram Language code: Plot[Evaluate[sol], {t, 0, 20}]

Analyze the fixed points of a nonlinear ODE:

Wolfram Language code: DFixedPoints[x'[t] == (1/2)x[t](1 - x[t]), x, t]

Solve the ODE using NDSolve:

Wolfram Language code: sol = NDSolve[{x'[t] == (1/2)x[t](1 - x[t]), x[0] == 0.5}, x[t], {t, 0, 20}]

Plot the solution:

Wolfram Language code: Plot[x[t] /. sol, {t, 0, 20}, PlotRange -> All]

Find the fixed points for the system of two nonlinear ODEs:

Wolfram Language code: points = DFixedPoints[{x'[t] == x[t](2−x[t]−y[t]), y'[t] == −x[t] + 3y[t]−2x[t] y[t]}, {x, y}, t]

Calculate the Jacobian matrix of the system:

Wolfram Language code: (jacobian = D[{x(2−x−y), −x + 3y−2x y}, {{x, y}}])//MatrixForm

Calculate the eigenvalues of the Jacobian matrix for each fixed point:

Wolfram Language code: eig1 = Eigenvalues[jacobian /. Thread[{x, y} -> points[[1]]]]
Wolfram Language code: eig2 = Eigenvalues[jacobian /. Thread[{x, y} -> points[[2]]]]
Wolfram Language code: eig3 = Eigenvalues[jacobian /. Thread[{x, y} -> points[[3]]]]

The system is locally stable if all of the eigenvalues have negative real parts:

Wolfram Language code: Re[#] < 0& /@ eig1
Wolfram Language code: Re[#] < 0& /@ eig2
Wolfram Language code: Re[#] < 0& /@ eig3

Check the stability of the points using DStabilityConditions:

Wolfram Language code: DStabilityConditions[{x'[t] == x[t](2−x[t]−y[t]), y'[t] == −x[t] + 3y[t]−2x[t] y[t]}, {x, y}, t]
Wolfram Research (2024), DFixedPoints, Wolfram Language function, https://reference.wolfram.com/language/ref/DFixedPoints.html.

Text

Wolfram Research (2024), DFixedPoints, Wolfram Language function, https://reference.wolfram.com/language/ref/DFixedPoints.html.

CMS

Wolfram Language. 2024. "DFixedPoints." Wolfram Language & System Documentation Center. Wolfram Research. https://reference.wolfram.com/language/ref/DFixedPoints.html.

APA

Wolfram Language. (2024). DFixedPoints. Wolfram Language & System Documentation Center. Retrieved from https://reference.wolfram.com/language/ref/DFixedPoints.html

BibTeX

@misc{reference.wolfram_2026_dfixedpoints, author="Wolfram Research", title="{DFixedPoints}", year="2024", howpublished="\url{https://reference.wolfram.com/language/ref/DFixedPoints.html}", note=[Accessed: 13-June-2026]}

BibLaTeX

@online{reference.wolfram_2026_dfixedpoints, organization={Wolfram Research}, title={DFixedPoints}, year={2024}, url={https://reference.wolfram.com/language/ref/DFixedPoints.html}, note=[Accessed: 13-June-2026]}
