Direction

Direction

is an option for Limit and related functions that specifies the direction in which the limit is taken.

Details

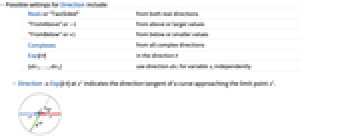

  • Possible settings for Direction include:
  • Reals or "TwoSided"from both real directions
    "FromAbove" or -1from above or larger values
    "FromBelow" or +1from below or smaller values
    Complexesfrom all complex directions
    Exp[ θ]in the direction
    {dir1,…,dirn}use direction diri for variable xi independently
  • DirectionExp[ θ] at x* indicates the direction tangent of a curve approaching the limit point x*.

Examples

open all close all

Basic Examples  (1)

Limit from below:

Wolfram Language code: Limit[1 / x, x -> 0, Direction -> "FromBelow"]

Limit from above:

Wolfram Language code: Limit[1 / x, x -> 0, Direction -> "FromAbove"]

The two-sided limit does not exist:

Wolfram Language code: Limit[1 / x, x -> 0, Direction -> "TwoSided"]
Wolfram Language code: Plot[1 / x, {x, -1, 1}]

Scope  (5)

One-sided limits at piecewise discontinuities:

Wolfram Language code: Limit[RealAbs[x] / x, x -> 0, Direction -> "FromAbove"]
Wolfram Language code: Limit[RealAbs[x] / x, x -> 0, Direction -> "FromBelow"]

The default direction is two sided:

Wolfram Language code: Limit[RealAbs[x] / x, x -> 0]
Wolfram Language code: Plot[RealAbs[x] / x, {x, -1, 1}]

One-sided max limits:

Wolfram Language code: MaxLimit[UnitStep[x]Sin[(1/x)] + (1/2), x -> 0, Direction -> "FromAbove"]
Wolfram Language code: MaxLimit[UnitStep[x]Sin[(1/x)] + (1/2), x -> 0, Direction -> "FromBelow"]

The default direction Reals gives the larger of the two one-sided max limits:

Wolfram Language code: MaxLimit[UnitStep[x]Sin[(1/x)] + (1/2), x -> 0]
Wolfram Language code: MaxLimit[UnitStep[x]Sin[(1/x)] + (1/2), x -> 0, Direction -> Reals]

Visualize the function:

Wolfram Language code: Plot[UnitStep[x]Sin[(1/x)] + (1/2), {x, -.1, .1}]

Limits at a simple pole:

Wolfram Language code: Limit[Tan[x], x -> π / 2, Direction -> "FromBelow"]
Wolfram Language code: Limit[Tan[x], x -> π / 2, Direction -> "FromAbove"]
Wolfram Language code: Limit[Tan[x], x -> π / 2, Direction -> ℝ]
Wolfram Language code: Limit[Tan[x], x -> π / 2, Direction -> ℂ]

Limits at a branch cut:

Wolfram Language code: Limit[Sqrt[x], x -> -1, Direction -> Reals]
Wolfram Language code: Limit[Sqrt[x], x -> -1, Direction -> -I]
Wolfram Language code: Limit[Sqrt[x], x -> -1, Direction -> +I]
Wolfram Language code: Limit[Sqrt[x], x -> -1, Direction -> Complexes]

Compute the bivariate limit approach from different quadrants:

Wolfram Language code: f[x_, y_] := (x y/x + y)(2 + RealSign[ x y] + RealSign[y])

Approaching the origin from the first quadrant:

Wolfram Language code: Limit[f[x, y], {x, y} -> {0, 0}, Direction -> "FromAbove"]

Equivalently:

Wolfram Language code: Limit[f[x, y], {x, y} -> {0, 0}, Direction -> {"FromAbove", "FromAbove"}]

Approaching the origin from the second quadrant:

Wolfram Language code: Limit[f[x, y], {x, y} -> {0, 0}, Direction -> {"FromBelow", "FromAbove"}]

Approaching the origin from the left half-plane:

Wolfram Language code: Limit[f[x, y], {x, y} -> {0, 0}, Direction -> {"FromBelow", Reals}]

Approaching the origin from the bottom half-plane:

Wolfram Language code: Limit[f[x, y], {x, y} -> {0, 0}, Direction -> {Reals, "FromBelow"}]

Visualize the function:

Wolfram Language code: Row@{Plot3D[f[x, y], {x, y}∈Disk[], Exclusions -> {{x == -y , x <= 0}}, ClippingStyle -> None, ImageSize -> 200], DensityPlot[f[x, y], {x, -1, 1}, {y, -1, 1}, Exclusions -> {{x == -y , x <= 0}}, ClippingStyle -> Automatic, ImageSize -> Small]}

Properties & Relations  (4)

The settings "FromBelow" and 1 are equivalent:

Wolfram Language code: MinLimit[Cos[x] / x, x -> 0, Direction -> "FromBelow"]
Wolfram Language code: MinLimit[Cos[x] / x, x -> 0, Direction -> 1]

The settings "FromAbove" and -1 are equivalent:

Wolfram Language code: MinLimit[Cos[x] / x, x -> 0, Direction -> "FromAbove"]
Wolfram Language code: MinLimit[Cos[x] / x, x -> 0, Direction -> -1]

The settings "TwoSided" and Reals are equivalent:

Wolfram Language code: MinLimit[Cos[x] / x, x -> 0, Direction -> "TwoSided"]
Wolfram Language code: MinLimit[Cos[x] / x, x -> 0, Direction -> ℝ]

Direction places conditions on the limit variable:

Wolfram Language code: Limit[Tan[x], x -> π / 2 + n π, Direction -> 1, Assumptions -> n∈Integers]

Assumptions applies to parameters in the limit expression:

Wolfram Language code: Limit[Tan[x], x -> π / 2 + n π, Direction -> -1, Assumptions -> n∈Integers]
Wolfram Language code: Plot[Tan[x], {x, -2π, 2π}, ExclusionsStyle -> {{Dashed, Red}}]
