EdgeContract

EdgeContract[g,e]

contracts the edge e of the graph g.

EdgeContract[g,{e1,e2,…}]

contracts a collection of edges e1,e2,….

EdgeContract[{vw,…},…]

uses rules vw to specify the graph g.

Details and Options

  • EdgeContract is also known as edge collapse.

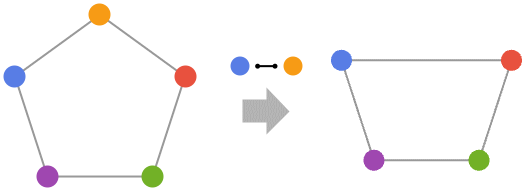

  • EdgeContract[g,e] creates a new graph from g by deleting the edge e and merging vertices of e.
  • EdgeContract works with undirected graphs, directed graphs, multigraphs, and mixed graphs.

Examples

open all close all

Basic Examples  (1)

Contract edges of a graph:

Wolfram Language code: EdgeContract[[image], 12]

Scope  (7)

EdgeContract works with undirected graphs:

Wolfram Language code: EdgeContract[[image], 12]

Directed graphs:

Wolfram Language code: EdgeContract[[image], 21]

Multigraphs:

Wolfram Language code: EdgeContract[[image], 12]

Mixed graphs:

Wolfram Language code: EdgeContract[[image], 21]

Use rules to specify the graph:

Wolfram Language code: EdgeContract[{1 -> 3, 2 -> 1, 3 -> 6, 4 -> 6, 1 -> 5, 5 -> 4, 6 -> 1}, 21]

Use patterns to specify a set of edges:

Wolfram Language code: EdgeContract[[image], 3_]

EdgeContract works with large graphs:

Wolfram Language code: GridGraph[{10, 10, 10, 10}];
Wolfram Language code: VertexCount[EdgeContract[%, {12}]]//Timing

Properties & Relations  (1)

EdgeContract can be computed using VertexContract:

Wolfram Language code: g = WheelGraph[7];
Wolfram Language code: EdgeContract[g, {12, 34}]
Wolfram Language code: VertexContract[g, Flatten[List@@@{12, 34}]]
