EventHandler

EventHandler[expr,{"event1":>action1,"event2":>action2,…}]

displays as expr, evaluating actioni whenever "eventi" occurs in connection with expr.

Details and Options

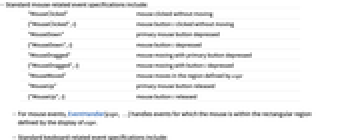

  • Standard mouse-related event specifications include:
  • "MouseClicked"mouse clicked without moving
    {"MouseClicked",i}mouse button i clicked without moving
    "MouseDown"primary mouse button depressed
    {"MouseDown",i}mouse button i depressed
    "MouseDragged"mouse moving with primary button depressed
    {"MouseDragged",i}mouse moving with button i depressed
    "MouseMoved"mouse moves in the region defined by expr
    "MouseUp"primary mouse button released
    {"MouseUp",i}mouse button i released
  • For mouse events, EventHandler[expr, …] handles events for which the mouse is within the rectangular region defined by the display of expr.

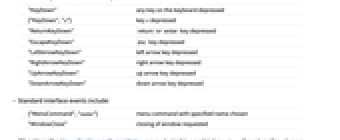

  • Standard keyboard-related event specifications include:
  • "KeyDown"any key on the keyboard depressed
    {"KeyDown","x"}key x depressed
    "ReturnKeyDown" or key depressed
    "EscapeKeyDown" key depressed
    "LeftArrowKeyDown"left arrow key depressed
    "RightArrowKeyDown"right arrow key depressed
    "UpArrowKeyDown"up arrow key depressed
    "DownArrowKeyDown"down arrow key depressed
  • Standard interface events include:
  • {"MenuCommand","name"}menu command with specified name chosen
    "WindowClose"closing of window requested
  • If functions like MousePosition or CurrentValue are evaluated in a particular actioni, the values they give are those associated with the event that triggered that actioni.
  • When EventHandler expressions are nested, events are by default shared by all the expressions, with the innermost expression operating first on a particular event.
  • The following options can be given:
  • Method "Preemptive"the evaluation method to use
    PassEventsDown Automaticwhether to pass events to inner event handlers
    PassEventsUp Truewhether to pass events to outer event handlers
  • Typical possible settings for the Method option include "Preemptive" and "Queued".
  • With the default setting PassEventsDown->Automatic, events handled by an EventHandler are not also passed to built-in event handlers in the Wolfram System front end.

Examples

open all close all

Basic Examples  (2)

Create text that turns red when clicked:

Wolfram Language code: DynamicModule[{col = Green}, EventHandler[Style["text", FontColor -> Dynamic[col]], {"MouseClicked" :> (col = Red)}]]

Create text that toggles between red and green when clicked repeatedly:

Wolfram Language code: DynamicModule[{col = Green}, EventHandler[Style["text", FontColor -> Dynamic[col]], {"MouseClicked" :> (col = col /. {Red -> Green, Green -> Red})}]]

Scope  (1)

Create a graphic that changes color when clicked:

Wolfram Language code: DynamicModule[{col = Green}, EventHandler[Dynamic[Graphics[{col, Disk[]}, ImageSize -> Tiny]], {"MouseClicked" :> (col = col /. {Red -> Green, Green -> Red})}]]

Create a graphic that changes color only while the mouse button is pressed:

Wolfram Language code: DynamicModule[{col = Green}, EventHandler[Dynamic[Graphics[{col, Disk[]}, ImageSize -> Tiny]], {"MouseDown" :> (col = col /. {Red -> Green, Green -> Red}), "MouseUp" :> (col = col /. {Red -> Green, Green -> Red})}]]

Options  (5)

Method  (1)

By default, event handlers are evaluated on a preemptive link and time out after 5 seconds:

Wolfram Language code: DynamicModule[{a = "start"}, {EventHandler[Panel["does time out"], "MouseClicked" :> (Pause[6];a = "end")], Dynamic[a]}]

Use Method->"Queued" to evaluate button functions on the main link, which never times out:

Wolfram Language code: DynamicModule[{a = "start"}, {EventHandler[Panel["does not time out"], "MouseClicked" :> (Pause[6];a = "end"), Method -> "Queued"], Dynamic[a]}]

PassEventsDown  (2)

Allow events to pass down to inner event handlers, changing the color as well as position:

Wolfram Language code: DynamicModule[{p = {0, 0}, c = Green}, EventHandler[EventHandler[Framed@Dynamic[Graphics[{c, Disk[p, 0.2]}, PlotRange -> 2]], {"MouseDown" :> (c = c /. {Red -> Green, Green -> Red})}], {"MouseDown" :> (p = MousePosition["Graphics"])}, PassEventsDown -> True]]

Do not pass mouse events to the inner event handler:

Wolfram Language code: DynamicModule[{p = {0, 0}, c = Green}, EventHandler[EventHandler[Framed@Dynamic[Graphics[{c, Disk[p, 0.2]}, PlotRange -> 2]], {"MouseDown" :> (c = c /. {Red -> Green, Green -> Red})}], {"MouseDown" :> (p = MousePosition["Graphics"])}, PassEventsDown -> False]]

PassEventsUp  (2)

By default, nested EventHandler actions are triggered upon the specified action:

Wolfram Language code: DynamicModule[{i = 1, j = 1}, Style[EventHandler[Framed@{Dynamic[i], EventHandler[Framed[Dynamic[j]], "MouseDown" :> ++j]}, "MouseDown" :> ++i], 36]]

By disabling PassEventsUp, prevent the outer EventHandler action from being triggered:

Wolfram Language code: DynamicModule[{i = 1, j = 1}, Style[EventHandler[Framed@{Dynamic[i], EventHandler[Framed[Dynamic[j]], "MouseDown" :> ++j, PassEventsUp -> False]}, "MouseDown" :> ++i], 36]]

Allow the outer EventHandler action when the key is pressed:

Wolfram Language code: DynamicModule[{i = 1, j = 1}, Style[EventHandler[Framed@{Dynamic[i], EventHandler[Framed[Dynamic[j]], "MouseDown" :> ++j, PassEventsUp :> CurrentValue["ShiftKey"]]}, "MouseDown" :> ++i], 36]]

Applications  (2)

Automatically fit a line to a set of points:

Wolfram Language code: lineFit[points_, {{xmin_, xmax_}, {ymin_, ymax_}}] := Module[{x, lf}, lf = Function@@{{x}, Fit[points, {x, 1}, {x}]}; Line[{{xmin, lf[xmin]}, {xmax, lf[xmax]}}]];
Wolfram Language code: DynamicModule[{p = {}, l = {}}, EventHandler[Dynamic@Graphics[{Point[p], l}, PlotRange -> 1, Frame -> True], "MouseDown" :> (AppendTo[p, MousePosition["Graphics"]]; If[Length[p] ≥ 2, l = lineFit[p, {{-1, 1}, {-1, 1}}]])]]

Piecewise interpolation through a set of points:

Wolfram Language code: interpolationCurve[p_, n_] := Module[{f = Interpolation[p, InterpolationOrder -> n ]}, First@Plot[Evaluate@f[x], {x, Min[p[[All, 1]]], Max[p[[All, 1]]]}]];
Wolfram Language code: DynamicModule[{n = 2, p = {}, c = {}}, EventHandler[Dynamic@Graphics[{Point[p], c}, PlotRange -> 1, Frame -> True], "MouseDown" :> (p = Union[Sort@Append[p, MousePosition["Graphics"]], SameTest -> (First[#1] == First[#2]&)]; If[Length[p] ≥ n + 1, c = interpolationCurve[p, n]])]]

Properties & Relations  (1)

EventHandler can be used with MousePosition:

Wolfram Language code: DynamicModule[{pos = {0, 0}}, EventHandler[Framed@Graphics[{Disk[Dynamic[pos], 0.2]}, PlotRange -> 2], {"MouseDown" :> (pos = MousePosition["Graphics"])}]]

Neat Examples  (4)

Click to add points to a BSplineCurve:

Wolfram Language code: DynamicModule[{pts = {}, down = False}, EventHandler[ Graphics[{Thickness[.03], Red, BSplineCurve[Dynamic[pts]]}, PlotRange -> 1, Frame -> True, FrameTicks -> False], {"MouseDown" :> (AppendTo[pts, MousePosition["Graphics"]]; down = True), "MouseMoved" :> If[down, AppendTo[pts, MousePosition["Graphics"]]], "MouseUp" :> (down = False)}]]

Clicking the cone will reflect it across the axis:

Wolfram Language code: Graphics3D[DynamicModule[{b = False}, EventHandler[Cone[Dynamic[{{4, 4, 0}, {4, 4, If[b, -2, 2]}}]], {"MouseDown" :> (b = !b)}]], PlotRange -> {Automatic, Automatic, {-2, 2}}]

Highlight prime numbers in a list when mousing over the list:

Wolfram Language code: DynamicModule[{f = Identity}, (EventHandler[Dynamic[Row[f[#1]& /@ Range[15], ","]], {"MouseEntered" :> (f = Function[{y}, If[PrimeQ[y], Style[y, Red], y]]), "MouseExited" :> (f = Identity)}])]

Display dynamic graphics and beep simultaneously:

Wolfram Language code: DynamicModule[{obj = {}, x}, EventHandler[ EventHandler[Dynamic[If[x < 1, x = x + .01];Graphics[{obj, Orange, Disk[{0, 0}, .2]}, PlotRange -> 1]], {"MouseClicked" :> (obj = {Dynamic[Table[{Circle[{0, 0}, n Dynamic[x]]}, {n, 3}]]};Beep[])}], {"MouseDown" :> (x = 0)}, PassEventsDown -> False]]
