GeoGridLines

GeoGridLines

is an option for GeoGraphics that specifies what parallels and meridians to show.

Details

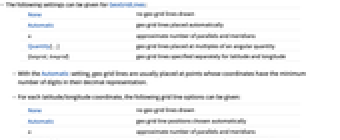

  • The following settings can be given for GeoGridLines:
  • Noneno geo grid lines drawn
    Automaticgeo grid lines placed automatically
    napproximate number of parallels and meridians
    Quantity[…]geo grid lines placed at multiples of an angular quantity
    {latgrid,longrid}geo grid lines specified separately for latitude and longitude
  • With the Automatic setting, geo grid lines are usually placed at points whose coordinates have the minimum number of digits in their decimal representation.
  • For each latitude/longitude coordinate, the following grid line options can be given:
  • Noneno geo grid lines drawn
    Automaticgeo grid line positions chosen automatically
    napproximate number of parallels and meridians

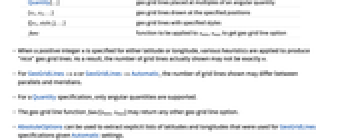

    Quantity[…]geo grid lines placed at multiples of an angular quantity
    {x1,x2,…}geo grid lines drawn at the specified positions
    {{x1,style1},…}geo grid lines with specified styles
    funcfunction to be applied to xmin, xmax to get geo grid line option
  • When a positive integer n is specified for either latitude or longitude, various heuristics are applied to produce "nice" geo grid lines. As a result, the number of grid lines actually shown may not be exactly n.
  • For GeoGridLines->n or GeoGridLines->Automatic, the number of grid lines shown may differ between parallels and meridians.
  • For a Quantity specification, only angular quantities are supported.
  • The geo grid line function func[xmin,xmax] may return any other geo grid line option.
  • AbsoluteOptions can be used to extract explicit lists of latitudes and longitudes that were used for GeoGridLines specifications given Automatic settings.
  • Use GeoGridLinesStyle to set styles for geo grid lines.

Examples

open all close all

Basic Examples  (4)

Overlay a map with geo grid lines using default styling:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> Automatic, GeoBackground -> "Plain"]

Draw geo grid lines at specific lines of latitude and longitude:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> {Range[0, 50, 5], Range[-150, -40, 10]}, GeoGridLinesStyle -> Yellow]

Specify geo grid styles:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> Automatic, GeoGridLinesStyle -> Directive[Thick, Dashed, Orange]]

Show latitude and longitude lines on Mars, separated by 15 degrees:

Wolfram Language code: GeoGraphics[GeoModel -> "Mars", GeoGridLines -> Quantity[15, "AngularDegrees"], GeoProjection -> "WinkelTripel"]

Scope  (9)

GeoGridLines Positions  (5)

Place the geo grid lines automatically:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> Automatic]
Wolfram Language code: GeoGraphics[{Polygon[EntityClass["Country", "Europe"]]}, GeoGridLines -> Automatic]
Wolfram Language code: GeoGraphics[{GeoStyling[LightRed], Polygon[Entity["Country", "China"]]}, GeoBackground -> GeoStyling["ReliefMap"], GeoGridLines -> Automatic]

Draw geo grid lines at specific lines of latitude:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> {Range[20, 50, 5], None}, GeoGridLinesStyle -> Gray]

Draw geo grid lines at specific lines of longitude:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> {None, Range[-150, -40, 10]}, GeoGridLinesStyle -> Magenta]

Draw geo grid lines at specific lines of latitude and longitude:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> {Range[20, 50, 5], Range[-150, -40, 10]}, GeoGridLinesStyle -> Yellow]

Specify the target number of geo grid lines:

Wolfram Language code: GeoGraphics[Entity["Country", "UnitedStates"], GeoGridLines -> 20, GeoGridLinesStyle -> Orange]

Specify different numbers of latitude and longitude geo grid lines:

Wolfram Language code: GeoGraphics[Entity["Country", "UnitedStates"], GeoGridLines -> {4, 20}, GeoGridLinesStyle -> Directive[Thin, Orange]]

Draw geo grid lines as multiples of a given angle:

Wolfram Language code: GeoGraphics[Entity["Country", "UnitedStates"], GeoGridLines -> Quantity[5, "AngularDegrees"], GeoGridLinesStyle -> Orange]

GeoGridLines Styling  (4)

Specify the style of each geo grid line:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> {{{20, Red}, {30, Orange}, {40, Yellow}, {50, Green}, {60, Blue}}, None}, GeoGridLinesStyle -> Black]
Wolfram Language code: With[{p = CountryData["UnitedStates", "CenterCoordinates"]}, GeoGraphics[Entity["Country", "UnitedStates"], GeoGridLines -> {{{p[[1]], Red}}, {{p[[2]], Blue}}}, GeoBackground -> "StreetMapNoLabels", GeoGridLinesStyle -> Black] ]

Specify overall geo grid line style using GeoGridLinesStyle:

Wolfram Language code: GeoGraphics[Polygon[EntityClass["Country", "SouthAmerica"]], GeoGridLines -> Automatic, GeoGridLinesStyle -> {Blue, Orange}]

Individually styled geo grid lines can be used with GeoGridLinesStyle and have higher priority:

Wolfram Language code: GeoGraphics[Polygon[EntityClass["Country", "SouthAmerica"]], GeoGridLines -> {{-60, {-50, Directive[Thick, Yellow]}, -40, -30, -20, -10, 0, 10, 20, 30}, {-90, -80, -70, {-60, Directive[Thick, Green]}, -50, -40, -30, -20}}, GeoGridLinesStyle -> {Blue, Orange}]

Specify a grid function applied to xmin and xmax values of each direction:

Wolfram Language code: grids[min_, max_] := Table[If[EvenQ[i], {i, Red}, {i, Blue}], {i, Ceiling[min], Floor[max], 1}]
Wolfram Language code: GeoGraphics[Entity["Country", "Australia"], GeoGridLines -> grids]

Applications  (2)

Plot a solid line at multiples of 30° and a dashed line at multiples of 10°:

Wolfram Language code: styles[m_] := Table[{c, If[Mod[c, 30] == 0, Directive[Thick, Black], Dashed]}, {c, -m, m, 10}];
Wolfram Language code: GeoGraphics[GeoGridLines -> {styles[90], styles[180]}, GeoRange -> "World"]

Show geo grid lines on the Bonne projection:

Wolfram Language code: GeoGraphics[GeoGridLines -> Automatic, GeoProjection -> "Bonne", GeoRange -> "World"]
Wolfram Language code: AbsoluteOptions[%, GeoGridLines]

Properties & Relations  (2)

Geo grid lines are always drawn above the graphics:

Wolfram Language code: GeoGraphics[EntityClass["Country", "Europe"], GeoGridLines -> Automatic, GeoBackground -> GeoStyling["ReliefMap"], GeoGridLinesStyle -> Blue]
Wolfram Language code: GeoGraphics[EntityClass["Country", "Europe"], GeoGridLines -> Automatic, GeoGridLinesStyle -> Orange]

Use AbsoluteOptions to get the grid lines used with an Automatic setting:

Wolfram Language code: GeoGraphics[GeoRange -> "World", GeoGridLines -> Automatic]
Wolfram Language code: AbsoluteOptions[%, GeoGridLines]

Possible Issues  (4)

Specifying GeoGridLinesStyle in addition to a GeoGridLines style may give a different result:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]]}, GeoGridLines -> {{{20, Red}, {30, Orange}, {40, Yellow}, {50, Green}, {60, Blue}}, None}, GeoGridLinesStyle -> #]& /@ {Opacity[1], Automatic}

Geo grid lines may be specified as an angular quantity:

Wolfram Language code: GeoGraphics[Entity["Country", "UnitedStates"], GeoGridLines -> Quantity[5, "AngularDegrees"]]

Geo grid lines may not be specified as a distance quantity:

Wolfram Language code: GeoGraphics[Entity["Country", "UnitedStates"], GeoGridLines -> Quantity[500, "Kilometer"]]

Integer arguments and option settings for several geo functions are interpreted as distances (or radii) in meters:

Wolfram Language code: With[{city = Entity["City", {"Rugby", "NorthDakota", "UnitedStates"}]}, GeoGraphics[{GeoDisk[city, 4.4*^6], Red, PointSize[Large], Point[city]}, GeoRange -> 4.5*^6, GeoGridLines -> Automatic]]

However, an integer geo grid line specification indicates an approximate number of "nice" grid lines to display:

Wolfram Language code: GeoGraphics[Entity["City", {"Rugby", "NorthDakota", "UnitedStates"}], GeoGridLines -> 5, GeoGridLinesStyle -> Pink]

Use GeoPath to interactively display geo coordinates of geo lines:

Wolfram Language code: GeoGraphics[{Table[Tooltip[GeoPath[{"Meridian", lon}], Row[{"lon = ", lon, Degree}]], {lon, -180, 180, 30}], Table[Tooltip[GeoPath[{"Parallel", lat}], Row[{"lat = ", lat, Degree}]], {lat, -90, 90, 15}]}, GeoProjection -> "Bonne"]

Neat Examples  (3)

A random collection of geo grid lines:

Wolfram Language code: GeoGraphics[GeoRange -> "World", GeoGridLines -> {Table[{RandomReal[{-90, 90}], Hue[RandomReal[]]}, {30}], Table[{RandomReal[{-180, 180}], Hue[RandomReal[]]}, {30}]}]

Use geo grid lines with 1° graticule over Australia:

Wolfram Language code: With[{region = Entity["Country", "Australia"]}, With[{ranges = Append[#, 1]& /@ Round[GeoBounds[region]]}, GeoGraphics[{Polygon[region]}, GeoGridLines -> Range@@@ranges, GeoGridLinesStyle -> Directive[Opacity[.5], Yellow], GeoBackground -> GeoStyling["ReliefMap"]] ] ]

Plot geo grid lines at positions of the largest US cities:

Wolfram Language code: Length[large = CityData[{Large, "UnitedStates"}]]
Wolfram Language code: largest = TakeLargest[EntityValue[large, "Population", "EntityAssociation"], 15]

Compute their coordinates:

Wolfram Language code: pos = CityData[#, "Coordinates"]& /@ Keys[largest]; points = Tooltip[Point[#1], #2]&@@@Transpose[{GeoPosition /@ pos, Keys@largest}];

Display a map of the US with lines of latitude and longitude passing through the largest cities:

Wolfram Language code: GeoGraphics[{Polygon[Entity["Country", "UnitedStates"]], PointSize[Medium], points}, GeoGridLines -> Transpose[pos], GeoBackground -> "ReliefMap", GeoGridLinesStyle -> GrayLevel[0.2, 0.5]]
