GridLines

GridLines

is an option for two-dimensional graphics functions that specifies grid lines.

Details

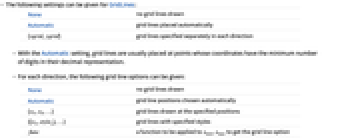

  • The following settings can be given for GridLines:
  • Noneno grid lines drawn
    Automaticgrid lines placed automatically
    {xgrid,ygrid}grid lines specified separately in each direction
  • With the Automatic setting, grid lines are usually placed at points whose coordinates have the minimum number of digits in their decimal representation.
  • For each direction, the following grid line options can be given:
  • Noneno grid lines drawn
    Automaticgrid line positions chosen automatically
    {x1,x2,…}grid lines drawn at the specified positions
    {{x1,style1},…}grid lines with specified styles
    funca function to be applied to xmin, xmax to get the grid line option
  • Grid line styles can involve any graphics directives, such as RGBColor and Thickness.
  • The grid line function func[xmin,xmax] may return any other grid line option.
  • AbsoluteOptions gives the explicit form of GridLines specifications when Automatic settings are used.
  • GridLinesStyle gives default styles to use for grid lines.

Examples

open all close all

Basic Examples  (4)

Put grids across a 2D graphic:

Wolfram Language code: Graphics[Circle[], Frame -> True, GridLines -> Automatic]

Draw grid lines at the specific positions:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, GridLines -> {{Pi, 2Pi}, {-1, -.5, .5, 1}}]

Specify grid styles:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, GridLines -> {{{Pi, Dashed}, {2Pi, Thick}}, {{-1, Orange}, -.5, .5, {1, Orange}}}]

Specify overall grid lines style using GridLinesStyle:

Wolfram Language code: Graphics[Circle[], Frame -> True, GridLines -> Automatic, GridLinesStyle -> Directive[Orange, Dashed]]

Scope  (6)

GridLines Positions  (3)

Place the grids automatically:

Wolfram Language code: Graphics[Circle[], Axes -> True, GridLines -> Automatic]
Wolfram Language code: Plot[Cos[x], {x, 0, 10}, GridLines -> Automatic]
Wolfram Language code: LogLogPlot[1 / x, {x, 1, 100}, GridLines -> Automatic, Frame -> True]

Place the grids in the direction:

Wolfram Language code: Graphics[Circle[], Frame -> True, GridLines -> {Automatic, None}]

Place the grids in the direction:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, GridLines -> {None, Automatic}]

Draw grid lines at specific positions:

Wolfram Language code: Graphics[Circle[], Axes -> True, GridLines -> {{-1, 1}, {-1, 1}}]
Wolfram Language code: Plot[Cos[x], {x, 0, 10}, Ticks -> {None, Automatic}, GridLines -> {{Pi, 2Pi, 3Pi}, {-1, -.5, .5, 1}}]

GridLines Styling  (3)

Specify the style of each grid line:

Wolfram Language code: Graphics[Circle[], Axes -> True, GridLines -> {{-1, {-.5, Dotted}, {.5, Dotted}, 1}, {-1, {-.5, Dotted}, {.5, Dotted}, 1}}]
Wolfram Language code: Plot[Cos[x], {x, 0, 10}, Ticks -> {None, Automatic}, GridLines -> {{{Pi, Dashed}, {2Pi, Directive[Red, Thick]}, 3Pi}, {{-1, Blue}, -.5, .5, {1, Blue}}}]

Specify overall grid lines style using GridLinesStyle:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, Ticks -> {None, Automatic}, GridLines -> {{Pi, 2Pi, 3Pi}, {-1, -.5, .5, 1}}, GridLinesStyle -> Directive[Orange, Dashed]]

Individually styled grid lines can be used with GridLinesStyle and have higher priority:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, Ticks -> {None, Automatic}, GridLines -> {{{Pi, Dashing[{}]}, {2Pi, Directive[Blue, Thick]}, {3Pi, Red}}, Automatic}, GridLinesStyle -> Directive[Orange, Dashed]]

Generalizations & Extensions  (1)

Specify a grid function applied to xmin and xmax values of each direction:

Wolfram Language code: grids[min_, max_] := Table[If[EvenQ[i], {i, Red}, {i, Blue}], {i, Ceiling[min], Floor[max], 1}]
Wolfram Language code: Graphics[{Circle[{0, 0}, 3]}, Frame -> True, GridLines -> grids]

Applications  (3)

Put a solid line at each integer, and a dashed line in between:

Wolfram Language code: grids[min_, max_] := Join[Range[Ceiling[min], Floor[max]], Table[{j + .5, Dashed}, {j, Round[min], Round[max - 1], 1}]]
Wolfram Language code: Graphics[{Circle[{0, 0}, 2]}, Frame -> True, GridLines -> grids]

Emulate graph paper:

Wolfram Language code: grids[min_, max_] := Join[Range[Ceiling[min], Floor[max]], Table[{j + .5, Dashed}, {j, Round[min], Round[max - 1], 1}]]
Wolfram Language code: Plot[Cos[Pi x], {x, 0, 3}, GridLines -> grids, Background -> StandardBlue]

Grid lines on all the integer values:

Wolfram Language code: Graphics[Raster[Table[Append[RandomReal[1, 3], .5], {20}, {20}]], Frame -> True, GridLines -> Function[{min, max}, Range[Floor[min], Ceiling[max]]]]

Properties & Relations  (3)

Grid lines are placed on the major ticks by default:

Wolfram Language code: {Graphics[Circle[], Frame -> True], Graphics[Circle[], Frame -> True, GridLines -> Automatic]}
Wolfram Language code: {Plot[Cos[x], {x, 0, 2Pi}], Plot[Cos[x], {x, 0, 2Pi}, GridLines -> Automatic]}

Grid lines are always drawn below all the graphics:

Wolfram Language code: Graphics[{Pink, Disk[]}, Frame -> True, GridLines -> Automatic]

Mesh and MeshFunctions can be used to draw lines on top of a certain plot:

Wolfram Language code: Plot3D[Sin[x y], {x, 0, 3}, {y, 0, 3}, Mesh -> {3, 3}]
Wolfram Language code: DensityPlot[Sin[x] + Cos[y], {x, 0, 8}, {y, 0, 8}, Mesh -> {{2, {4, Thick}, 6}, {2, {4, Thick}, 6}}]
Wolfram Language code: ListPlot3D[RandomReal[1, {10, 10}], InterpolationOrder -> 2, Mesh -> 5, MeshFunctions -> (#3&)]

Possible Issues  (1)

In some plots, grid lines can be completely occluded by the image:

Wolfram Language code: DensityPlot[Sin[x] + Cos[y], {x, 0, 8}, {y, 0, 8}, GridLines -> {{2, {4, Red}, 6}, {2, {4, Red}, 6}}]

Mesh can be used instead to place the lines above the graphic:

Wolfram Language code: DensityPlot[Sin[x] + Cos[y], {x, 0, 8}, {y, 0, 8}, Mesh -> {{2, {4, Red}, 6}, {2, {4, Red}, 6}}]

Neat Examples  (1)

A random collection of grid lines:

Wolfram Language code: Graphics[{}, PlotRange -> {{0, 1}, {0, 1}}, GridLines -> {Table[{RandomReal[], Hue[RandomReal[]]}, {30}], Table[{RandomReal[], Hue[RandomReal[]]}, {30}]}]
