ImageCorners[image]

finds corners in image and returns their coordinates.

ImageCorners[image,r]

finds corners at a pixel range r.

ImageCorners[image,r,t]

uses a threshold t for selecting corners.

ImageCorners[image,r,t,d]

returns corners that are at least d+1 pixels apart.

ImageCorners[video,…]

returns corners in frames of video.

Details and Options
Details and Options Details and Options
Examples
Basic Examples
Scope
Options
MaxFeatureDisplacement
Applications
Properties & Relations
See Also
Related Guides
History
Cite this Page

ImageCorners

ImageCorners[image]

finds corners in image and returns their coordinates.

ImageCorners[image,r]

finds corners at a pixel range r.

ImageCorners[image,r,t]

uses a threshold t for selecting corners.

ImageCorners[image,r,t,d]

returns corners that are at least d+1 pixels apart.

ImageCorners[video,…]

returns corners in frames of video.

Details and Options

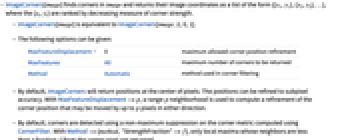

  • ImageCorners[image] finds corners in image and returns their image coordinates as a list of the form {{x1,y1},{x2,y2},…}, where the {xi,yi} are ranked by decreasing measure of corner strength.
  • ImageCorners[image] is equivalent to ImageCorners[image,2,0,1].
  • The following options can be given:
  • MaxFeatureDisplacement 0maximum allowed corner position refinement
    MaxFeaturesAllmaximum number of corners to be returned
    MethodAutomaticmethod used in corner filtering
  • By default, ImageCorners will return positions at the center of pixels. The positions can be refined to subpixel accuracy. With MaxFeatureDisplacement->p, a range-p neighborhood is used to compute a refinement of the corner position that may be moved by up to p pixels in either direction.
  • By default, corners are detected using a non-maximum suppression on the corner metric computed using CornerFilter. With Method->{method,"StrengthFraction"->f}, only local maxima whose neighbors are less than a fraction f from the center pixel are returned.
  • Possible settings for method include:
  • "HarmonicMean"harmonic mean of eigenvalues method
    "HarrisStephens"Harris–Stephens corner detection
    {"HarrisStephens",k}Harris–Stephens method with sensitivity parameter k
    "ShiTomasi"minimum eigenvalue method (default)

Examples

open all close all

Basic Examples  (2)

Corner points in an image:

Wolfram Language code: i = [image]; corners = ImageCorners[i, 3, .01, 5]; HighlightImage[i, corners]

Compute and visualize the main 30 corners in an image:

Wolfram Language code: i = [image]; corners = ImageCorners[i, MaxFeatures -> 30]; HighlightImage[i, corners]

Scope  (2)

By default, all detected corners are returned:

Wolfram Language code: i = [image]; corners = ImageCorners[i, 5, 0]; HighlightImage[i, corners]

Increase the threshold to return the sharper corners only:

Wolfram Language code: corners = ImageCorners[i, 5, .01]; HighlightImage[i, corners]

Specify both threshold and distinctness parameters:

Wolfram Language code: i = [image]; corners = ImageCorners[i, 2, .01, 5]; HighlightImage[i, corners]

Options  (1)

MaxFeatureDisplacement  (1)

Refine corner coordinates by up to three pixels:

Wolfram Language code: i = [image]; corners = ImageCorners[i, 2, .01, MaxFeatureDisplacement -> 0]; refined = ImageCorners[i, 2, .01, MaxFeatureDisplacement -> 3]; HighlightImage[i, #, ImageSize -> 200]& /@ {corners, refined}

Applications  (1)

Detect corners in a brick wall image:

Wolfram Language code: i = [image];
Wolfram Language code: corners = ImageCorners[i, 4, .004, 2, MaxFeatures -> 200, MaxFeatureDisplacement -> 5]; HighlightImage[i, corners]

Filter some corners based on their strength fraction:

Wolfram Language code: corners = ImageCorners[i, 4, .004, 2, MaxFeatures -> 200, MaxFeatureDisplacement -> 5, Method -> {"StrengthFraction" -> .9}]; HighlightImage[i, corners]

Properties & Relations  (1)

ImageCorners are peaks of the CornerFilter using non-max suppression:

Wolfram Language code: i = [image]; cf = CornerFilter[i, 2]; cf//ImageAdjust

Apply non-max suppression and visualize detected corners:

Wolfram Language code: nonmaxSuppression[img_] := Binarize[ImageSubtract[MaxFilter[img, 1], img], {0, 0}];
Wolfram Language code: corners = ImageMultiply[nonmaxSuppression[cf], Binarize[cf, .009]]
Wolfram Language code: HighlightImage[i, corners]

Compare with the result of ImageCorners:

Wolfram Language code: HighlightImage[i, ImageCorners[i, 2, .009]]

Use MaxDetect for finding the peaks:

Wolfram Language code: md = MaxDetect[cf, .009]
Wolfram Language code: HighlightImage[i, ComponentMeasurements[md, "Centroid"][[All, 2]]]
