InputOutputResponseData

InputOutputResponseData[…]

represents response data generated by InputOutputResponse.

Details

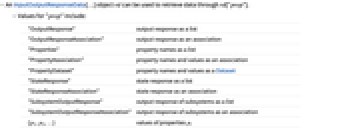

  • An InputOutputResponseData[…] object rd can be used to retrieve data through rd["prop"].
  • Values for "prop" include:
  • "OutputResponse"output response as a list
    "OutputResponseAssociation"output response as an association
    "Properties"property names as a list
    "PropertyAssociation"property names and values as an association
    "PropertyDataset"property names and values as a Dataset
    "StateResponse"state response as a list
    "StateResponseAssociation"state response as an association
    "SubsystemOutputResponse"output response of subsystems as a list
    "SubsystemOutputResponseAssociation"output response of subsystems as an association
    {p1,p2,…}values of properties pi

Examples

Basic Examples  (1)

The response data from a simulation:

Wolfram Language code: ℛ = InputOutputResponse[SystemsConnectionsModel[{SamplerModel[Association["DiscreteVariables" -> {Subscript[, 1][]}, "InputVariables" -> {Subscript[, 1][]}, "OutputVariables" -> {Subscript[, 1][]}, "InitialStateValues" -> {}, "TemporalVariable" -> , "When ... Period", "SignalCount", "TemporalVariable"}], TransferFunctionModel[{{{1}}, 1}, z, SamplingPeriod -> 0.5]}, {{1, 1} -> {2, 1}, {2, 1} -> {3, 1}, {3, 1} -> {4, 1}, {4, 1} -> {5, 1}, {5, 1} -> {6, 1}, {6, 1} -> {2, 2}}, {{1, 1}}, {{4, 1}}], Sin[t], {t, 0, 10}, "Data"]

The list of available properties:

Wolfram Language code: ℛ["Properties"]

A specific property:

Wolfram Language code: ℛ["OutputResponse"]

Multiple properties:

Wolfram Language code: ℛ[{"InputCount", "OutputCount", "StateCount"}]

All properties as a dataset:

Wolfram Language code: ℛ["PropertyDataset"]
