LinearGradientImage

LinearGradientImage[gcol]

returns an image with values linearly changing from left to right based on gradient color gcol.

LinearGradientImage[{pos1,pos2}gcol]

returns an image where the gradient starts at pos1 and ends at pos2.

LinearGradientImage[…,size]

returns a linear gradient image of the specified size.

LinearGradientImage[…,size,"type"]

gives an image converted to the specified type.

Details and Options

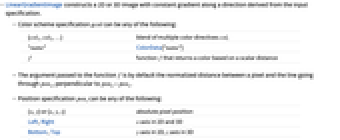

  • LinearGradientImage constructs a 2D or 3D image with constant gradient along a direction derived from the input specification.
  • Color scheme specification gcol can be any of the following:
  • {col1,col2,…}blend of multiple color directives coli
    "name"ColorData["name"]
    ffunction f that returns a color based on a scalar distance
  • The argument passed to the function f is by default the normalized distance between a pixel and the line going through pos1, perpendicular to pos2-pos1.
  • Position specification posi can be any of the following:
  • {x,y} or {x,y,z}absolute pixel position
    Left,Right axis in 2D and 3D
    Bottom,Top axis in 2D, axis in 3D
    Front,Back axis in 3D
    Centercenter alignment
    {posx,…}a list of named positions

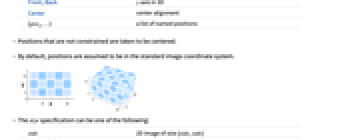

  • Positions that are not constrained are taken to be centered.

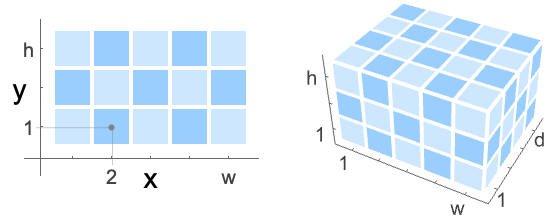

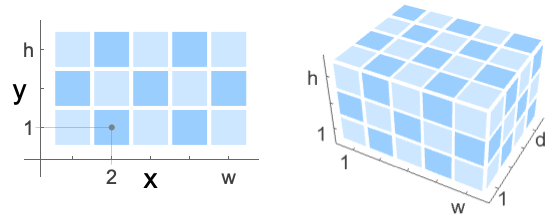

  • By default, positions are assumed to be in the standard image coordinate system.
  • The size specification can be one of the following:
  • side2D image of size {side,side}
    {width,height}2D image size specification
    {width,depth,height}3D image size specification

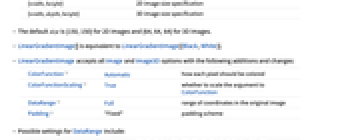

  • The default size is {150,150} for 2D images and {64,64,64} for 3D images.
  • LinearGradientImage[] is equivalent to LinearGradientImage[{Black,White}].
  • LinearGradientImage accepts all Image and Image3D options with the following additions and changes:
  • ColorFunction Automatichow each pixel should be colored
    ColorFunctionScaling Truewhether to scale the argument to ColorFunction
    DataRange Fullrange of coordinates in the original image
    Padding "Fixed"padding scheme
  • Possible settings for DataRange include:
  • Automatic{{0,1},{0,h/w}} in 2D, {{0,1},{0,d/w},{0,h/w}} in 3D
    Full{{0,w},{0,h}} in 2D, {{0,w},{0,d},{0,h}} in 3D (default)
    {{left,right},{bottom,top}}explicit coordinate ranges in 2D
    {{left,right},{front,back},{bottom,top}}explicit coordinate ranges in 3D

Examples

open all close all

Basic Examples  (4)

Linear grayscale gradient from left to right:

Wolfram Language code: LinearGradientImage[]

Linear blend of colors from left to right:

Wolfram Language code: LinearGradientImage[{Blue, Yellow, Red}]

Linear gradient image along a given direction:

Wolfram Language code: LinearGradientImage[{{Left, Bottom}, {Right, Top}} -> {Blue, Yellow, Red}]

Specify the output size:

Wolfram Language code: LinearGradientImage[{Blue, Yellow, Red}, {150, 50}]

Scope  (14)

Color Schemes  (5)

Linear blend of two colors:

Wolfram Language code: LinearGradientImage[{Red, Yellow}]

Linear blend of multiple colors:

Wolfram Language code: LinearGradientImage[{Red, Blue, Green, Yellow}]

Use a gradient color scheme:

Wolfram Language code: LinearGradientImage["Rainbow"]

Use hue as the coloring function:

Wolfram Language code: LinearGradientImage[Hue]

Specify a custom color function:

Wolfram Language code: LinearGradientImage[RGBColor[#, 1 - #, # / 2]&]

Positions  (6)

By default, a linear gradient image from left to right is generated:

Wolfram Language code: LinearGradientImage[ColorData["Rainbow"]]

A top-to-bottom gradient image:

Wolfram Language code: LinearGradientImage[{Top, Bottom} -> ColorData["Rainbow"]]

A diagonal gradient image:

Wolfram Language code: LinearGradientImage[{{Left, Bottom}, {Right, Top}} -> ColorData["Rainbow"]]

If position along one dimension is not given, center alignment is used for that dimension:

Wolfram Language code: LinearGradientImage[{Left, Top} -> ColorData["Rainbow"]]

Left-to-right 3D gradient image:

Wolfram Language code: LinearGradientImage[{Left, Right} -> ColorData["Rainbow"], {7, 7, 7}]

Diagonal 3D gradient image:

Wolfram Language code: LinearGradientImage[{{Left, Front, Top}, {Right, Back, Bottom}} -> ColorData["Rainbow"], {8, 5, 3}]

Size  (3)

By default, a 2D image of size is generated:

Wolfram Language code: LinearGradientImage[Hue]

If absolute pixel positions are given, the minimum image dimensions containing the positions are returned:

Wolfram Language code: LinearGradientImage[{{0, 0}, {100, 100}} -> Hue]

Specify a different output size:

Wolfram Language code: LinearGradientImage[{{0, 0}, {100, 100}} -> Hue, {150, 150}]

By default, a 3D image of size is generated:

Wolfram Language code: LinearGradientImage[{{Left, Front, Bottom}, {Right, Back, Top}} -> "Rainbow"]

Specify the output size:

Wolfram Language code: LinearGradientImage[{{Left, Front, Bottom}, {Right, Back, Top}} -> ColorData["Rainbow"], {40, 30, 20}]

Options  (8)

ColorFunction  (3)

With no color specification, GrayLevel is the default color function:

Wolfram Language code: LinearGradientImage[{{0, 0}, {100, 100}}, {100, 100}]

Specify a different color function:

Wolfram Language code: LinearGradientImage[{{0, 0}, {100, 100}}, {100, 100}, ColorFunction -> Hue]

Use a built-in color gradient:

Wolfram Language code: LinearGradientImage[{{0, 0}, {100, 100}}, {100, 100}, ColorFunction -> ColorData["Rainbow"]]

Use Blend to specify a color function that is a blend of multiple colors:

Wolfram Language code: LinearGradientImage[{{0, 0}, {100, 100}}, {100, 100}, ColorFunction -> (Blend[{Blue, Yellow, Green}, #]&)]

When grayscale 3D images are produced, ColorFunction->"GrayLevelOpacity" is used in Image3D:

Wolfram Language code: LinearGradientImage[{Left, Right}, {10, 10, 10}]

With both ColorFunction and end point colors specified, color function is ignored:

Wolfram Language code: LinearGradientImage[{Left -> Green, Right -> Red}, ColorFunction -> GrayLevel]

ColorFunctionScaling  (2)

By default, the color function parameters are rescaled between 0 and 1:

Wolfram Language code: LinearGradientImage[(Blend[{{0, Red}, {1, Yellow}}, #]&), {200, 20}]

Scaled values might not be suitable for some color functions:

Wolfram Language code: Image[LinearGradientImage[ColorData[2], {20, 5}], ImageSize -> 100]

Use ColorFunctionScaling->False:

Wolfram Language code: Image[LinearGradientImage[ColorData[2], {20, 5}, ColorFunctionScaling -> False], ImageSize -> 100]

DataRange  (2)

The default DataRange is the size of the image:

Wolfram Language code: LinearGradientImage[{{0, 0}, {50, 50}} -> Hue, {100, 100}]

Specify a different data range:

Wolfram Language code: LinearGradientImage[{{0, 0}, {50, 50}} -> Hue, {100, 100}, DataRange -> {{0, 50}, {0, 50}}]

Use a normalized data range to get the same effect, regardless of the image dimensions:

Wolfram Language code: LinearGradientImage[{{1 / 2, 1 / 2}, {1, 1}} -> Hue, {50, 50}, DataRange -> {{0, 1}, {0, 1}}]
Wolfram Language code: LinearGradientImage[{{1 / 2, 1 / 2}, {1, 1}} -> Hue, {100, 50}, DataRange -> {{0, 1}, {0, 1}}]

Padding  (1)

By default, "Fixed" padding is used:

Wolfram Language code: LinearGradientImage[{{20, 20}, {80, 80}}, {100, 100}]

Use a constant padding value:

Wolfram Language code: LinearGradientImage[{{20, 20}, {80, 80}}, {100, 100}, Padding -> Red]

Specify a padding scheme:

Wolfram Language code: LinearGradientImage[{{20, 20}, {80, 80}}, {100, 100}, Padding -> "Periodic"]

Applications  (2)

Apply Bayer's 4×4 dispersed-dot dither matrix to a gradient image:

Wolfram Language code: B4 = {{8, 136, 40, 168}, {200, 72, 232, 104}, {56, 184, 24, 152}, {248, 120, 216, 88}} / 255
Wolfram Language code: i = LinearGradientImage[GrayLevel, {250, 50}]
Wolfram Language code: Binarize[i + Image[N@PadRight[B4, {50, 250}, B4]], 1]

Apply different gradient effects to an image:

Wolfram Language code: img = [image]; {g1, g2} = LinearGradientImage[{Bottom, {Center, 1 / 3}} -> #, ImageDimensions[img], DataRange -> {0, 1}]& /@ {"SandyTerrain", "GreenBrownTerrain"}
Wolfram Language code: Blend[{img, #}]& /@ {g1, g2}
