MagneticPotentialCondition

MagneticPotentialCondition[pred,vars,pars]

represents a magnetic surface potential boundary condition for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.

MagneticPotentialCondition[pred,vars,pars,lkey]

represents a magnetic potential surface boundary condition with local parameters specified in pars[lkey].

Details

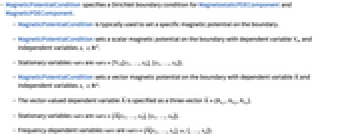

  • MagneticPotentialCondition specifies a Dirichlet boundary condition for MagnetostaticPDEComponent and MagneticPDEComponent.
  • MagneticPotentialCondition is typically used to set a specific magnetic potential on the boundary.
  • MagneticPotentialCondition sets a scalar magnetic potential on the boundary with dependent variable and independent variables .
  • Stationary variables vars are vars={Vm[x1,…,xn],{x1,…,xn}}.
  • MagneticPotentialCondition sets a vector magnetic potential on the boundary with dependent variable and independent variables .
  • The vector-valued dependent variable is specified as a three-vector ={Ax1,Ax2,Ax3}.
  • Stationary variables vars are vars={[x1,…,xn],{x1,…,xn}}.
  • Frequency-dependent variables vars are vars={[x1,…,xn],ω,{,…,xn}}.
  • Time-dependent variables vars are vars={[t,x1,…,xn],t,{x1,…,xn}}.
  • The following additional model parameters pars can be given:
  • parameterdefaultsymbol
    "MagneticPotential"0, magnetic surface potential in [TemplateBox[{InterpretationBox[, 1], "A", amperes, "Amperes"}, QuantityTF]]
    "MagneticPotential"{0,…}, magnetic surface potential in [TemplateBox[{InterpretationBox[, 1], {"A", , "/", , {"m", ^, 2}}, amperes per meter squared, {{(, "Amperes", )}, /, {(, {"Meters", ^, 2}, )}}}, QuantityTF]]
  • Model parameters pars are specified as for MagnetostaticPDEComponent or MagneticPDEComponent.
  • MagneticPotentialCondition evaluates to one or more DirichletCondition instances.
  • The boundary predicate pred can be specified as in DirichletCondition.
  • If the MagneticPotentialCondition depends on parameters that are specified in the association pars as …,keypi…,pivi,…, the parameters are replaced with .

Examples

open all close all

Basic Examples  (4)

Set up a default magnetic potential boundary condition:

Wolfram Language code: MagneticPotentialCondition[x ≥ 0, {Subscript[V, m][x, y], {x, y}}, <||>]

Set up a default magnetic vector potential boundary condition:

Wolfram Language code: MagneticPotentialCondition[x ≥ 0, {{Ax[x, y, z], Ay[x, y, z], Az[x, y, z]}, {x, y, z}}, <||>]

Set up a magnetic potential boundary condition with surface potential :

Wolfram Language code: MagneticPotentialCondition[x ≥ 0, {Subscript[V, m][x, y], {x, y}}, <|"MagneticPotential" -> Subscript[V, ms][x, y]|>]

Set up a default magnetic vector potential boundary condition:

Wolfram Language code: MagneticPotentialCondition[x ≥ 0, {{Ax[x, y, z], Ay[x, y, z], Az[x, y, z]}, {x, y, z}}, <|"MagneticPotential" -> {A1[x, y, z], None, 1}|>]

Scope  (2)

Define model variables vars for a magnetostatic analysis with named boundary condition model parameters pars:

Wolfram Language code: vars = {Subscript[V, m][x, y], {x, y}}; pars = <|"RelativePermeability" -> 1, "BoundaryCondition1" -> <|<|"MagneticPotential" -> Vm1|>|>, "BoundaryCondition2" -> <|<|"MagneticPotential" -> Vm2|>|>|>;

Construct one of the boundary conditions:

Wolfram Language code: MagneticPotentialCondition[x == 1, vars, pars, "BoundaryCondition2"]

Define model variables vars for a magnetic analysis with named boundary condition model parameters pars:

Wolfram Language code: vars = {{Ax[x, y, z], Ay[x, y, z], Az[x, y, z]}, {x, y, z}}; pars = <|"RelativePermeability" -> 1, "BoundaryCondition1" -> <|<|"MagneticPotential" -> {A0x, None, A0z}|>|>, "BoundaryCondition2" -> <|<|"MagneticPotential" -> {None, None, A0z}|>|>|>;

Construct one of the boundary conditions:

Wolfram Language code: MagneticPotentialCondition[x == 1, vars, pars, "BoundaryCondition2"]

Applications  (3)

To model a permanent magnet in 2D with a rectangular cross section, define the mesh to use:

Wolfram Language code: mesh = \!\(\*GraphicsBox[«3»]\);

Visualize the internal boundaries of the magnet region:

Wolfram Language code: Show[HighlightMesh[mesh, {...}], PlotRange -> {{-0.08, 0.08}, {-0.15, 0.15}}]

Define the magnetostatic operator:

Wolfram Language code: op = MagnetostaticPDEComponent[{Vm[x, y], {x, y}}, <|"Magnetization" -> {0, Piecewise[{{400000, RegionMember[Rectangle[{-0.05, -0.1}, {0.05, 0.1}]][{x, y}]}}, 0]}|>];

Define the zero magnetic scalar potential condition at the exterior boundaries:

Wolfram Language code: Subscript[Γ, zero] = MagneticPotentialCondition[x == -1 || x == 1 || y == -1 || y == 1, {Vm[x, y], {x, y}}, <||>]

Solve the magnetostatic PDE model:

Wolfram Language code: VmFun = NDSolveValue[{op == 0, Subscript[Γ, zero]}, Vm, {x, y}∈mesh]

Visualize the magnetic scalar potential and the magnetic field:

Wolfram Language code: Show[DensityPlot[VmFun[x, y], {x, -0.3, 0.3}, {y, -0.3, 0.3}, ColorFunction -> "Rainbow", PlotLegends -> Automatic], Graphics[{Gray, Rectangle[{-0.05, -0.1}, {0.05, 0.1}]}], StreamPlot[Evaluate[-Grad[VmFun[x, y], {x, y}]], {x, -0.3, 0.3}, {y, -0.3, 0.3}, StreamColorFunction -> None, StreamStyle -> Black]]

To model a 3D cylinder permanent magnet, set up variables:

Wolfram Language code: vars = {Vm[x, y, z], {x, y, z}};

Define the magnet region of height [TemplateBox[{InterpretationBox[, 1], "m", meters, "Meters"}, QuantityTF]] and radius [TemplateBox[{InterpretationBox[, 1], "m", meters, "Meters"}, QuantityTF]]:

Wolfram Language code: magnet = Cylinder[{{0, 0, -1 / 10}, {0, 0, 1 / 10}}, 1 / 10];

Define the magnetization vector:

Wolfram Language code: pars = <|"Magnetization" -> {0, 0, Piecewise[{{1*^5, RegionMember[magnet][{x, y, z}]}}, 0]}|>;

Set up boundary conditions:

Wolfram Language code: Subscript[Γ, p] = MagneticPotentialCondition[x ^ 2 + y ^ 2 + z ^ 2 >= 2 ^ 2, vars, pars]

Set up the mesh with a sphere of air of [TemplateBox[{InterpretationBox[, 1], "m", meters, "Meters"}, QuantityTF]] that represents the surrounding volume:

Wolfram Language code: mesh = \!\(\*Graphics3DBox[«5»]\);

Visualize the magnet cylinder that is inside the mesh:

Wolfram Language code: Show[Graphics3D[{Opacity[0.1], magnet}, Boxed -> False], HighlightMesh[RegionBoundary[mesh], {}, PlotTheme -> "Lines"]]

Set up the magnetostatIc PDE component:

Wolfram Language code: op = MagnetostaticPDEComponent[vars, pars];

Solve the PDE:

Wolfram Language code: VmFun = NDSolveValue[{op == 0, Subscript[Γ, p]}, Vm, {x, y, z}∈mesh]

Visualize the magnetic field:

Wolfram Language code: Show[Graphics3D[{LightGray, magnet}], StreamPlot3D[Evaluate[-Grad[VmFun[x, y, z], {x, y, z}]], {x, -0.5, 0.5}, {y, -0.5, 0.5}, {z, -0.5, 0.5}, ...], Rule[...]]

Define the mesh to model a long copper wire of circular cross section:

Wolfram Language code: mesh = \!\(\*GraphicsBox[«3»]\);

Define the wire region:

Wolfram Language code: wireRegion = Disk[{0, 0}, 0.01];

Define the air region:

Wolfram Language code: airRegion = Disk[{0, 0}, 0.1];

Define the parameters of the model:

Wolfram Language code: pars = <|"ElectricalConductivity" -> Piecewise[{{5.9*^7, RegionMember[wireRegion][{x, y}]}}, 0], "RelativePermeability" -> 1|>;

Define the variables:

Wolfram Language code: vars = {{0, 0, Az[x, y]}, ω, {x, y}};

Define the uniform external current density in the direction:

Wolfram Language code: Je0 = 100000; pars["ExternalCurrentSource"] = {0, 0, Piecewise[{{Je0, RegionMember[wireRegion][{x, y}]}}]};

Define the magnetic equation:

Wolfram Language code: op = MagneticPDEComponent[vars, pars]

Define a zero magnetic potential condition at the exterior boundary:

Wolfram Language code: Subscript[Γ, zero] = MagneticPotentialCondition[x ^ 2 + y ^ 2 >= 0.1 ^ 2, vars, pars]

Define the PDE:

Wolfram Language code: pde = {op == 0, Subscript[Γ, zero]};

Set up an angular frequency of 800 Hz:

Wolfram Language code: ω0 = 2 * Pi * 800;

Replace the angular frequency of the equation with the frequency and solve the PDE:

Wolfram Language code: AzFun = NDSolveValue[pde /. ω -> ω0, Az, {x, y}∈mesh]

Compute the electric field:

Wolfram Language code: Efield = {0, 0, -I * ω0 * AzFun[x, y]};

Compute the conduction current:

Wolfram Language code: Jc = pars["ElectricalConductivity"] * Efield;

Extract the external current:

Wolfram Language code: Je = pars["ExternalCurrentSource"];

Compute the total current:

Wolfram Language code: Jfield = Jc + Je;

Visualize the total current magnitude:

Wolfram Language code: DensityPlot[Sqrt[Total[Abs[Jfield] ^ 2]], {x, y}∈mesh, ...]
