MassFluxValue

represents a mass flux boundary condition for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.

MassFluxValue[pred,vars,pars,lkey]

represents a mass flux boundary condition with local parameters specified in pars[lkey].

Details

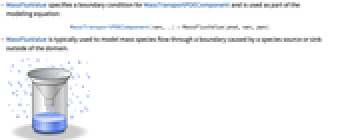

MassFluxValue specifies a boundary condition for MassTransportPDEComponent and is used as part of the modeling equation:

MassFluxValue is typically used to model mass species flow through a boundary caused by a species source or sink outside of the domain.

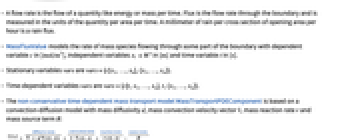

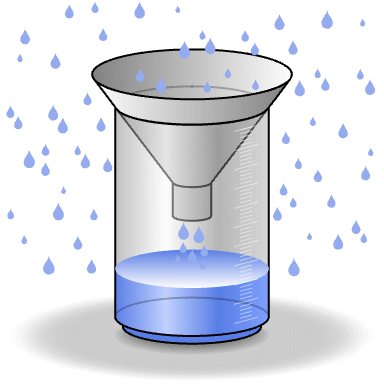

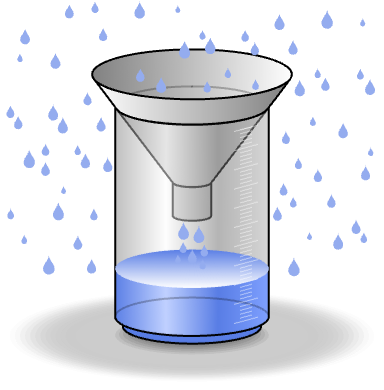

A flow rate is the flow of a quantity like energy or mass per time. Flux is the flow rate through the boundary and is measured in the units of the quantity per area per time. A millimeter of rain per cross section of opening area per hour is a rain flux.
MassFluxValue models the rate of mass species flowing through some part of the boundary with dependent variable in [ $TemplateBox[{InterpretationBox[, 1], {"mol", , "/", , {"m", ^, 3}}, moles per meter cubed, {{(, "Moles", )}, /, {(, {"Meters", ^, 3}, )}}}, QuantityTF]$ ], independent variables in [] and time variable in [].
Stationary variables vars are vars={c[x₁,…,x_n],{x₁,…,x_n}}.
Time-dependent variables vars are vars={c[t,x₁,…,x_n],t,{x₁,…,x_n}}.

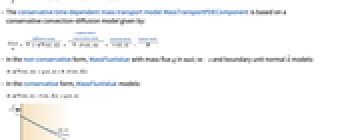

The non-conservative time-dependent mass transport model MassTransportPDEComponent is based on a convection-diffusion model with mass diffusivity , mass convection velocity vector , mass reaction rate and mass source term :

The conservative time-dependent mass transport model MassTransportPDEComponent is based on a conservative convection-diffusion model given by:

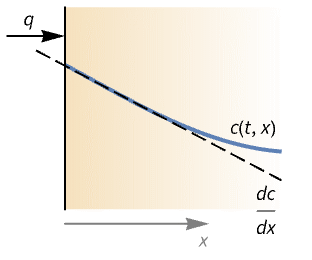

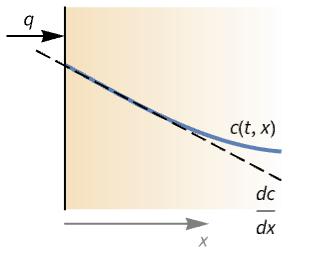

In the non-conservative form, MassFluxValue with mass flux in and boundary unit normal models:

In the conservative form, MassFluxValue models:

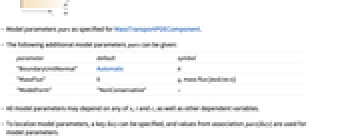

Model parameters pars as specified for MassTransportPDEComponent.
The following additional model parameters pars can be given:
parameter default symbol

"BoundaryUnitNormal" Automatic

"MassFlux" 0 , mass flux []

"ModelForm" "NonConservative" -
All model parameters may depend on any of , and , as well as other dependent variables.
To localize model parameters, a key lkey can be specified, and values from association pars[lkey] are used for model parameters.
MassFluxValue evaluates to a NeumannValue.
The boundary predicate pred can be specified as in NeumannValue.
If the MassFluxValue depends on parameters that are specified in the association pars as …,keyp_i…,p_iv_i,…, the parameters are replaced with .

Examples

open all close all

Basic Examples (2)

Set up a mass flux boundary condition in non-conservative form:

Wolfram Language code: MassFluxValue[x ≥ 0, {c[t, x], t, {x}}, <|"MassConvectionVelocity" -> {v}, "MassFlux" -> q[t, x]|>]

Set up a mass flux boundary condition in conservative form:

Wolfram Language code: MassFluxValue[x ≥ 0, {c[t, x], t, {x}}, <|"ModelForm" -> "Conservative", "MassFlux" -> q[t, x]|>]

Scope (10)

Basic Uses (2)

Define model variables vars for a transient species field with model parameters pars and a specific boundary condition parameter:

Wolfram Language code:

vars = {c[t, x, y], t, {x, y}};
pars = <|"DiffusionCoefficient" -> 0.026, "MassConvectionVelocity" -> {0.1}, "BoundaryCondition1" -> <|"MassFlux" -> q1|>|>;
MassFluxValue[x == 1, vars, pars, "BoundaryCondition1"]

Define model variables vars for a transient species field with model parameters pars and multiple specific parameter boundary conditions:

Wolfram Language code:

vars = {c[t, x, y], t, {x, y}};
pars = <|"DiffusionCoefficient" -> 0.026, "MassConvectionVelocity" -> {0.1}, "BoundaryCondition1" -> <|"MassFlux" -> q1|>, "BoundaryCondition2" -> <|"MassFlux" -> q2|>|>;

Wolfram Language code: MassFluxValue[x == 0, vars, pars, "BoundaryCondition1"]

Wolfram Language code: MassFluxValue[x == 1, vars, pars, "BoundaryCondition2"]

1D (1)

Model a 1D chemical species field in an incompressible fluid whose right side and left side are subjected to a mass concentration and inflow condition, respectively:

Set up the stationary mass transport model variables :

Wolfram Language code: vars = {c[x], {x}};

Set up a region :

Wolfram Language code: Ω = Line[{{0}, {1}}];

Specify the mass transport model parameters species diffusivity and fluid flow velocity :

Wolfram Language code: pars = <|"DiffusionCoefficient" -> 0.026, "MassConvectionVelocity" -> {0.1}|>;

Specify a species flux boundary condition:

Wolfram Language code: Subscript[Γ, flux] = MassFluxValue[x == 0, vars, pars, <|"MassFlux" -> 1|>]

Specify a mass concentration boundary condition:

Wolfram Language code: Subscript[Γ, C] = MassConcentrationCondition[x == 1, vars, pars, <|"MassConcentration" -> 0|>]

Set up the equation:

Wolfram Language code: eqn = MassTransportPDEComponent[vars, pars] == Subscript[Γ, flux]

Solve the PDE:

Wolfram Language code: cfun = NDSolveValue[{eqn, Subscript[Γ, C]}, c, x∈Ω];

Visualize the solution:

Wolfram Language code: Plot[cfun[x], x∈Ω, Rule[...]]

2D (1)

Model mass transport of a pollutant in a 2D rectangular region in an isotropic homogeneous medium. Initially, the pollutant concentration is zero throughout the region of interest. A concentration of 3000 is maintained at a strip with dimension 0.2 located at the center of the left boundary, while the right boundary is subject to a parallel species flow with a constant concentration of 1500 , allowing for mass transfer. A pollutant outflow of 100 is applied at both the top and bottom boundaries. A diffusion coefficient of 0.833 is distributed uniformly with a uniform horizontal velocity of 0.01 :

Set up the mass transport model variables :

Wolfram Language code: vars = {c[x, y], {x, y}};

Set up a rectangular domain with a width of and a height of :

Wolfram Language code: Ω = Rectangle[{0, 0}, {20, 10}];

Specify model parameters species diffusivity and fluid flow velocity :

Wolfram Language code: pars = <|"DiffusionCoefficient" -> 0.833, "MassConvectionVelocity" -> {0.01, 0}|>;

Set up a species concentration source of 0.2 length at the center of the left surface:

Wolfram Language code:

Subscript[Γ, concentration] = MassConcentrationCondition[x == 0 && y ≤ 5.1 && y ≥ 4.9, vars, pars, <|"MassConcentration" -> 3000|>]

Set up a mass transfer boundary on the right surface:

Wolfram Language code:

Subscript[Γ, transfer] = MassTransferValue[x == 20, vars, pars, <|"AmbientConcentration" -> 1500, "MassTransferCoefficient" -> 5|>]

Set up an outflow flux of on the top and bottom surfaces:

Wolfram Language code: Subscript[Γ, flux] = MassFluxValue[y == 0 || y == 10, vars, pars, <|"MassFlux" -> -100|>]

Set up the equation:

Wolfram Language code: eqn = MassTransportPDEComponent[vars, pars] == Subscript[Γ, transfer] + Subscript[Γ, flux]

Solve the PDE:

Wolfram Language code: cfun = NDSolveValue[{eqn, Subscript[Γ, concentration]}, c, {x, y}∈Ω];

Visualize the solution:

Wolfram Language code: ContourPlot[cfun[x, y], {x, y}∈Ω, ...]

3D (1)

Model a non-conservative chemical species field in a unit cubic domain, with two mass conditions at two lateral surfaces and a mass inflow through a circle with radius 0.2 at the center of the top surface, as well as an orthotropic mass diffusivity :

del .(-d del c(x,y,z))+v^->.del c(x,y,z)^(︷^( mass transport model )) =|_(Gamma_(z=1& (x-0.5)^2+(y-0.5)^2<=0.04))q(x,y,z)^(︷^( mass flux value ))

Set up the mass transport model variables :

Wolfram Language code: vars = {c[x, y, z], {x, y, z}};

Set up a region :

Wolfram Language code: Ω = Cuboid[{0, 0, 0}, {1, 1, 1}];

Specify a diffusivity and a flow velocity field :

Wolfram Language code: pars = <|"DiffusionCoefficient" -> {{1, 0, 0}, {0, 5, 0}, {0, 0, 10}}, "MassConvectionVelocity" -> {0, 10, 0}|>;

Specify mass concentrations:

Wolfram Language code:

Subscript[Γ, CC] = {MassConcentrationCondition[x == 0, vars, <|"MassConcentration" -> 0|>], MassConcentrationCondition[x == 1, vars, <|"MassConcentration" -> 1|>]}

Specify a flux condition of through a regional circle on the top surface:

Wolfram Language code: Subscript[Γ, flux] = MassFluxValue[z == 1 && (x - 0.5) ^ 2 + (y - 0.5) ^ 2 ≤ 0.04, vars, pars, <|"MassFlux" -> 100|>]

Set up the equation:

Wolfram Language code: eqn = MassTransportPDEComponent[vars, pars] == Subscript[Γ, flux]

Solve the PDE:

Wolfram Language code: cfun = NDSolveValue[{eqn, Subscript[Γ, CC]}, c, {x, y, z}∈Ω];

Visualize the solution:

Wolfram Language code: GraphicsRow[Table[SliceContourPlot3D[cfun[x, y, z], sl, {x, y, z}∈Ω, ...], {...}]]

Material Regions (1)

Model a 1D chemical species transport through different material with a reaction rate in one. The right side and left side are subjected to a mass concentration and inflow condition, respectively:

Set up the stationary mass transport model variables :

Wolfram Language code: vars = {c[x], {x}};

Set up a region :

Wolfram Language code: Ω = Line[{{0}, {1}}];

Specify the mass transport model parameters species diffusivity and a reaction rate active in the region :

Wolfram Language code: pars = <|"DiffusionCoefficient" -> 0.01, "MassReactionRate" -> If[x > 1 / 2, 1, 0]|>;

Specify a species flux boundary condition:

Wolfram Language code: Subscript[Γ, flux] = MassFluxValue[x == 0, vars, pars, <|"MassFlux" -> 1|>]

Specify a mass concentration boundary condition:

Wolfram Language code: Subscript[Γ, C] = MassConcentrationCondition[x == 1, vars, pars, <|"MassConcentration" -> 0|>]

Set up the equation:

Wolfram Language code: eqn = MassTransportPDEComponent[vars, pars] == Subscript[Γ, flux]

Solve the PDE:

Wolfram Language code: cfun = NDSolveValue[{eqn, Subscript[Γ, C]}, c, x∈Ω];

Visualize the solution:

Wolfram Language code: Show[Plot[cfun[x], x∈Ω, Rule[...]], Graphics[...]]

Time Dependent (1)

Model a 1D non-conservative chemical species field and a mass flux through part of the boundary with:

Set up the time-dependent mass transport model variables :

Wolfram Language code: vars = {c[t, x], t, {x}};

Set up a region :

Wolfram Language code: Ω = Line[{{0}, {1}}];

Specify the mass transport model parameters mass diffusivity and mass convection velocity :

Wolfram Language code: pars = <|"DiffusionCoefficient" -> 0.01, "MassConvectionVelocity" -> {0.02}|>;

Set up the equation with a mass flux of at the left end for the first 50 seconds:

Wolfram Language code:

model = MassTransportPDEComponent[vars, pars] == MassFluxValue[x == 0, vars, pars, <|"MassFlux" -> Piecewise[{{10, t ≤ 50}, {0, t > 50}}]|>]

Solve the PDE with an initial condition of a zero concentration:

Wolfram Language code: cfun = NDSolveValue[{model, c[0, x] == 0}, c, {t, 0, 100}, x∈Ω];

Visualize the solution:

Wolfram Language code: Manipulate[Show[Plot[cfun[t, x], ...], Graphics[...]], {{t, 30}, 0, 100, 2.5}, Rule[...]]

Nonlinear Time Dependent (1)

Model a 1D non-conservative chemical species field with a nonlinear diffusivity coefficient and an outflow condition through part of the boundary, which is expressed as follows:

Set up the mass transport model variables :

Wolfram Language code: vars = {c[t, x], t, {x}};

Set up a region :

Wolfram Language code: Ω = Line[{{0}, {1}}];

Specify a nonlinear species diffusivity and fluid flow velocity :

Wolfram Language code: pars = <|"DiffusionCoefficient" -> {{0.001 * Log[c[t, x] ^ 2 + 1]}}, "MassConvectionVelocity" -> {0.02}|>;

Specify an outflow flux of applied at the right end:

Wolfram Language code: Subscript[Γ, flux] = MassFluxValue[x == 1, vars, pars, <|"MassFlux" -> -1|>]

Specify a time-dependent mass concentration surface condition:

Wolfram Language code: Subscript[Γ, C] = MassConcentrationCondition[x == 0, vars, pars, <|"MassConcentration" -> 100 + 0.1 * t|>]

Set up an initial condition:

Wolfram Language code: ics = c[0, x] == 100;

Set up the equation:

Wolfram Language code: eqn = MassTransportPDEComponent[vars, pars] == Subscript[Γ, flux]

Solve the PDE:

Wolfram Language code: cfun = NDSolveValue[{eqn, ics, Subscript[Γ, C]}, c, {t, 0, 500}, x∈Ω];

Visualize the solution:

Wolfram Language code: Manipulate[Show[Plot[cfun[t, x], ...], Graphics[...]], {{t, 30}, 0, 500, 1}, Rule[...]]

Coupled Time Dependent (2)

Model a 1D coupled non-conservative dual chemical species field with corresponding mass flux through the left parts of the boundary:

Set up the time dependent mass transport model variables for the and species, respectively:

Wolfram Language code: vars = {{Subscript[c, 1][t, x], Subscript[c, 2][t, x]}, t, {x}};

Set up a uniform region :

Wolfram Language code: Ω = Line[{{0}, {1}}];

Specify the mass transport model parameters mass diffusivity and for the and species:

Wolfram Language code: pars = <|"DiffusionCoefficient" -> {{0.01, 0}, {0, 0.02}}|>;

Set up the boundary conditions with a mass flux of and for and at the left end for the first 50 seconds:

Wolfram Language code: Subscript[Γ, flux] = MassFluxValue[x == 0, vars, pars, <|"MassFlux" -> {If[t ≤ 50, 4, 0], If[t ≤ 50, 8, 0]}|>]

Set up the equation:

Wolfram Language code: eqn = MassTransportPDEComponent[vars, pars] == Subscript[Γ, flux]

Set up initial conditions:

Wolfram Language code: ics = {Subscript[c, 1][0, x] == 0, Subscript[c, 2][0, x] == 0};

Solve the PDEs:

Wolfram Language code: {c1fun, c2fun} = NDSolveValue[{eqn, ics}, {Subscript[c, 1], Subscript[c, 2]}, {t, 0, 100}, {x}∈Ω];

Visualize the solution:

Wolfram Language code:

Manipulate[Show[Plot[{c1fun[t, x], c2fun[t, x]}, ..., PlotLegends -> {"SubscriptBox[c, 1](x)", "SubscriptBox[c, 2](x)"}], Graphics[...]], {{t, 30}, 0, 100, 2.5}, Rule[...]]

Model a 1D coupled chemical species field with a convection velocity and a mass flux through the left boundary:

Set up the time-dependent mass transport model variables for and species, respectively:

Wolfram Language code: vars = {{Subscript[c, 1][t, x], Subscript[c, 2][t, x]}, t, {x}};

Set up a uniform region :

Wolfram Language code: Ω = Line[{{0}, {1}}];

Specify the mass transport model parameters mass diffusivity and for the and species:

Wolfram Language code: pars = <|"DiffusionCoefficient" -> {{0.02, 0}, {0, 0.02}}, "MassConvectionVelocity" -> {{{0.02}, {0}}, {{0}, {0.02}}}|>;

Set up the equation with a mass flux of 6 and 12 for and at the left end for the first 50 seconds:

Wolfram Language code:

Subscript[Γ, flux] = MassFluxValue[x == 0, vars, pars, <|"MassFlux" -> {{Piecewise[{{6, t ≤ 50}, {0, t > 50}}], 0}, {0, Piecewise[{{12, t ≤ 50}, {0, t > 50}}]}}|>];

Set up the equation:

Wolfram Language code: eqn = MassTransportPDEComponent[vars, pars] == Subscript[Γ, flux]

Set up initial conditions:

Wolfram Language code: ics = {Subscript[c, 1][0, x] == 0, Subscript[c, 2][0, x] == 0};

Solve the PDEs:

Wolfram Language code: {c1fun, c2fun} = NDSolveValue[{eqn, ics}, {Subscript[c, 1], Subscript[c, 2]}, {t, 0, 100}, {x}∈Ω];

Visualize the solution:

Wolfram Language code:

Manipulate[Show[Plot[{c1fun[t, x], c2fun[t, x]}, ..., PlotLegends -> {"SubscriptBox[c, 1](x)", "SubscriptBox[c, 2](x)"}], Graphics[...]], {{t, 30}, 0, 100, 2.5}, Rule[...]]

Applications (2)

Single Equation (1)

Model mass transport of a pollutant in a 2D rectangular region in an isotropic homogeneous medium. Initially, the pollutant concentration is zero throughout the region of interest. A concentration of 3000 is maintained at a strip with dimension 0.2 located at the center of the left boundary, while a pollutant outflow of 100 is applied at both the top and bottom boundaries. A diffusion coefficient of 0.833 is distributed uniformly, but both horizontal and vertical velocity are spatial dependent:

Set up the mass transport model variables :

Wolfram Language code: vars = {c[x, y], {x, y}};

Set up a rectangular domain with a width of and a height of :

Wolfram Language code: Ω = Rectangle[{0, 0}, {20, 10}];

Specify model parameters species diffusivity and fluid flow velocity :

Wolfram Language code: pars = <|"DiffusionCoefficient" -> 0.833, "MassConvectionVelocity" -> {0.01x ^ 2, -0.02y}|>;

Set up a species concentration source of 0.2 length at the center of the left surface:

Wolfram Language code: Subscript[Γ, C] = MassConcentrationCondition[x == 0 && 4.9 ≤ y ≤ 5.1, vars, pars, <|"MassConcentration" -> 3000|>]

Set up an outflow flux of on the top and bottom surfaces:

Wolfram Language code: Subscript[Γ, flux] = MassFluxValue[y == 0 || y == 10, vars, pars, <|"MassFlux" -> -10|>]

Set up the equation:

Wolfram Language code: eqn = {MassTransportPDEComponent[vars, pars] == Subscript[Γ, flux], Subscript[Γ, C]}

Solve the PDE:

Wolfram Language code: cfun = NDSolveValue[eqn, c, {x, y}∈Ω];

Visualize the solution:

Wolfram Language code: ContourPlot[cfun[x, y], {x, y}∈Ω, Rule[...]]

Coupled Equations (1)

Solve a coupled heat transfer and mass transport model with a thermal transfer value and a mass flux value on the boundary:

(partialT(t, x))/(partialt)+del .(-k del T(t,x))-Q^(︷^( heat transfer model )) = |_(Gamma_(x=1))h (T_(ext)(t,x)-T(t,x))^(︷^( heat transfer boundary )); (partialc(t,x))/(partialt)+del .(-d del c(t,x))-R^(︷^( mass transport model )) = |_(Gamma_(x=0||x=1))q (t,x)^(︷^( mass flux boundary ))

Set up the heat transfer mass transport model variables :

Wolfram Language code:

hvars = {T[t, x], t, {x}};
mvars = {c[t, x], t, {x}};

Set up a region :

Wolfram Language code: Ω = Line[{{0}, {1}}];

Specify heat transfer and mass transport model parameters, heat source , thermal conductivity , mass diffusivity and mass source :

Wolfram Language code:

pars = <|"ThermalConductivity" -> 0.01, "HeatSource" -> 0.2 * R, "DiffusionCoefficient" -> 0.01, "MassSource" -> R, R -> -10 ^ -3 * T[t, x] * c[t, x]|>;

Specify boundary condition parameters for a thermal convection value with an external flow temperature of 1000 K and a heat transfer coefficient of :

Wolfram Language code: pars["BC1"] = <|"AmbientTemperature" -> 1000, "HeatTransferCoefficient" -> 0.1|>;

Specify the equation:

Wolfram Language code:

eqn = {HeatTransferPDEComponent[hvars, pars] == HeatTransferValue[x == 1, hvars, pars, "BC1"], MassTransportPDEComponent[mvars, pars] == NeumannValue[20, x == 0 || x == 1]}

Set up initial conditions:

Wolfram Language code: ics = {T[0, x] == 200 + 800x, c[0, x] == 800};

Solve the model:

Wolfram Language code: {Tfun, cfun} = NDSolveValue[{eqn, ics}, {T, c}, {t, 0, 10}, {x, 0, 1}];

Visualize the solution:

Wolfram Language code: Manipulate[Plot[{cfun[t, x], Tfun[t, x]}, {x}∈Ω, ...], {{t, 1.7}, 0, 10}, Rule[...]]

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

MassFluxValue

Details

Examples

Basic Examples (2)

Scope (10)

Basic Uses (2)

1D (1)

2D (1)

3D (1)

Material Regions (1)

Time Dependent (1)

Nonlinear Time Dependent (1)

Coupled Time Dependent (2)

Applications (2)

Single Equation (1)

Coupled Equations (1)

Text

CMS

APA

BibTeX

BibLaTeX

parameter	default	symbol
"BoundaryUnitNormal"	Automatic
"MassFlux"	0	, mass flux []
"ModelForm"	"NonConservative"	-

MassFluxValue

Details

Examples

Basic Examples (2)

Scope (10)

Basic Uses (2)

1D (1)

2D (1)

3D (1)

Material Regions (1)

Time Dependent (1)

Nonlinear Time Dependent (1)

Coupled Time Dependent (2)

Applications (2)

Single Equation (1)

Coupled Equations (1)

See Also

Tech Notes

Related Guides

History

Text

CMS

APA

BibTeX

BibLaTeX
