MeshCellStyle

MeshCellStyle

is an option and annotation of MeshRegion, BoundaryMeshRegion, and related functions that specifies styles to use for mesh cells.

Details

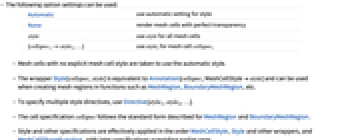

  • The following option settings can be used:
  • Automaticuse automatic setting for style
    Nonerender mesh cells with perfect transparency
    styleuse style for all mesh cells
    {cellspec1->style1,…}use stylei for mesh cell cellspeci
  • Mesh cells with no explicit mesh cell style are taken to use the automatic style.
  • The wrapper Style[cellspec,style] is equivalent to Annotation[cellspec,MeshCellStylestyle] and can be used when creating mesh regions in functions such as MeshRegion, BoundaryMeshRegion, etc.
  • To specify multiple style directives, use Directive[style1,style2,…].
  • The cell specification cellspec follows the standard form described for MeshRegion and BoundaryMeshRegion.
  • Style and other specifications are effectively applied in the order MeshCellStyle, Style and other wrappers, and MeshCellShapeFunction, with later specifications overriding earlier ones.

Examples

open all close all

Basic Examples  (3)

Style all 1D cells red and all 0D cells green:

Wolfram Language code: MeshRegion[{{0, 0}, {1, 0}, {2, 1 / 2}, {2, -1 / 2}}, {Line[{1, 2}], Line[{2, 3}], Line[{3, 4}], Line[{4, 2}]}, MeshCellStyle -> {{1, All} -> Red, {0, All} -> Green}]

Style all 2D cells transparent orange, 1D elements red, and 0D elements green:

Wolfram Language code: MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, -1, 0}, {1, 0, 0}, {0, 1, 0}}, {Triangle[{1, 2, 3}], Triangle[{1, 2, 4}], Triangle[{1, 2, 5}]}, MeshCellStyle -> {{2, All} -> Opacity[0.5, Orange], {1, All} -> Red, {0, All} -> Directive[PointSize[Medium], Green]}]

Style all 2D cells transparent orange:

Wolfram Language code: MeshRegion[{{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {0, 2, 0}, {1, 1, 2}}, {Tetrahedron[{1, 2, 3, 5}], Tetrahedron[{1, 3, 4, 5}]}, MeshCellStyle -> {{2, All} -> Opacity[0.5, Orange]}]

Scope  (10)

Style all 1D cells red and all 0D cells green:

Wolfram Language code: MeshRegion[{{0, 0}, {1, 0}, {2, 1 / 2}, {2, -1 / 2}}, {Line[{1, 2}], Line[{2, 3}], Line[{3, 4}], Line[{4, 2}]}, MeshCellStyle -> {{1, All} -> Red, {0, All} -> Green}]

Style all 2D cells transparent orange, 1D elements red, and 0D elements green:

Wolfram Language code: MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, -1, 0}, {1, 0, 0}, {0, 1, 0}}, {Triangle[{1, 2, 3}], Triangle[{1, 2, 4}], Triangle[{1, 2, 5}]}, MeshCellStyle -> {{2, All} -> Opacity[0.5, Orange], {1, All} -> Red, {0, All} -> Directive[PointSize[Medium], Green]}]

Style all 2D cells transparent orange:

Wolfram Language code: MeshRegion[{{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {0, 2, 0}, {1, 1, 2}}, {Tetrahedron[{1, 2, 3, 5}], Tetrahedron[{1, 3, 4, 5}]}, MeshCellStyle -> {{2, All} -> Opacity[0.5, Orange]}]

Individual cells can be styled using their cell index:

Wolfram Language code: MeshRegion[{{0}, {1}, {2}}, Line[{{1, 2, 3}}], MeshCellStyle -> {{1, 1} -> {Thick, Red}, {1, 2} -> {Dashed, Green}}]

Or by the cell itself:

Wolfram Language code: MeshRegion[{{0}, {1}, {2}}, Line[{{1, 2, 3}}], MeshCellStyle -> {Line[{1, 2}] -> {Thick, Red}, Line[{2, 3}] -> {Dashed, Green}}]

All can be used to specify all cells:

Wolfram Language code: BoundaryMeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Line[{1, 2, 3, 1}], MeshCellStyle -> {All -> Red}]

By default, all cells are styled:

Wolfram Language code: BoundaryMeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Line[{1, 2, 3, 1}], MeshCellStyle -> Red]

Style all cells of a given dimension:

Wolfram Language code: BoundaryMeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Line[{1, 2, 3, 1}], MeshCellStyle -> {0 -> {PointSize[Large], Green}, 1 -> Red}]

Specify a list of cell indices to style:

Wolfram Language code: BoundaryMeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Line[{1, 2, 3, 1}], MeshCellStyle -> {{{0, 1}, {1, 2}} -> Red}]

Style cells whose dimensions match a pattern:

Wolfram Language code: BoundaryMeshRegion[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}, Polygon[{{1, 2, 3}, {1, 2, 4}, {2, 3, 4}, {1, 3, 4}}], MeshCellStyle -> {{0 | 1} -> Red}]

Style cells whose indices match a pattern:

Wolfram Language code: BoundaryMeshRegion[{{0, 0}, {3, 0}, {3, 3}, {0, 3}, {1, 1}, {2, 1}, {2, 2}, {1, 2}}, Line[{1, 2, 3, 4, 1}], Line[{5, 6, 7, 8, 5}], MeshCellStyle -> {{1, _ ? EvenQ} -> Red}]

Style with graphics directives appropriate for the dimension of the components:

Wolfram Language code: ℛ = BoundaryMeshRegion[{{0, 0, 0}, {4, 0, 0}, {0, 4, 0}, {0, 0, 4}}, Polygon[{{1, 2, 3}, {1, 2, 4}, {2, 3, 4}, {1, 3, 4}}], MeshCellStyle -> {0 -> {PointSize[Large], Green}, 1 -> {Dashed, Thick, Red}, 2 -> Opacity[0.7, Orange]}]

Applications  (1)

Style a polyhedron's faces by the number of vertices it has:

Wolfram Language code: PolyhedronMesh[name_] := BoundaryMeshRegion[PolyhedronData[name, "Vertices"], Polygon[PolyhedronData[name, "FaceIndices"]]];
Wolfram Language code: PolyhedronMesh["Cuboctahedron"]

Gather the faces with different numbers of vertices:

Wolfram Language code: ColoredPolyhedron[name_String] := Module[{bmr = PolyhedronMesh[name], fl}, fl = GatherBy[MeshCells[bmr, 2], Length[First[#]]&]; BoundaryMeshRegion[MeshCoordinates[bmr], Table[Style[fl[[i]], ColorData[100, i]], {i, Length[fl]}]] ]

Color the Archimedean polyhedra:

Wolfram Language code: ColoredPolyhedron /@ PolyhedronData["Archimedean"]
