MeshQualityGoal

MeshQualityGoal

is an option for DiscretizeRegion and related functions that specifies a mesh cell quality goal for the result.

Details

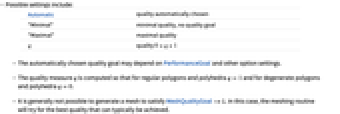

  • Possible settings include:
  • Automaticquality automatically chosen
    "Minimal"minimal quality, no quality goal
    "Maximal"maximal quality
    qquality
  • The automatically chosen quality goal may depend on PerformanceGoal and other option settings.
  • The quality measure is computed so that for regular polygons and polyhedra and for degenerate polygons and polyhedra .
  • It is generally not possible to generate a mesh to satisfy MeshQualityGoal->1. In this case, the meshing routine will try for the best quality that can typically be achieved.

Examples

open all close all

Basic Examples  (1)

Triangulate an octagon with a minimal number of triangles:

Wolfram Language code: octo = BoundaryMeshRegion[{{-1, -2}, {1, -2}, {2, -1}, {2, 1}, {1, 2}, {-1, 2}, {-2, 1}, {-2, -1}}, Line[{1, 2, 3, 4, 5, 6, 7, 8, 1}]]
Wolfram Language code: TriangulateMesh[octo, MeshQualityGoal -> "Minimal"]

Triangulate with more regular triangles:

Wolfram Language code: TriangulateMesh[octo, MeshQualityGoal -> 1, MaxCellMeasure -> 10]

Scope  (2)

Triangulate an octagon with the "Minimal" and "Maximal" number of triangles:

Wolfram Language code: octo = BoundaryMeshRegion[{{-1, -2}, {1, -2}, {2, -1}, {2, 1}, {1, 2}, {-1, 2}, {-2, 1}, {-2, -1}}, Line[{1, 2, 3, 4, 5, 6, 7, 8, 1}]]
Wolfram Language code: Table[TriangulateMesh[octo, MeshQualityGoal -> q], {q, {"Minimal", "Maximal"}}]

Triangulate with more regular triangles, but no measure constraint:

Wolfram Language code: TriangulateMesh[octo, MeshQualityGoal -> 1, MaxCellMeasure -> 10]

Specify a numeric quality goal:

Wolfram Language code: Table[DiscretizeRegion[ImplicitRegion[x ^ 2 - y ^ 2 ≤ 1, {{x, -3, 3}, {y, -3, 3}}], MeshQualityGoal -> q, MaxCellMeasure -> 10], {q, {0.1, 0.5, 0.9}}]
