MinimalStateSpaceModel

MinimalStateSpaceModel[sys]

gives the minimal state-space model of the state-space model sys.

MinimalStateSpaceModel[sys,{z1,…}]

specifies the new coordinates zi.

Details and Options

  • The minimal state-space model is both controllable and observable, and has the minimal number of states.
  • The system sys can be a standard or descriptor StateSpaceModel or AffineStateSpaceModel.

Examples

open all close all

Basic Examples  (1)

Compute a minimal realization:

Wolfram Language code: MinimalStateSpaceModel[StateSpaceModel[{{{Subscript[a, 1], 0, 0}, {0, Subscript[a, 2], 0}, {0, 0, Subscript[a, 3]}}, {{Subscript[b, 1]}, {Subscript[b, 2]}, {0}}, {{Subscript[c, 1], 0, Subscript[c, 3]}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Scope  (6)

Obtain a model with the minimal number of states:

Wolfram Language code: MinimalStateSpaceModel[StateSpaceModel[{{{1/2, 3/2}, {-5/2, -7/2}}, {{-1}, {3}}, {{1/2, 1/2}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

A minimal realization of a symbolic model:

Wolfram Language code: MinimalStateSpaceModel[StateSpaceModel[{{{0, 1, 0}, {0, 0, 1}, {0, (-Subscript[p, 2])* Subscript[p, 3], -Subscript[p, 2] - Subscript[p, 3]}}, {{0}, {0}, {1}}, {{0, Subscript[z, 2], 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

A minimal realization does not contain uncontrollable modes:

Wolfram Language code: MinimalStateSpaceModel[StateSpaceModel[{{{-1, 0, 0}, {0, -2, 0}, {0, 0, -3}}, {{1}, {0}, {1}}, {{1, 1, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

A minimal realization does not contain unobservable modes:

Wolfram Language code: MinimalStateSpaceModel[StateSpaceModel[{{{-1, 0, 0}, {0, -2, 0}, {0, 0, -3}}, {{1}, {1}, {1}}, {{1, 0, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

The minimal realization of a descriptor system:

Wolfram Language code: MinimalStateSpaceModel[StateSpaceModel[{{{-1, 0, 0, 0}, {0, -1, 0, 0}, {0, 0, -1, 0}, {0, 0, 0, -5}}, {{0}, {1}, {0}, {1}}, {{1, -14, 97, -512}}, {{0}}, {{0, -1, 0, 0}, {0, 0, 0, 0}, {0, 0, 0, 0}, {0, 0, 0, 1}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

The minimal realization of an affine system:

Wolfram Language code: asys = AffineStateSpaceModel[{{-Subscript[x, 1]/(1 + Subscript[x, 3]), (-(1 + Subscript[x, 3])^(-1))* (Subscript[x, 1]*Subscript[x, 3] + Subscript[x, 2]* (1 + Subscript[x, 3])), -Subscript[x, 3]}, {{(1 + Subscript[x, 3])^(-1)}, {-1 - (1 + Subscript[x, 3])^(-1)}, {0}}, {Subscript[x, 3] + Subscript[x, 1]*(1 + Subscript[x, 3])}, {{0}}}, {Subscript[x, 1], Subscript[x, 2], Subscript[x, 3]}, Automatic, {Automatic}, Automatic, SamplingPeriod -> None];
Wolfram Language code: MinimalStateSpaceModel[asys]

Specify the new variable:

Wolfram Language code: MinimalStateSpaceModel[asys, {Subscript[z, 1]}]

Applications  (2)

Remove any uncontrollable or unobservable modes:

Wolfram Language code: MinimalStateSpaceModel[StateSpaceModel[{{{-1, 0, 0, 0}, {0, -2, 0, 0}, {0, 0, -3, 0}, {0, 0, 0, -4}}, {{1}, {0}, {1}, {2}}, {{1, 1, 0, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

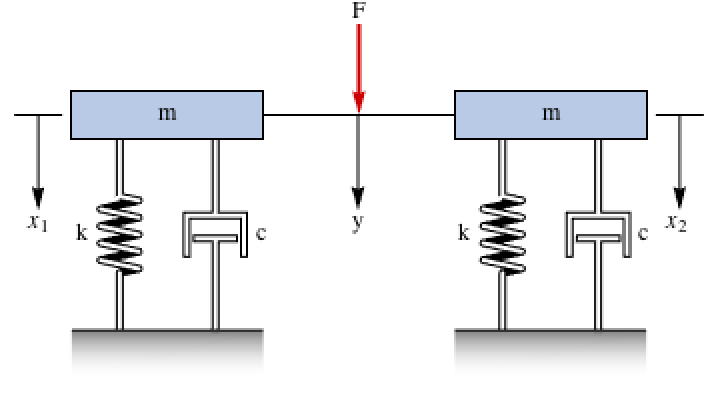

A parallel mass-spring-damper system is not completely controllable and observable. Design a controller based on the minimal system:

A model of the system:

Wolfram Language code: pars = {m -> 1, g -> 9.8, k -> 64, c -> 4};
Wolfram Language code: ssm = StateSpaceModel[{{{0, 1, 0, 0}, {-k/m, -c/m, 0, 0}, {0, 0, 0, 1}, {0, 0, -k/m, -c/m}}, {{0}, {1/(2*m)}, {0}, {1/(2*m)}}, {{1/2, 0, 1/2, 0}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> {{F}, {y}, {Subscript[x, 1], Subscript[OverDot[x], 1], Subscript[x, 2], Subscript[OverDot[x], 2]}}];

Compute the minimal model:

Wolfram Language code: Subscript[ssm, m] = MinimalStateSpaceModel[ssm]

Design a controller based on the minimal system:

Wolfram Language code: κ = StateFeedbackGains[Subscript[ssm, m], {-4 - 2 I, -4 + 2 I}]; ℓ = EstimatorGains[Subscript[ssm, m], {-6, -8}];
Wolfram Language code: 𝒸 = EstimatorRegulator[Subscript[ssm, m], {ℓ, κ}, "Data"]

The closed-loop system:

Wolfram Language code: csys = 𝒸[{"ClosedLoopSystem", <|"InputModel" -> ssm|>}] /. pars

Simulate the response of the closed-loop system and compare it with the open-loop system:

Wolfram Language code: orc = OutputResponse[{csys, {0.1, 0, -0.3, 0, 0, 0}}, 0, {t, 0, 10}]; or = OutputResponse[{ssm /. pars, {0.1, 0, -0.3, 0}}, 0, {t, 0, 10}];
Wolfram Language code: Plot[{or, orc}, {t, 0, 4}, PlotRange -> All, PlotLegends -> {"open-loop response", "closed-loop response"}]

Properties & Relations  (4)

MinimalStateSpaceModel computes the subspace that is both controllable and observable:

Wolfram Language code: ssm = StateSpaceModel[{{{Subscript[a, 1], 0, 0}, {0, Subscript[a, 2], 0}, {0, 0, Subscript[a, 3]}}, {{0, 0}, {Subscript[b, 1], 0}, {0, Subscript[b, 2]}}, {{Subscript[c, 1], 0, 0}, {0, 0, Subscript[c, 3]}}, {{Subscript[d, 11], Subscript[d, 12]}, {Subscript[d, 21], Subscript[d, 22]}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {MinimalStateSpaceModel[ssm], Last[ObservableDecomposition[Last[ControllableDecomposition[ssm]]]]}

A minimal realization is both controllable and observable:

Wolfram Language code: msys = MinimalStateSpaceModel[StateSpaceModel[{{{1, 1, 0, 0}, {0, 1, 0, 1}, {0, 1, 1, 0}, {0, 0, 0, 1}}, {{0, 1}, {1, 0}, {0, 1}, {0, 0}}, {{1, 1, 1, 0}}, {{0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]];
Wolfram Language code: {ControllableModelQ[msys], ObservableModelQ[msys]}

Minimal realizations are not unique:

Wolfram Language code: ssm = StateSpaceModel[{{{-1, 0}, {0, -1}}, {{1, 0}, {0, 1}}, {{1, 1}, {1, 1}}, {{0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: {Subscript[ssm, m1] = MinimalStateSpaceModel[ssm], Subscript[ssm, m2] = StateSpaceTransform[Subscript[ssm, m1], {{(-1/2)}}]}

Both are minimal realizations of the same transfer function:

Wolfram Language code: Table[Simplify[TransferFunctionModel[ss]], {ss, {Subscript[ssm, m1], Subscript[ssm, m2]}}]

MinimalStateSpaceModel is equivalent to TransferFunctionCancel for scalar systems:

Wolfram Language code: tfm = TransferFunctionModel[{{{s*(1 + s)*(2 + s)}}, (2 + s)*(3 + s)*(4 + s)}, s];
Wolfram Language code: {TransferFunctionModel@MinimalStateSpaceModel@StateSpaceModel@tfm, TransferFunctionExpand@TransferFunctionCancel@tfm}
