MoleculePattern

MoleculePattern[{atom1,atom2,… }, { bond1,bond2,… }]

represents a molecule pattern with atoms atomi and bonds bondi for use in substructure searching.

MoleculePattern["smarts"]

represents a molecule pattern from the input SMARTS pattern.

Details and Options

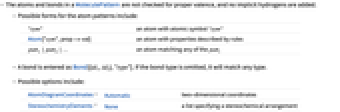

  • The atoms and bonds in a MoleculePattern are not checked for proper valence, and no implicit hydrogens are added.
  • Possible forms for the atom patterns include:
  • "sym"an atom with atomic symbol "sym"
    Atom["sym",prop->val]an atom with properties described by rules
    patt1|patt2|…an atom matching any of the patti
  • A bond is entered as Bond[{id1,id2},"type"]. If the bond type is omitted, it will match any type.
  • Possible options include:
  • AtomDiagramCoordinates Automatictwo-dimensional coordinates
    StereochemistryElements Nonea list specifying a stereochemical arrangement

Examples

open all close all

Basic Examples  (3)

Define a pattern for sulfur-oxygen bonds:

Wolfram Language code: sulfurOxygenBond = MoleculePattern[{"S", "O"}, {Bond[{1, 2}, "Single"]}]; m = Molecule["4-methylbenzenesulfonic acid"]

Use MoleculeContainsQ to verify the molecule matches the pattern:

Wolfram Language code: MoleculeContainsQ[m, sulfurOxygenBond]

Use the pattern in MoleculePlot to visualize:

Wolfram Language code: MoleculePlot[m, sulfurOxygenBond]

Find bonds between carbon and heavier atoms:

Wolfram Language code: bondPattern = MoleculePattern[ {Atom["AtomicNumber" -> GreaterThan[6]], "C"}, {Bond[{1, 2}]} ];
Wolfram Language code: m = Molecule[{Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["O"], Atom["C"], Atom["O"], Atom["N"], Atom["C"], Atom["C"], Atom["C"], Atom["N"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], A ... er" -> 4, "Direction" -> "Clockwise", "FiducialAtom" -> 3, "Ligands" -> {5, 9, 33}], Association["StereoType" -> "Tetrahedral", "ChiralCenter" -> 5, "Direction" -> "Counterclockwise", "FiducialAtom" -> 4, "Ligands" -> {6, 20, 34}]}];
Wolfram Language code: BondList[m, bondPattern]
Wolfram Language code: MoleculePlot[m, %]

Make a molecule pattern from part of a molecule:

Wolfram Language code: m = Molecule[{Atom["O"], Atom["C"], Atom["C"], Atom["C"], Atom["N"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["N"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["C"], Atom["O"], A ... "], Bond[{32, 62}, "Single"], Bond[{33, 63}, "Single"], Bond[{33, 64}, "Single"], Bond[{36, 65}, "Single"], Bond[{36, 66}, "Single"], Bond[{37, 67}, "Single"], Bond[{38, 68}, "Single"], Bond[{39, 69}, "Single"], Bond[{40, 70}, "Single"]}];
Wolfram Language code: patt = MoleculePattern[m, Range[12]];

Find this pattern in the parent molecule:

Wolfram Language code: MoleculeSubstructureCases[m, patt, All, "AtomIndices"]

Visualize the pattern with MoleculePlot:

Wolfram Language code: MoleculePlot[m, Style[patt, RGBColor[0.5800000000000001, 0.6266666666666667, 2/3]]]

Options  (2)

AtomDiagramCoordinates  (1)

By default, diagram coordinates will be automatically generated:

Wolfram Language code: MoleculePlot[MoleculePattern["[#6]-[#6](-[#7]-[#6]-[#6])-[#6]"]]
Wolfram Language code: MoleculePlot[MoleculePattern["[#6]-[#6](-[#7]-[#6]-[#6])-[#6]", AtomDiagramCoordinates -> {{-0.07, 0.34}, {0.24, -0.61}, {-0.43, -1.36}, {-1.41, -1.15}, {-1.72, -0.2}, {1.22, -0.82}}]]

StereochemistryElements  (1)

Create a molecule pattern with defined stereo:

Wolfram Language code: patt = MoleculePattern[{Atom["C", Rule["HydrogenCount", 1]], "Cl", "Br", "I"}, {Bond[{1, 2}, "Single"], Bond[{1, 3}, "Single"], Bond[{1, 4}, "Single"]}, StereochemistryElements -> {<|"StereoType" -> "Tetrahedral", "ChiralCenter" -> 1, "Direction" -> "Clockwise"|>}]

Select the enantiomer that matches the pattern:

Wolfram Language code: Select[{Molecule[{"Cl", Atom["C", "HydrogenCount" -> 1], "Br", "I"}, {Bond[{1, 2}, "Single"], Bond[{2, 3}, "Single"], Bond[{2, 4}, "Single"]}, {StereochemistryElements -> {Association["StereoType" -> "Tetrahedral", "ChiralCenter" -> 2, "Direction" -> "Counterclockwise"]}}], Molecule[{"Cl", Atom["C", "HydrogenCount" -> 1], "I", "Br"}, {Bond[{1, 2}, "Single"], Bond[{2, 3}, "Single"], Bond[{2, 4}, "Single"]}, {StereochemistryElements -> {Association["StereoType" -> "Tetrahedral", "ChiralCenter" -> 2, "Direction" -> "Counterclockwise"]}}]}, MoleculeMatchQ[patt]]

Properties & Relations  (1)

An invalid molecule pattern can be detected with MoleculePatternQ:

Wolfram Language code: MoleculePatternQ@MoleculePattern["[#6]-[#6](-[#7]-[#6]-[#6])-[#6"]

Fixing the string creates a valid pattern:

Wolfram Language code: MoleculePatternQ@MoleculePattern["[#6]-[#6](-[#7]-[#6]-[#6])-[#6]"]
