PatternReaction[reactantsproducts]

represents a templated reaction between molecule patterns in reactants and products.

PatternReaction[reactantsproducts,mapping]

represents a reaction with a specified mapping between atoms in reactants and products.

PatternReaction["smarts"]

represents a reaction defined by the given reaction SMARTS string.

Details
Details and Options Details and Options
Examples
Basic Examples
See Also
Related Guides
History
Cite this Page

PatternReaction

PatternReaction[reactantsproducts]

represents a templated reaction between molecule patterns in reactants and products.

PatternReaction[reactantsproducts,mapping]

represents a reaction with a specified mapping between atoms in reactants and products.

PatternReaction["smarts"]

represents a reaction defined by the given reaction SMARTS string.

Details

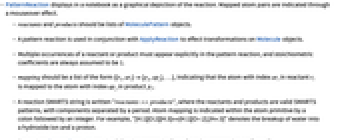

  • PatternReaction displays in a notebook as a graphical depiction of the reaction. Mapped atom pairs are indicated through a mouseover effect.
  • reactants and products should be lists of MoleculePattern objects.
  • A pattern reaction is used in conjunction with ApplyReaction to effect transformations on Molecule objects.
  • Multiple occurrences of a reactant or product must appear explicitly in the pattern reaction, and stoichiometric coefficients are always assumed to be 1.
  • mapping should be a list of the form {{ri,ari}{pj,apj},…}, indicating that the atom with index ari in reactant ri is mapped to the atom with index apj in product pj.
  • A reaction SMARTS string is written "reactants>>products", where the reactants and products are valid SMARTS patterns, with components separated by a period. Atom mapping is indicated within the atom primitive by a colon followed by an integer. For example, "[H:1][O:2][H:3]>>[H:1][O-:2].[H+:3]" denotes the breakup of water into a hydroxide ion and a proton.

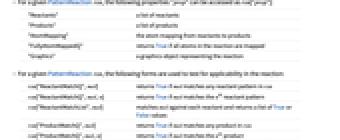

  • For a given PatternReaction rxn, the following properties "prop" can be accessed as rxn["prop"]:
  • "Reactants"a list of reactants
    "Products"a list of products
    "AtomMapping"the atom mapping from reactants to products
    "FullyAtomMappedQ"returns True if all atoms in the reaction are mapped
    "Graphics"a graphics object representing the reaction
  • For a given PatternReaction rxn, the following forms are used to test for applicability in the reaction:
  • rxn["ReactantMatchQ",mol]returns True if mol matches any reactant pattern in rxn
    rxn["ReactantMatchQ",mol,n]returns True if mol matches the n^(th) reactant pattern
    rxn["ReactantMatchList",mol]matches mol against each reactant and returns a list of True or False values
    rxn["ProductMatchQ",mol]returns True if mol matches any product in rxn
    rxn["ProductMatchQ",mol,n]returns True if mol matches the n^(th) product
    rxn["ProductMatchList",mol]matches mol against each product and returns a list of True or False values
  • PatternReaction is treated as a raw object by functions such as AtomQ.

Examples

Basic Examples  (3)

Define a pattern reaction for the dissociation of molecular sodium chloride:

Wolfram Language code: PatternReaction[{MoleculePattern[{"Na", "Cl"}, {Bond[{1, 2}, "Single"]}]} -> {MoleculePattern[{Atom["Na", "FormalCharge" -> 1]}], MoleculePattern[{Atom["Cl", "FormalCharge" -> -1]}]}, {{1, 1} -> {1, 1}, {1, 2} -> {2, 1}}]

Define the same reaction using a SMARTS string:

Wolfram Language code: PatternReaction["[Na:1][Cl:2]>>[Na+:1].[Cl-:2]"]

Define a pattern reaction for the dissociation of hydrochloric acid in water:

Wolfram Language code: PatternReaction[{MoleculePattern[{"H", "Cl"}, {Bond[{1, 2}, "Single"]}], MoleculePattern[{"H", "O", "H"}, {Bond[{1, 2}, "Single"], Bond[{2, 3}, "Single"]}]} -> {MoleculePattern[{Atom["Cl", "FormalCharge" -> -1]}], MoleculePattern[{"H", Atom["O", "FormalCharge" -> 1], "H", "H"}, {Bond[{1, 2}, "Single"], Bond[{2, 3}, "Single"], Bond[{2, 4}, "Single"]}]}, {{1, 1} -> {2, 4}, {1, 2} -> {1, 1}, {2, 1} -> {2, 1}, {2, 2} -> {2, 2}, {2, 3} -> {2, 3}}]

Apply the reaction to an acid and an alcohol:

Wolfram Language code: ApplyReaction[%, {Entity["Chemical", "HydrogenChloride"], Entity["Chemical", "Water"]}]

Define a pattern reaction for an intermolecular esterification:

Wolfram Language code: PatternReaction[{MoleculePattern[{"C", "O", "O"}, {Bond[{1, 2}, "Double"], Bond[{1, 3}, "Single"]}], MoleculePattern[{"C", "O"}, {Bond[{1, 2}, "Single"]}]} -> {MoleculePattern[{"C", "O", "O", "C"}, {Bond[{1, 2}, "Double"], Bond[{1, 3}, "Single"], Bond[{3, 4}, "Single"]}], MoleculePattern[{"O"}, {}]}, {{1, 1} -> {1, 1}, {1, 2} -> {1, 2}, {1, 3} -> {2, 1}, {2, 1} -> {1, 4}, {2, 2} -> {1, 3}}]

Apply the reaction to an acid and an alcohol:

Wolfram Language code: ApplyReaction[%, {Entity["Chemical", "AceticAcid"], Entity["Chemical", "Ethanol"]}]
