is an option to NyquistPlot that specifies contours of constant magnitude and phase of a closed-loop system.
NyquistGridLines
is an option to NyquistPlot that specifies contours of constant magnitude and phase of a closed-loop system.
Details

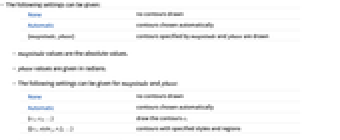

- The following settings can be given:
-
None no contours drawn Automatic contours chosen automatically {magnitude,phase} contours specified by magnitude and phase are drawn - magnitude values are the absolute values.
- phase values are given in radians.
- The following settings can be given for magnitude and phase:
-
None no contours drawn Automatic contours chosen automatically {c1,c2,…} draw the contours ci {{c1,style1,r1},…} contours with specified styles and regions - The default setting for stylei is Dashed for magnitude contours and Dotted for phase contours.
- The setting
specifies that a point should be included if
yields True. - The default value of
is True&.
Examples
open all close allBasic Examples (1)
Scope (9)
Choose contours automatically:
NyquistPlot[TransferFunctionModel[{{{s}}, 3 + 3*s + s^2}, s], NyquistGridLines -> Automatic]Show the specified magnitude and phase contours:
NyquistPlot[TransferFunctionModel[{{{s}}, 3 + 3*s + s^2}, s], NyquistGridLines -> {{0.1, 0.15, 0.2, 0.25}, {-1, -0.3, 0.3, 1}}]NyquistPlot[TransferFunctionModel[{{{s}}, 3 + 3*s + s^2}, s], NyquistGridLines -> {{0.1, {0.15, Green}, {0.2, Yellow}, {0.25, Red}}, {{-1, Directive[Dotted, Red]}, {-0.3}, 0.3, {1, Directive[Dotted, Red]}}}]NyquistPlot[TransferFunctionModel[{{{s}}, 3 + 3*s + s^2}, s], NyquistGridLines -> {{0.1, {0.15, Green}, {0.2, Yellow}, {0.25, Red}}, {{-1, Directive[Dotted, Red], #1^2 + #2^2 > 0.1^2&}, {-0.3, Automatic, #1^2 + #2^2 > 0.25^2&}, {0.3, Automatic, #1^2 + #2^2 > 0.25^2&}, {1, Directive[Dotted, Red], #1^2 + #2^2 > 0.1^2&}}}]Specify contours with magnitude -12 dB, -13 dB, -15 dB, and -18 dB:
NyquistPlot[TransferFunctionModel[{{{s}}, 3 + 3*s + s^2}, s], NyquistGridLines -> {10^(#/20)& /@ {-12, -13, -15, -18}, None}]Specify contours with phase from -60 to 60 degrees in increments of 10:
NyquistPlot[TransferFunctionModel[{{{s}}, 3 + 3*s + s^2}, s], NyquistGridLines -> {None, Range[-60, 60, 10] Degree, RegionFunction -> (True&)}]The contours depend on the feedback type:
GraphicsRow@Table[NyquistPlot[TransferFunctionModel[{{{s}}, 3 + 3*s + s^2}, s], NyquistGridLines -> Automatic, FeedbackType -> f, PlotLabel -> Style["Feedback Type: " <> ToString@f, Italic]], {f, {"Negative", "Positive", None}}]The contours are shown only in the finite regions:
NyquistPlot[TransferFunctionModel[{{{3*(4 + s)}}, 4 + s^2}, s], PlotRange -> 10, NyquistGridLines -> Automatic]NyquistPlot[TransferFunctionModel[{{{-1 + z}}, 1 - 3*z + z^2},
