PrincipalComponents

PrincipalComponents[matrix]

transforms elements of matrix into unscaled principal components.

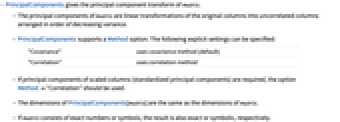

Details and Options

  • PrincipalComponents gives the principal component transform of matrix.
  • The principal components of matrix are linear transformations of the original columns into uncorrelated columns arranged in order of decreasing variance.
  • PrincipalComponents supports a Method option. The following explicit settings can be specified:
  • "Covariance"uses covariance method (default)
    "Correlation"uses correlation method
  • If principal components of scaled columns (standardized principal components) are required, the option Method"Correlation" should be used.
  • The dimensions of PrincipalComponents[matrix] are the same as the dimensions of matrix.
  • If matrix consists of exact numbers or symbols, the result is also exact or symbolic, respectively.

Examples

open all close all

Basic Examples  (1)

Principal components of two datasets, treated as the columns of a matrix:

Wolfram Language code: PrincipalComponents[N[{{1, 2}, {2, 3}, {4, 10}}]]

Scope  (3)

Principal components computed with arbitrary-precision numbers:

Wolfram Language code: PrincipalComponents[{{1`20, 2`20}, {3`20, 5`20}, {5`20, 6`20}}]

Principal components of exact numbers:

Wolfram Language code: PrincipalComponents[{{1, 3}, {3, 5}, {4, 5}}]//Simplify

Principal components computation involving symbolic expressions:

Wolfram Language code: PrincipalComponents[{{a, 1}, {2, a - 1}}]//FullSimplify

Options  (1)

Method  (1)

Principal components using correlation scaling:

Wolfram Language code: PrincipalComponents[{{1., 2., -1.}, {2., 3., 2.}, {4., 10., 9.}, {4., 5., 6.}}, Method -> "Correlation"]

Properties & Relations  (2)

The principal component columns are ordered by decreasing variance:

Wolfram Language code: data = {{13.2, 200, 58, 21.2}, {10, 263, 48, 44.5}, {8.1, 294, 80, 31}, {8.8, 190, 50, 19.5}, {9, 276, 91, 40.6}, {7.9, 204, 78, 38.7}, {3.3, 110, 77, 11.1}, {5.9, 238, 72, 15.8}, {15.4, 335, 80, 31.9}, {17.4, 211, 60, 25.8}};
Wolfram Language code: Variance[pc = PrincipalComponents[data]]

The mean of each principal component column is zero:

Wolfram Language code: Mean[pc] // Chop

The principal component columns are not correlated:

Wolfram Language code: Correlation[pc]//Chop

The setting Method->"Correlation" yields the same results as standardizing the input matrix:

Wolfram Language code: PrincipalComponents[{{1., 2., -1.}, {2., 3., 2.}, {4., 10., 9.}}, Method -> "Correlation"] == PrincipalComponents[Standardize[{{1., 2., -1.}, {2., 3., 2.}, {4., 10., 9.}}]]

Possible Issues  (1)

For certain symbolic matrices the result may be very large:

Wolfram Language code: PrincipalComponents[{{a, 1}, {1, b}, {2, c}}] // LeafCount

Neat Examples  (1)

Align the principal axis of a two-dimensional shape with the horizontal axis:

Wolfram Language code: shape = Position[ImageData@[image], 1, {2}]; ListPlot[PrincipalComponents[N@shape]]
