SingularValueList

SingularValueList[m]

gives a list of the nonzero singular values of a matrix m.

SingularValueList[{m,a}]

gives the generalized singular values of m with respect to a.

SingularValueList[m,k]

gives the k largest singular values of m.

SingularValueList[{m,a},k]

gives the k largest generalized singular values of m.

Details and Options

Singular values are sorted from largest to smallest.
Repeated singular values appear with their appropriate multiplicity.
By default, singular values are kept only when they are larger than 100 times 10^-p, where p is Precision[m].
SingularValueList[m,Tolerance->t] keeps only singular values that are at least t times the largest singular value.
SingularValueList[m,Tolerance->0] returns all singular values.
The matrix m can be rectangular; the total number of singular values is always Min[Dimensions[m]].
Exact and symbolic matrices can be used, with zero tolerance assumed by default.
The singular values can be obtained from Sqrt[Eigenvalues[ConjugateTranspose[m].m]].

Examples

open all close all

Basic Examples (2)

Compute the singular values of an invertible matrix:

Wolfram Language code:

SingularValueList[(|   |   |
| - | - |
| 1 | 2 |
| 3 | 4 |)]

Compute the nonzero singular values of a singular matrix:

Wolfram Language code:

SingularValueList[(⁠|   |   |   |
| - | - | - |
| 1 | 2 | 3 |
| 4 | 5 | 6 |
| 7 | 8 | 9 |⁠)]

There are only two, rather than three, because that is the rank of the matrix:

Wolfram Language code:

MatrixRank[(⁠|   |   |   |
| - | - | - |
| 1 | 2 | 3 |
| 4 | 5 | 6 |
| 7 | 8 | 9 |⁠)]

Scope (19)

Basic Uses (7)

Find the nonzero singular values of a machine-precision matrix:

Wolfram Language code:

SingularValueList[(⁠|     |     |     |
| --- | --- | --- |
| 1.1 | 1.3 | 2.1 |
| 2.2 | 2.2 | 3.3 |
| 3.3 | -3  | 4.7 |⁠)]

Singular values of a complex matrix:

Wolfram Language code:

SingularValueList[(⁠|             |             |
| ----------- | ----------- |
| 0.5 + 0.5 I | 1.1         |
| -I          | 3.2 - 4.5 I |⁠)]

Singular values for an exact matrix:

Wolfram Language code: SingularValueList[{{1, 2}, {3, 4}}]

Singular values for an arbitrary-precision matrix:

Wolfram Language code: SingularValueList[MatrixExp[RandomReal[1, {2, 2}, WorkingPrecision -> 20]]]

Singular values of a symbolic matrix:

Wolfram Language code:

FullSimplify[SingularValueList[(⁠|   |   |
| - | - |
| a | b |
| c | d |⁠)], {a, b, c, d}∈ℝ]

The singular values of large numerical matrices are computed efficiently:

Wolfram Language code: m = RandomReal[{1, 9}, {1000, 1000}];

Wolfram Language code: AbsoluteTiming[SingularValueList[m];]

Singular values of a non-square matrix:

Wolfram Language code:

SingularValueList[(⁠|   |   |    |   |
| - | - | -- | - |
| 3 | 2 | 2  | 7 |
| 9 | 3 | -2 | 1 |⁠)]

Subsets of Singular Values (5)

Find the three largest singular values:

Wolfram Language code:

m = (⁠|     |     |      |       |        |
| --- | --- | ---- | ----- | ------ |
| 0.5 | 0.5 | 0.5  | 0     | 0      |
| 1.  | 2.  | 4.   | 8.    | 0      |
| 1.5 | 4.5 | 13.5 | 40.5  | 121.5  |
| 0   | 8.  | 32.  | 128.  | 512.   |
| 0   | 0   | 62.5 | 312.5 | 1562.5 |⁠);
SingularValueList[m, 3]

And the three smallest singular values:

Wolfram Language code: SingularValueList[m, -3]

Find the four largest singular values, including zero values, or as many as there are if fewer:

Wolfram Language code:

SingularValueList[(⁠|     |     |     |
| --- | --- | --- |
| 0.5 | 1.  | 1.5 |
| 2.  | 2.5 | 3.  |
| 3.5 | 4.  | 4.5 |⁠), UpTo[4]]

Zero singular values are included when computing the smallest singular values:

Wolfram Language code:

SingularValueList[(⁠|     |     |     |
| --- | --- | --- |
| 0.5 | 1.  | 1.5 |
| 2.  | 2.5 | 3.  |
| 3.5 | 4.  | 4.5 |⁠), -2]

Repeated singular values are listed multiple times:

Wolfram Language code: SingularValueList[{{2, 0, 0}, {0, 2, 0}, {0, 0, 2}}]

Repeated singular values are counted separately when extracting a subset of the singular values:

Wolfram Language code: mat = {{(7/2), 0, (1/2), 0}, {0, 3, 0, 1}, {(1/2), 0, (7/2), 0}, {0, 1, 0, 3}};

Wolfram Language code: SingularValueList[mat]

Wolfram Language code: SingularValueList[mat, 3]

Wolfram Language code: SingularValueList[mat, -3]

Generalized Singular Values (3)

Generalized machine-precision singular values:

Wolfram Language code:

m = {{1.5, 1.3}, {3.1, 2.2}};
a = {{1.1, 5.1}, {4.2, 3.4}};
SingularValueList[{m, a}]

Find the two smallest generalized singular values:

Wolfram Language code:

a = (⁠|     |     |     |
| --- | --- | --- |
| 1.  | 1.5 | 2.  |
| 3.1 | 2.  | 2.9 |
| 3.  | 2.  | 1.  |⁠);b = (⁠|     |     |     |
| --- | --- | --- |
| 1.3 | 0.5 | 1.1 |
| 0.  | 1.5 | 2.3 |
| 1.  | 0.  | 1.  |⁠);

Wolfram Language code: SingularValueList[{a, b}, -2]

Find the generalized singular values of a machine-precision complex matrix:

Wolfram Language code:

m = (⁠|                                          |                                          |
| ---------------------------------------- | ---------------------------------------- |
| 4.641175490606916 + 7.207263282382337 I  | 2.522671922520866 + 8.989217121399136 I  |
| 4.114478069008367 + 7.010706036954508 I  | 8.95961276370625 + 3.569738897382109 I   |
| 4.405169936758572 + 4.4509297530197465 I | 9.145107926643146 + 6.3767022076415465 I |⁠);

Wolfram Language code:

a = (⁠|                                         |                                          |
| --------------------------------------- | ---------------------------------------- |
| 7.341517476299638 + 9.810565178638917 I | 8.24181899398409 + 3.4570598473462972 I  |
| 7.775955216608212 + 1.68269060515731 I  | 3.944961113408187 + 1.4889990223210265 I |
| 6.431377195364613 + 6.245150387114993 I | 7.026661544586792 + 1.0790173484547747 I |⁠);

Wolfram Language code: SingularValueList[{m, a}]

Special Matrices (4)

Singular values of sparse matrices:

Wolfram Language code: SparseArray[{{1, 3} -> 2, {2, 2} -> 3, {3, 1} -> 1, {4, 2} -> 5}, {4, 4}]

Wolfram Language code: SingularValueList[%]

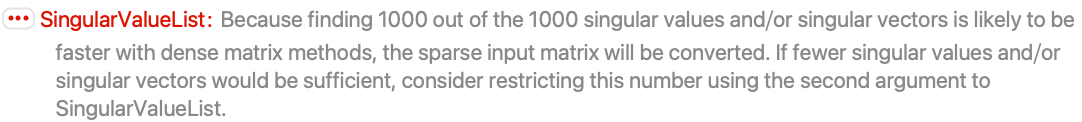

Find the three largest singular values:

Wolfram Language code: SparseArray[{{x_, y_} /; Abs[x - y] < 3 -> 1}, {150, 150}]

Wolfram Language code: SingularValueList[%, 3]//FullSimplify

Singular values of structured matrices:

Wolfram Language code: SymmetrizedArray[{{1, 1} -> 2, {1, 2} -> 1}, {2, 2}, Symmetric[All]]

Wolfram Language code: SingularValueList[%]

Use a different structure:

Wolfram Language code: QuantityArray[{{1, 2}, {3, 4}}, {"Meters", "Meters"}]

The units go with the singular values:

Wolfram Language code: SingularValueList[%]

IdentityMatrix always has all-one singular values:

Wolfram Language code: SingularValueList[IdentityMatrix[12]]

Singular values of HilbertMatrix:

Wolfram Language code: SingularValueList[HilbertMatrix[5]]//FullSimplify

Options (2)

Tolerance (2)

Compute the singular values larger than of the largest singular value:

Wolfram Language code: m = N[HilbertMatrix[10]];

Wolfram Language code: {Subscript[σ, 1]} = SingularValueList[m, 1];

Wolfram Language code: Select[SingularValueList[m], # > 0.1 Subscript[σ, 1]&]

Setting Tolerance to will directly compute the same set of singular values:

Wolfram Language code: SingularValueList[m, Tolerance -> 0.1]

m is a 16×16 Hilbert matrix:

Wolfram Language code: m = HilbertMatrix[16];

The matrix is positive definite, so with exact arithmetic there are 16 nonzero singular values:

Wolfram Language code: Length[SingularValueList[m]]

Many of the singular values are too small to show up at machine precision:

Wolfram Language code: Length[SingularValueList[N[m]]]

Setting the tolerance to zero will make them all show up:

Wolfram Language code: SingularValueList[N[m], Tolerance -> 0]

Because of numerical roundoff, the values are not computed accurately:

Wolfram Language code: N[SingularValueList[m]]

Applications (4)

Find the maximum value of for the following matrix :

Wolfram Language code:

m = (⁠|                     |                     |                    |
| ------------------- | ------------------- | ------------------ |
| 0.6201924059167849  | 0.1642012623471385  | 0.9488900631268065 |
| 0.45081828391187817 | 0.23528005253744255 | 0.5556683503523119 |
| 0.6490685022331557  | 0.8994304255663148  | 0.4108954380673717 |⁠);

The maximum is equal to the largest singular value of :

Wolfram Language code: SingularValueList[m, 1]//First

Confirm the result using MaxValue:

Wolfram Language code: MaxValue[(Norm[m.x]/Norm[x]), x∈Vectors[3, Reals]]

Find the minimum value of subject to for the following matrix :

Wolfram Language code:

m = (⁠|                    |                    |                     |
| ------------------ | ------------------ | ------------------- |
| 0.61               | 0.6596700568069829 | 0.21806383036829602 |
| 0.9065034103282616 | 0.32               | 0.39008198633165536 |
| 0.9749976665586482 | 0.5298619922699106 | 0.7332553638224806  |⁠);

Because the matrix has at least as many rows as columns, the minimum is the smallest singular value of :

Wolfram Language code: SingularValueList[m, -1]//First

Confirm the result using MinValue:

Wolfram Language code: MinValue[Norm[m.x], x∈Sphere[]]

The operator norm of a matrix, also called the spectral norm or 2-norm, is defined as the maximum value of subject to the constraint that . Find the operator norm of the following :

Wolfram Language code:

m = (|   |   |   |   |
| - | - | - | - |
| 1 | 2 | 3 | 4 |
| 5 | 6 | 7 | 8 |);

The maximum of , and thus the norm, is the largest singular value of :

Wolfram Language code: SingularValueList[m, 1]//First

Verify the result using Norm:

Wolfram Language code: % == Norm[m]

Use the singular values of to compute its norm, the norm of and the condition number of the matrices:

Wolfram Language code:

m = (⁠|                     |                    |                     |                     |                     |
| ------------------- | ------------------ | ------------------- | ------------------- | ------------------- |
| 0.5586541141266836  | 0.4836196860997566 | 0.43001371472761707 | 0.15584341399194623 | 0.5776446005074791  |
| 0.03069348146554618 | 0.5690912070366865 | 0.9683326899888793  | 0.580               | 0.5052068378482946  |
| 0.6553340778639707  | 0.3059598694903798 | 0.3931179458877401  | 0.5208999887331609  | 0.27321537200542423 |
| 0.03595071365286251 | 0.9210532614194069 | 0.9985000839819722  | 0.41170277644341935 | 0.3839108065740755  |
| 0.5809025186735828  | 0.6117636142636071 | 0.11827188288474355 | 0.31845314947311976 | 0.35583919578557843 |⁠);

Find the singular values of :

Wolfram Language code: sv = SingularValueList[m]

The 2-norm of a matrix is equal to the largest singular value:

Wolfram Language code: sv[[1]] == Norm[m, 2]

The 2-norm of the inverse is equal to the reciprocal of the smallest singular value:

Wolfram Language code: (1/sv[[-1]])

Verify using Norm:

Wolfram Language code: % == Norm[Inverse[m], 2]

The condition number is and thus equals the ratio of largest to smallest singular values:

Wolfram Language code: sv[[1]] / sv[[-1]]

Properties & Relations (11)

The nonzero singular values of are the square roots of the nonzero eigenvalues of :

Wolfram Language code: m = RandomInteger[{0, 9}, {7, 5}];

Wolfram Language code: SingularValueList[m] == DeleteCases[Sqrt[Eigenvalues[m.ConjugateTranspose[m]]], 0]//FullSimplify

Equivalently, they are the square roots of the nonzero eigenvalues of :

Wolfram Language code: SingularValueList[m] == DeleteCases[Sqrt[Eigenvalues[ConjugateTranspose[m].m]], 0]//FullSimplify

The complete set of singular values of is the square root of the eigenvalues of either or :

Wolfram Language code:

m = (⁠|   |    |    |
| - | -- | -- |
| 1 | 0  | 1  |
| 0 | 1  | -1 |
| 1 | 1  | 0  |
| 1 | -1 | 2  |⁠);

Wolfram Language code: SingularValueList[m, Tolerance -> 0]

The product that produces the smaller square matrix, in this case , should be used:

Wolfram Language code: % == Sqrt[Eigenvalues[ConjugateTranspose[m].m]]

The order that produces a larger square matrix has additional zero eigenvalues:

Wolfram Language code: Sqrt[Eigenvalues[m.ConjugateTranspose[m]]]

m and ConjugateTranspose[m] have the same singular values:

Wolfram Language code:

m = RandomComplex[1 + I, {5, 7}];
SingularValueList[m] == SingularValueList[ConjugateTranspose[m]]

The product of the singular values of a square matrix m equals Abs[Det[m]]:

Wolfram Language code:

m = RandomInteger[9, {5, 5}];
Abs[Det[m]] == Times@@SingularValueList[m, Tolerance -> 0]//FullSimplify

For a normal matrix n, the singular values equal Abs[Eigenvalues[n]]:

Wolfram Language code:

m = {{1, 2, -1}, {-1, 1, 2}, {2, -1, 1}};
NormalMatrixQ[m]

Wolfram Language code: SingularValueList[m] == Abs[Eigenvalues[m]]

MatrixRank[m] equals the number of nonzero singular values:

Wolfram Language code:

m = RandomInteger[1, {6, 6}];
MatrixRank[m] == Length[SingularValueList[m]]

The singular values of are the reciprocals of the singular values of in the opposite order:

Wolfram Language code:

m = RandomReal[1, {5, 5}];
SingularValueList[Inverse[m]] == Reverse[(1/SingularValueList[m])]

For a submatrix s of m, the largest singular value of m is greater than or equal to the singular values of s:

Wolfram Language code:

m = RandomReal[1, {5, 5}];
s = m[[RandomSample[Range[5], 3], RandomSample[Range[5], 4]]];

Wolfram Language code: First[SingularValueList[m, 1]] ≥ First[SingularValueList[s, 1]]

The generalized singular values of to equal the roots of the generalized eigenvalues of to :

Wolfram Language code:

m = RandomComplex[1 + I, {3, 3}];
a = RandomComplex[1 + I, {3, 3}];

Wolfram Language code: SingularValueList[{m, a}] == Sqrt[Eigenvalues[{ConjugateTranspose[m].m, ConjugateTranspose[a].a}]]

Unlike ordinary singular values, they are not related to the generalized eigenvalues of to :

Wolfram Language code: SingularValueList[{m, a}] == Sqrt[Eigenvalues[{m.ConjugateTranspose[m], a.ConjugateTranspose[a]}]]

The largest singular value of with respect to (with having independent columns) is $max_(TemplateBox[{x}, Norm]=1)TemplateBox[{{m, ., x}}, Norm]/TemplateBox[{{a, ., x}}, Norm]$ :

Wolfram Language code:

m = (⁠|      |      |      |
| ---- | ---- | ---- |
| 0.2  | 0.05 | 0.91 |
| 0.25 | 0.83 | 0.21 |
| 0.2  | 0.73 | 0.43 |⁠);a = (⁠|                    |      |      |
| ------------------ | ---- | ---- |
| 0.01               | 0.28 | 0.63 |
| 0.5700000000000001 | 0.25 | 0.63 |
| 0.8                | 0.19 | 0.13 |⁠);

Wolfram Language code: SingularValueList[{m, a}]

Wolfram Language code: MaxValue[(Norm[m.x]/Norm[a.x]), x∈Sphere[]]

Call the input that gave the maximum :

Wolfram Language code: v1 = ArgMax[(Norm[m.x]/Norm[a.x]), x∈Sphere[]];

The second singular value is the maximum of the ratio with the constraint that is -orthogonal to :

Wolfram Language code: MaxValue[{(Norm[m.x]/Norm[a.x]), x.a.a.v1 == 0}, x∈Sphere[]]

Each subsequent singular value is found by requiring to be -orthogonal to all the preceding inputs:

Wolfram Language code: v2 = ArgMax[{(Norm[m.x]/Norm[a.x]), x.a.a.v1 == 0}, x∈Sphere[]];

Wolfram Language code: MaxValue[{(Norm[m.x]/Norm[a.x]), x.a.a.v1 == 0 && x.a.a.v2 == 0}, x∈Sphere[]]

The generalized singular values of with respect to differ from those of with respect to :

Wolfram Language code:

m = RandomComplex[1 + I, {3, 3}];
a = RandomComplex[1 + I, {3, 3}];
SingularValueList[{m, a}] == SingularValueList[{ConjugateTranspose[m], ConjugateTranspose[a]}]

Possible Issues (1)

s is a large sparse matrix:

Wolfram Language code: s = SparseArray[{{i_, i_} -> 1. / i, {1, j_} -> 1.}, {1000, 1000}]

Computing all of the singular values uses dense linear algebra, which may be prohibitive:

Wolfram Language code: Short[SingularValueList[s]]//AbsoluteTiming

Computing just a few will typically be much faster:

Wolfram Language code: SingularValueList[s, 2]//AbsoluteTiming

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

SingularValueList

Details and Options

Examples

Basic Examples (2)

Scope (19)

Basic Uses (7)

Subsets of Singular Values (5)

Generalized Singular Values (3)

Special Matrices (4)

Options (2)

Tolerance (2)

Applications (4)

Properties & Relations (11)

Possible Issues (1)

Text

CMS

APA

BibTeX

BibLaTeX

SingularValueList

Details and Options

Examples

Basic Examples (2)

Scope (19)

Basic Uses (7)

Subsets of Singular Values (5)

Generalized Singular Values (3)

Special Matrices (4)

Options (2)

Tolerance (2)

Applications (4)

Properties & Relations (11)

Possible Issues (1)

See Also

Tech Notes

Related Guides

History

Text

CMS

APA

BibTeX

BibLaTeX
